Crowtail- Gesture 2.0

$7.90
Availability: In stock
SKU
CT010628G
Brand
elecrow
Weight
5g

Description

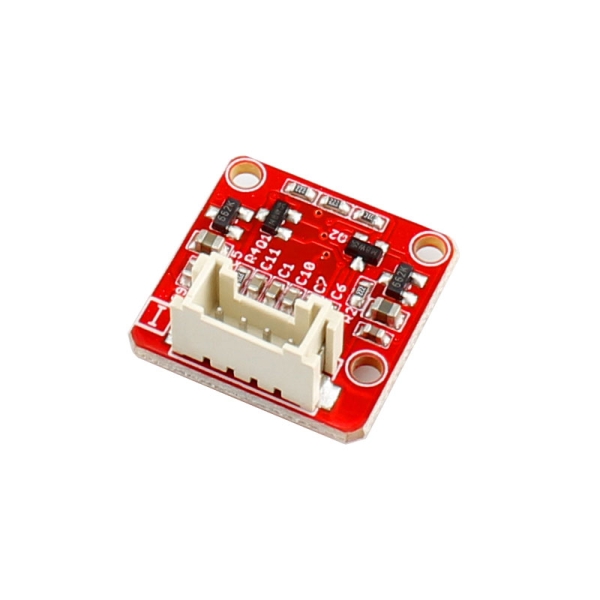

The sensor on Crowtail- Gesture is PAJ7620U2 that integrates gesture recognition function with general I2C interface into a single chip. It can recognize 9 basic gestures ,and these gestures information can be simply accessed via the I2C bus. Application: You can use Gesture as an input device to control another Cowtail, or a computer, mobile phone, smart car, robot, and more with a simple swipe of your hand.

Features

  • Built-in proximity detection

  • Various main boards support : Arduino UNO/Crowduino/Arduino Mega2560

Specifications

  • Power supply: 5V

  • Gesture speed in Normal Mode: 60°/s to 600°/s

  • Ambient light immunity: < 100k Lux

  • Gesture speed in Gaming Mode: 60°/s to 1200°/s

  • Interface type: IIC interface up to 400 kbit/s

  • Operating Temperature: -40°C to +85°C

  • Dimensions: 20 * 20mm

Package list

  • Crowtail- Gesture x 1

  • Crowtail cable x 1
