Elecrow Raspberry Pi Pico Advanced Kit with 32 Modules and 32 Projects Lessons

98 % of 100
Availability: In stock

【Raspberry Pi Pico Kit】 It is specially designed for people who are interested in Raspberry Pi and already have certain electronic knowledge and programming skills.

【Learn Micropython Course】Help you complete different practical projects through 32 Pi Pico projects, 32 modules and a smart car in the interesting Micropython course.

【Rich Modules】The Pi Pico kit includes 32 sensor modules, 1 smart car kit and 32 RPi Pico projects, and also provides usage tutorials.


This Raspberry Pi Pico advanced kit is designed for people who already have some electronics knowledge and programming skills and are interested in the Raspberry Pi. If you want to continue to strengthen your thinking, hands-on ability, and innovation ability, the Raspberry Pi Pico advanced kit will take you to create different scenarios and explore more applications.
The Raspberry Pi Pico Advanced Kit includes a Pi Pico based on the official RP2040 chip, 32 sensor modules, 1 smart car kit, and 32 Raspberry Pi Pico projects. With this kit, you can complete several interesting and practical projects.
In the process, the learners' thinking ability and creativity are continuously stimulated. In short, whether you are a student, teacher or hardware enthusiast, let's follow the smart car into a new stage of programming!

 If you want to know the reviewer's feedback, please click here.

Raspberry Pi pico projects

Components of a Raspberry Pi Pico

components of Raspberry Pi Pico

 26 Multi-Function GPIO Pins

GPIO Pin definition raspberry pi pico

Support 3 languages

Advanced Kit for Pico Programming supports 3 languages

Projects built with this kit

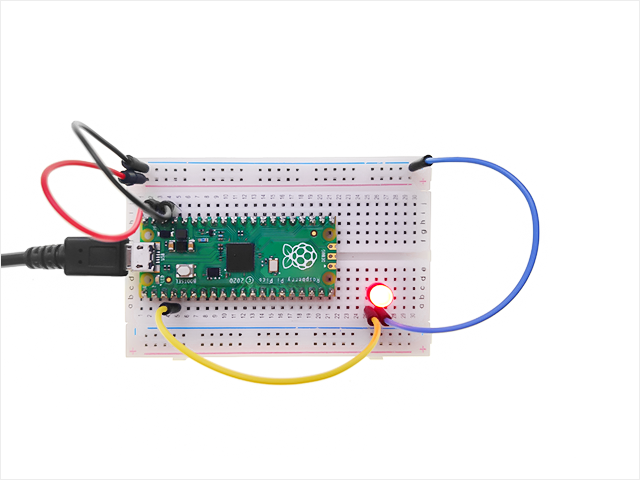

RGB Colorful Light

Through PWM pulse width modulation, the LED light is controlled to light up gradually, and then gradually turn off, so as to form a breathing light effect in a cycle.

Electronic Clock

The hour and minute data of the clock are displayed through the TM1637 4-Bits digital tube, and the clock point is controlled to flash circularly to make an electronic clock.

raspberry pi pico RGB projects

raspberry pi pico clock projects

Colorful Flowing Light

Through the GP port of the Pico, the 5 LED lights are controlled to light up in turn, and then turn off in turn to form a Colorful flowing light.


The first line of LCD1602 scrolls from right to left to display the string of "Hello Pico", simulating the effect of billboard scrolling.


rasp pi pico Flowing light projects

Raspberry Pi pico billboard project

Plant Doctor

Real-time detection of soil humidity. Under normal soil humidity, the green light lights up and the buzzer does not sound; when the soil humidity is too low, the red light lights up and the buzzer sounds.

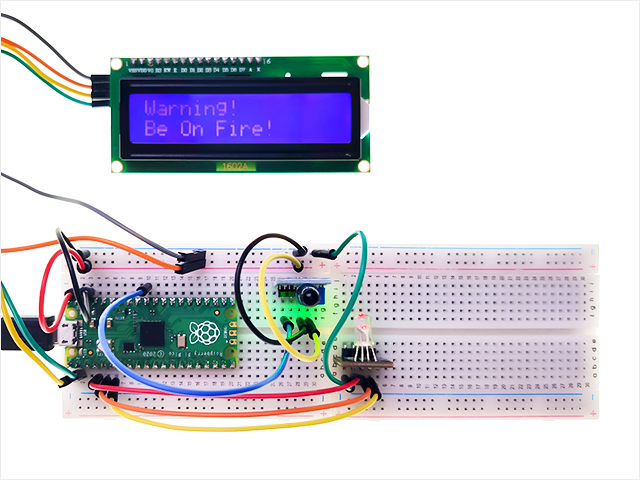

Alarm of Fire

Simulate a fire alarm system, judge whether a fire occurs by judging whether the induction probe of the flame sensor detects the fire source, control the RGB lights to flash red and blue, and display the alarm information on the LCD1602 liquid crystal screen.

raspberry pi humidity project

raspberry pi pico fire alarm projects

Obstacle Avoidance Car

Real-time detection of the distance measurement value of the ultrasonic ranging sensor, when the distance value is less than the preset value, the car will be controlled to turn left to avoid obstacles, so as to achieve the effect of the obstacle avoidance car.

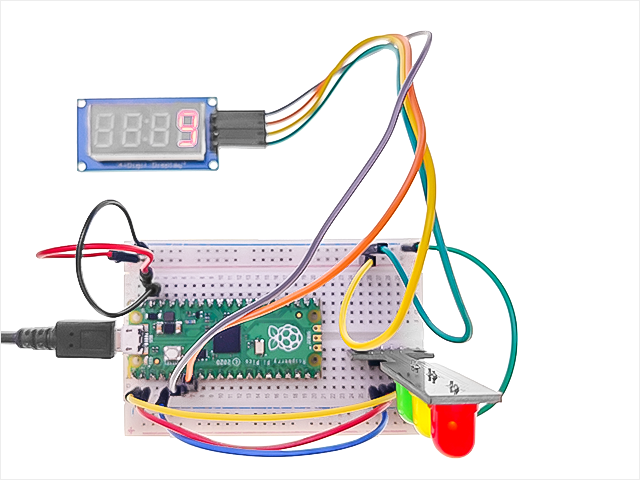

Traffic Light

Control the red light to turn on, the red light goes off after the 4-Bits digital tube counts down for 30 seconds; then the yellow light flashes 5 times with a time interval of 0.3 seconds; finally the green light turns on for 10 seconds and then turns off, reciprocating, simulating the effect of traffic lights.

raspberry pi pico obstacle car projects

raspberry pi pico traffic light projects


  • Suitable for all users, from beginners to advanced programmers.

  • 32 detailed lessons to lead your experiment

  • 32 kinds of sensor modules and the smart cart can also be customized for interesting functions.

  • Raspberry Pi Pico is a lightweight, compact, high-performance microcontroller multifunction board using a dual-core ARM Cortex-M0+ processor

  • More powerful functions

Specification of the Raspberry Pi Pico

  • 21 mm × 51 mm form factor

  • RP2040 microcontroller chip designed by Raspberry Pi in the UK

  • Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz

  • 264KB on-chip SRAM

  • 2MB on-board QSPI Flash

  • 26 multifunction GPIO pins, including 3 analog inputs

  • 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels

  • 1 × USB 1.1 controller and PHY, with host and device support

  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

  • Supported input power 1.8–5.5V DC

  • Operating temperature -20°C to +85°C

  • Castellated module allows soldering directly to carrier boards

  • Support drag-and-drop programming using mass storage over USB(

  • Low-power sleep and dormant modes

  • Accurate on-chip clock

  • Temperature sensor

  • Accelerated integer and floating-point libraries on-chip

 Package list

  • 1x Raspberry Pi Pico with Pin headers (Optional)

  • 2x 400 holes Solderless Breadboard

  • 10x Colorful 5MM LEDS:1pcs each in green, red, blue, yellow and white

  • 1x RGB module

  • 1xButton

  • 1x Sound Sensor

  • 1x Mini PIR motion sensor

  • 1x Photoresistor Module

  • 1x Laser Transmitter

  • 1x Passive buzzer

  • 1x Vibration Sensor

  • 1x Mini magnetic spring module

  • 1x Soil moisture sensor

  • 1x Rotary Potentiometer

  • 1x DC motor with male Dupont Wire + fan blade x 1

  • 1x 9G servo

  • 1x Dual-axis XY Joystick Module

  • 1x RC522 RFID Module

  • 1x 4 Bits Digital LED Display Module

  • 1x Traffic Light Display Module

  • 1x Rotary Encoder Module

  • 1x 1602 LCD Display Module(Blue)

  • 1x Temperature & Humidity sensor

  • 1x Raindrops Module

  • 1x Flame Sensor

  • 1x OLED Module

  • 1x Membrane Switch Keyboard

  • 1x Smart car Kit

  • 2x Crash Sensor

  • 2x Tracking sensor

  • 1x Ultrasonic Sensor

  • 1x Infrared remote control

  • 1x Infrared receiver module
  • 1x Micro USB Cable(30cm)

  • 1x 170 holes Solderless Breadboard

  • 1x 65 Jumper Wire

  • 1x 20CM Male to Female Dupont Wire

  • 1x Clear Case

  • 10 x 2K Ω Resistors
  • 2x M2.5*30mm Copper Pillar

  • 10x Phillips Pan Head Screw

  • 10x M2.5 Nickel Hex nuts

  • 1x 2 INCH dual-purpose screwdriver

  • 1x Magnet(Diameter:8mm Thickness:5mm)

  • 1x DC stepper motor driver board

 Manual&Lessons External Link
