CrowPanel Advanced 7inch |ESP32-P4 HMI AI Display 1024x600 IPS Touch Screen with WiFi 6 Compatible with Arduino/LVGL¶
Description¶
All-in-one Starter Kit for Micro:bit is a perfect starter kit designed for beginners, aiming to start your Micro:bit learning journey in a fun and simple way. The kit comes with more than 20 carefully designed tutorials, covering multiple levels from basic to advanced, gradually guiding you to familiarize yourself with the use of various sensors, exercise your logical thinking ability, and inspire your innovative inspiration.
The kit contains 13 modules with different functions, each with an intuitive silk-screen logo for easy identification and use. These sensors are carefully selected and tailored for Micro:bit beginners. They are very suitable for introductory learning and can effectively cultivate logical thinking and practical skills.
No matter you are a student, teacher or hardware enthusiast, with the All-in-one Starter Kit for Micro:bit, you can quickly master the basic programming knowledge of Micro:bit and open a new chapter in the creation of intelligent hardware.
Designed & manufactured by Elecrow, customized requests can be discussed(based on MOQ). You can contact us at service@elecrow.com.
Model DHE04107D
The CrowPanel Advance ESP32-P4 HMI series is a high-performance AI-powered intelligent interactive terminal designed for demanding applications. Its innovative dual-chip architecture combines powerful computing power, rich multimedia features, and ultimate expansion flexibility, making it the ideal core for driving the next generation of smart devices.
This 7-inch display is powered by the RISC-V-based ESP32-P4 SoC, featuring both high-performance and low-power cores, operating at frequencies up to 400MHz. Combined with the generous storage capacity of 16MB Flash and 32MB PSRAM, it provides ample power for complex graphical interfaces and real-time AI tasks.
The onboard ESP32-C6-MINI-1 module supports 2.4GHz Wi-Fi 6 and Bluetooth 5.3, ensuring stable and reliable connectivity with excellent power consumption.
The 7-inch IPS touchscreen integrates capacitive touch technology, providing an intuitive user experience. The integrated 2-megapixel MIPI-CSI camera (optional) not only supports high-definition image capture but also efficiently runs edge AI applications such as real-time facial recognition and dynamic object tracking.
The onboard NS4168 audio codec and single-microphone array provide high-fidelity playback and accurate far-field voice recognition. Equipped with dual-channel speakers, it lays a solid foundation for voice interaction and is suitable for scenarios such as voice assistants and smart home control.
The 7-inch screen also offers ultimate expandability. Equipped with dual USB-C ports (UART adapter/USB 2.0 OTG), 40-pin GPIO, multiple Crowtail ports (supporting I2C/UART protocols), and interchangeable wireless module slots (supporting Thread, Zigbee, etc.), it easily adapts to various sensors and communication protocols.
Why choose the P4 HMI series?
Compared to previous generations(Basic/Advanced ESP32-S3), the ESP32-P4 HMI series achieves a significant leap in machine learning inference and real-time data processing performance through an upgraded processor and AI instruction set. Whether it's a smart home central control, industrial control panel, or commercial display device, its comprehensive peripheral support can provide excellent solutions to help you quickly build powerful and interactive smart products.
Design&manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.
Feature¶
✅ Powerful dual-core architecture, enhanced performance
- Equipped with the RISC-V architecture ESP32-P4 dual-core processor (400MHz high-performance core + low-power core), equipped with 16MB Flash and 32MB PSRAM, it easily handles complex graphical interfaces and real-time AI calculations.
- An independent ESP32-C6-MINI-1 wireless module supports Wi-Fi 6 and Bluetooth 5.3, balancing stable connectivity with low power consumption.
✅ AI acceleration, fully upgraded performance
- Significantly improved computing power compared to previous generations, suitable for high-load tasks such as real-time data analysis, and suitable for high-performance applications such as smart home appliances and industrial control.
- Supports dual-channel speaker output, making it suitable for scenarios such as voice assistants and smart home control.
✅ High-definition IPS touchscreen for smooth and natural interaction
- Available in multiple sizes: 5.0/7.0/9.0/10.1 inches, IPS TFT screens support capacitive touch, wide viewing angles, and smoother interaction.
✅ Integrated intelligent vision, empowering AI applications
- An integrated 2-megapixel MIPI-CSI camera smoothly runs AI vision algorithms like facial recognition and object tracking.
✅ Rich and comprehensive interfaces for flexible expansion

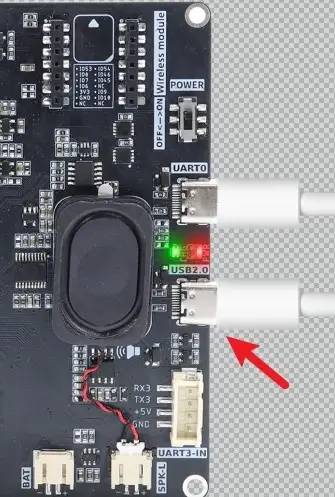

- Dual USB-C (supporting UART debugging and USB 2.0 OTG), 40-pin GPIO, and Crowtail (I2C/UART) interfaces facilitate connection to various peripherals and sensors.
- A replaceable wireless module slot supports multiple communication protocols, including Wi-Fi 6, Thread, Zigbee, allowing a single board to accommodate diverse IoT scenarios.
Specification¶
| Main Chip-ESP32-P4NRW32 | |
|---|---|
| CPU/SoC | **ESP32-P4**RISC-V 32-bit dual-core processor for HP systems, running at up to 400 MHz;RISC-V 32-bit single-core processor for LP systems, running at up to 40 MHz |
| System Memory | 768 KB L2MEM (HP) 32 KB SRAM (LP) 8 KB TCM 32 MB PSRAM |
| Memory | 128 KB ROM (HP) 16 KB ROM (LP) 16 MB Flash |
| Development Language | MicroPython, Rust, Lua |
| Development Environment | ESP-IDF、Arduino IDE、LVGL |
| Screen | |
| Size | 7.0 inch |
| Resolution | 1024*600 |
| Display Panel | IPS Panel |
| Touch Panel | Capacitive Touch, Single/5-point Touch |
| Viewing Angle | 178° |
| Brightness | 400 cd/m²(Typ.) |
| Color Depth | 16.7M (8-bit) |
| Wireless Communication - Onboard Antenna | |
| WiFi | Support 2.4GHz(Wi-Fi6), 802.11a/b/g/n |
| Bluetooth | Support Bluetooth 5.3 and BLE |
| Other | Zigbee, LoRa, nRF2401, Matter, Thread (Optional) |
| Interface/Function | |
| Interface | USB2.0, UART, I2C, GPIO female headers, SD card holder, battery socket, speaker jack, camera header, module female headers, etc. |
| Function | Audio amplifier, battery charge management, USB to UART, dual microphones, dual speakers etc. |
| Button/LED Indicator | |
| Reset Button | Yes, press to reset the device |
| Boot Button | Yes, press and hold the power button to burn the program |
| Power Button | Switch On/Off |
| PWR | Device power on/off indication |
| CHG | Lithium battery charging status, Low battery state |
| Other | |
| Installation method | All around mounting holes(M3 3.2mm), embedded, shell assembly |
| Operating temperature | -20~70 °C |
| Storage temperature | -30~80 °C |
| Power Input | 5V/2A, USB or UART terminal |
| Active Area | 155mm*87mm |
| Dimensions | 180*105mm |

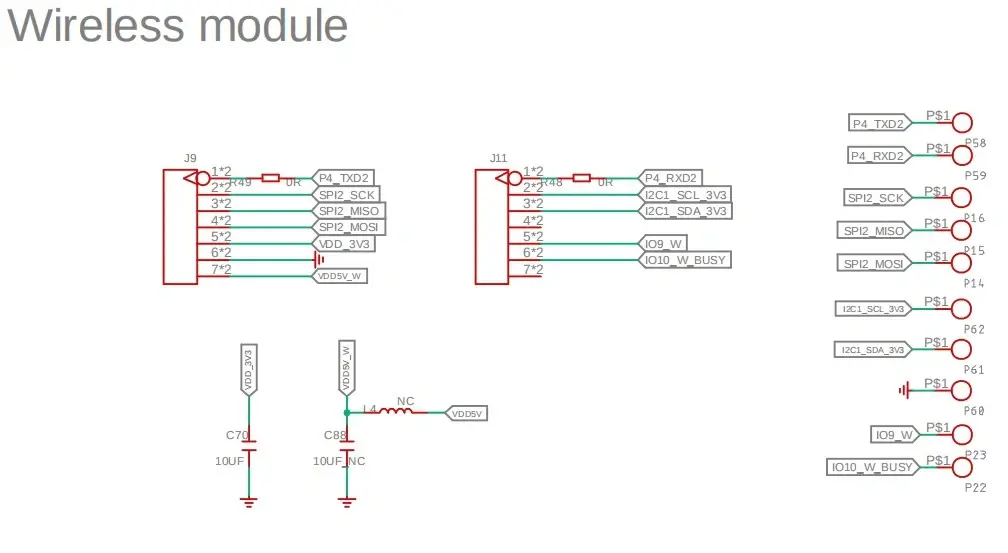

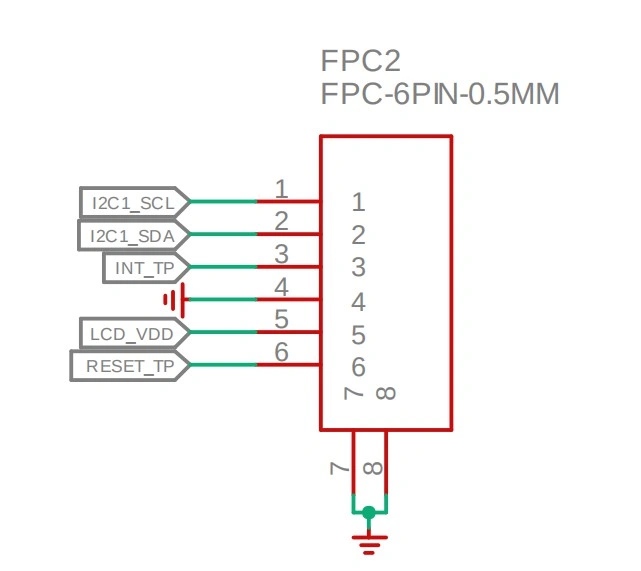

Schematic:¶
Platforms Supported¶
Compile Environment Configuration：¶
Vs code Installation

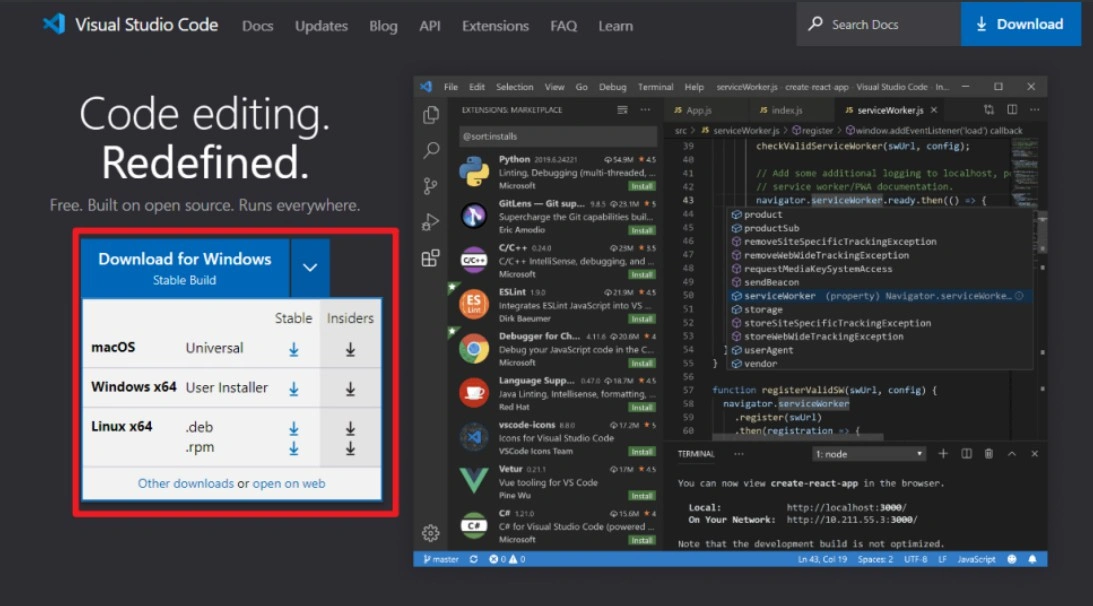

(1) First, download Visual Studio Code from https://code.visualstudio.com/. Select the version compatible with your computer's operating system and download it.

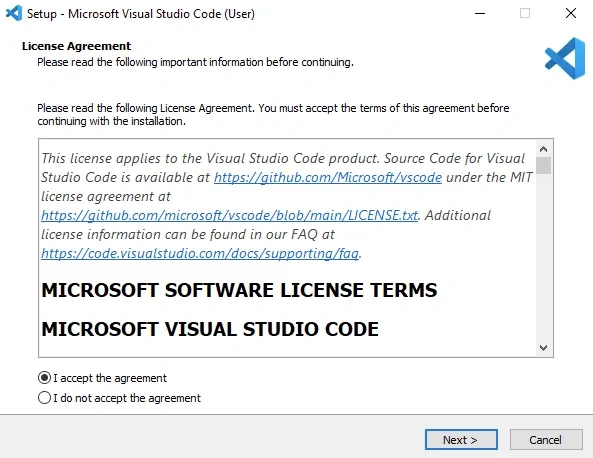

(2) Double-click to install Visual Studio Code software, and simply proceed with the default installation throughout.
(3) Open Visual Studio Code, click on ‘Extensions’, search for Python, and install it.

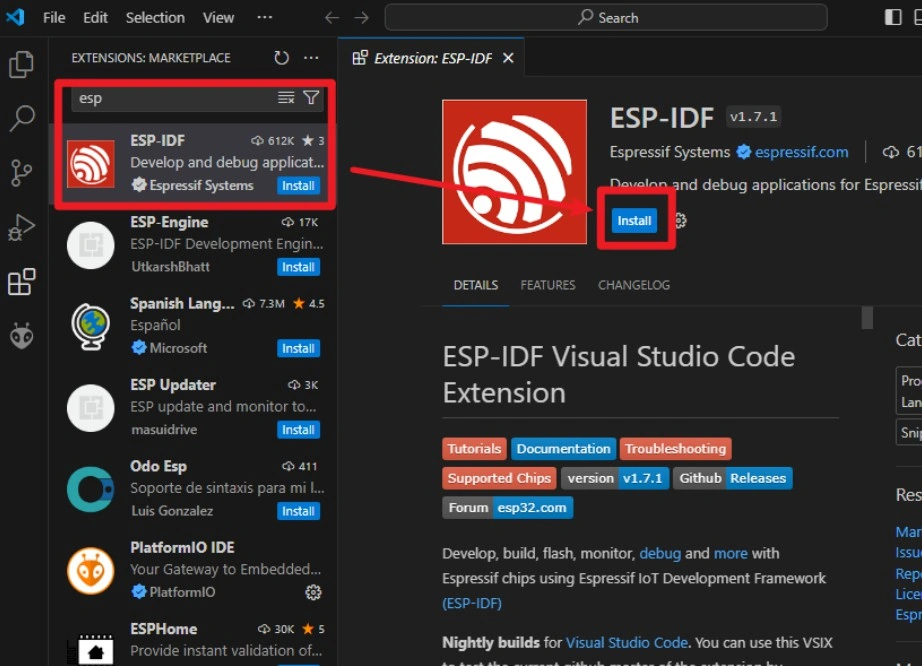

(4) Search for ESP-IDF and install it.

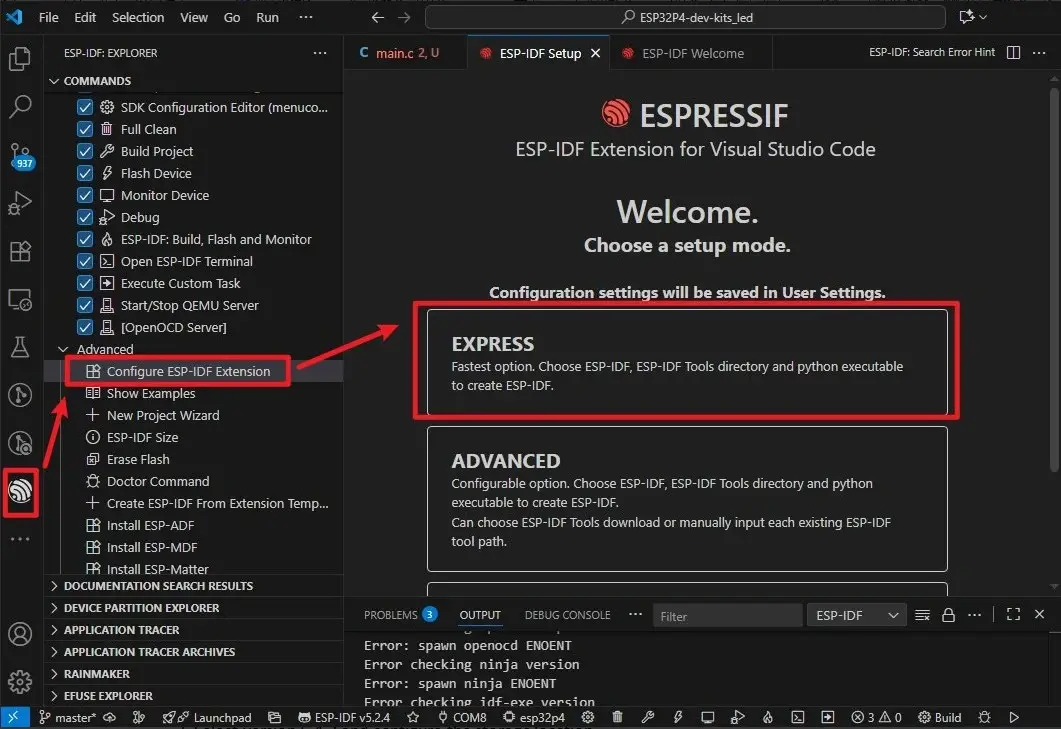

(5) Install the ESP-IDF tools.
(6) Select version 5.4.2 and configure the storage location.
(7) Awaiting installation.
(8) Installation successful.
Courses on Different Platforms:¶
| ESP-IDF |
|---|
 |
 |
Resources¶
Github link：
How to buy¶
Please visit this page to purchase CrowPanel Advanced 7inch ESP32-P4 HMI AI Display.
Support¶
If you have any problem about how to use it, you can connect to us at the bottom-right of bazzer or contact to techsupport@elecrow.com to get technology support.
