Crowbits-Electromagnet

Description


The electromagnet is a digital output module, it is a type of magnet in which the magnetic field is produced by an electric current. Equipped with this feature, you can make a mini device for picking up and moving magnetic material.


Features


  • Easy to use

Specification


  • Operating Voltage: 3.3V DC
  • Supply mode: Crowbits Power Module
  • Dimensions: 31.5(L)*24.5(W)*13(H) mm

Usage


1. You also need to prepare a power module, such as Crowbits-Power Supply, and an input module, such as Crowbits-Switch.

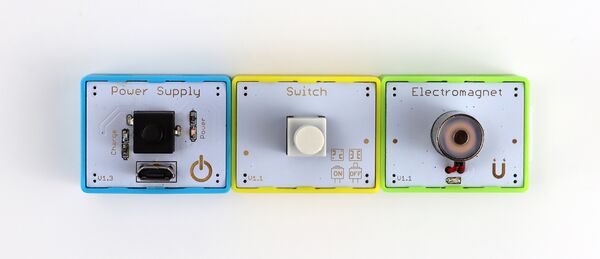

2. The connection mode is shown in the figure, but the signal feet of the input module and the output module must be connected.

Crowbits-Electromagnet-Wiki 1.jpg

3. Turn on the power. When you press the button of the self-locking switch, the LED of Crowbits-Electromagnet board will light up.

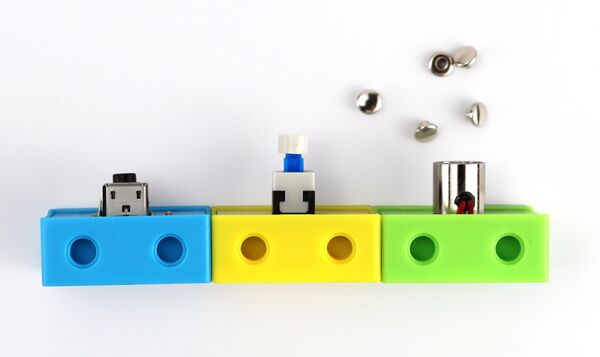

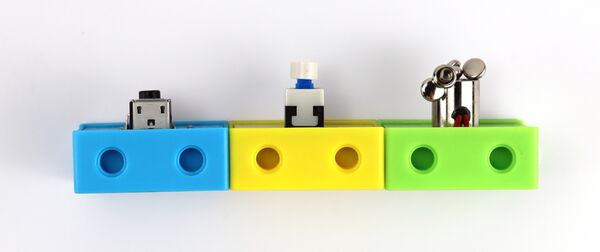

4. Then let it absorb the magnetic screw, and you'll see that the screw attaches to the electromagnet. When you release the self-locking switch, the screw on the electromagnet will fall off.

Crowbits-Electromagnet-Wiki 2.jpg

Crowbits-Electromagnet-Wiki 3.jpg
