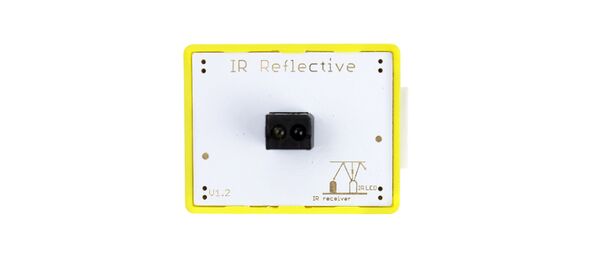

Crowbits-IR Reflective Sensor

Description


The IR reflective sensor is a digital input module, it acts like a pair of eyes inside your circuit, it senses objects around it and takes action. In real life, the IR reflective sensor is often used as car tracking devices.


Features


  • Easy to use
  • Digital input module

Application


  • Obstacle Detection
  • Compact disk players, Copiers, Game machines

Specification


  • Operating Voltage: 3.3V DC
  • Supply mode: Crowbits Power Module
  • Dimensions: 31.5(L)*24.5(W)*13(H) mm

Usage


1. You also need to prepare a power module, such as Crowbits-Power Supply, and an output module, such as Crowbits-LED.

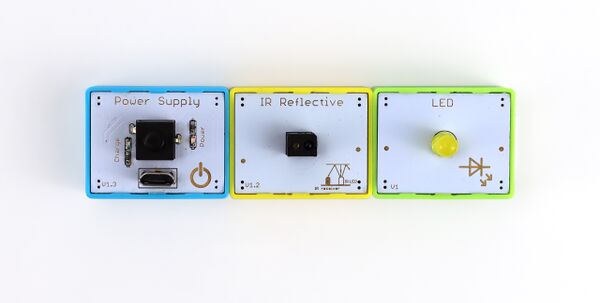

2. The connection mode is shown in the figure, but the signal feet of the input module and the output module must be connected.

Crowbits-IR Reflective Sensor-Wiki 1.jpg

3. Then, turn on the power. When the sensor detects an object, the LED behind it will light up.
