Description


The logic OR is a logic gate that creates an OR rule for your circuit. But unlike AND, the logic OR is a good option for projects where you want to detect two inputs but don't care which input is activated.


Features


  • Single output port.
*Output indicator.

Specification


  • Operating Voltage: 3.3V DC
  • Supply mode: Crowbits Power Module
  • Dimensions: 56(L)*31(W)*13(H) mm

Usage


1)You also need a power module, such as Crowbits-Power Supply; An input module, such as Crowbits-Switch and Crowbits-Touch Sensor; An extension module, such as Crowbits-LED.

2)The connection mode is shown in the figure, but the signal feet of the input module and the output module must be connected.

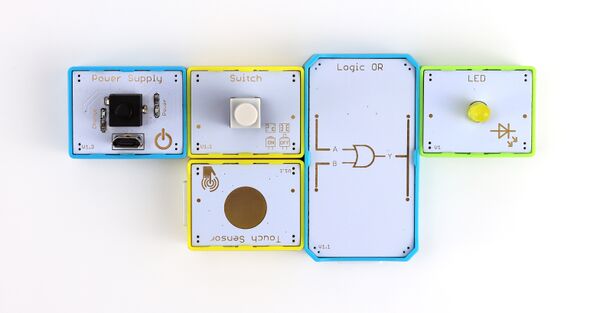

Crowbits-Logic OR-Wiki 1.jpg

3)Then, turn on the power. When you press the self-locking switch or press the Touch Sensor, the LED light.

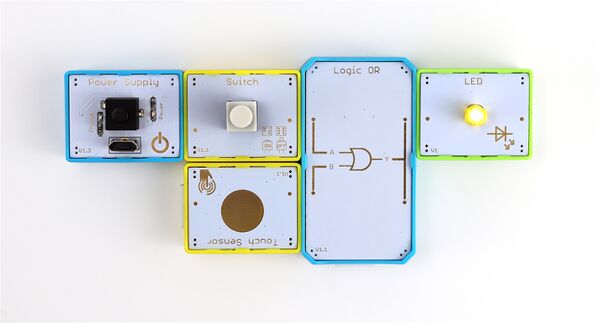

Crowbits-Logic OR-Wiki 2.jpg
