Crowbits-Potentiometer

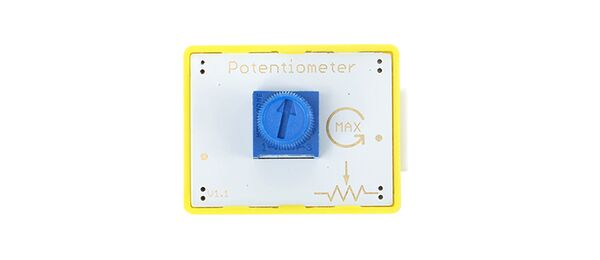

Description


The potentiometer is an analog input module, it acts like a variable resistor, it controls your circuit through adjusting the resistance in the whole circuit.


Features


  • Analog input module

Specification


  • Operating Voltage: 3.3V DC
  • The range of resistance of the potentiometer: 0~5KΩ
  • Supply mode: Crowbits Power Module
  • Dimensions: 31.5(L)*24.5(W)*13(H) mm

Usage


1. You also need to prepare a power module, such as Crowbits-Power Supply, and an output module, such as Crowbits-LED.

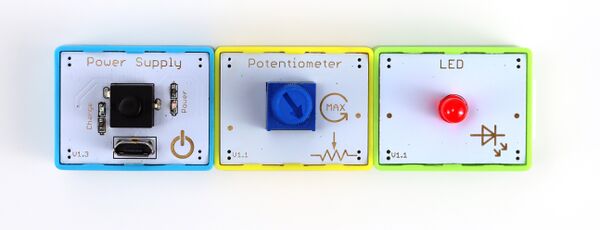

2. The connection mode is shown in the figure, but the signal feet of the input module and the output module must be connected.

Crowbits-Potentiometer-Wiki 1.jpg

3. Then, turn on the power. Rotate the rheostat, you can see that the LED will have a progressive effect of darkening or brightening.

Crowbits-Potentiometer-Wiki 2.jpg

Crowbits-Potentiometer-Wiki 3.jpg
