Crowduino Leonardo

Introduction


The Crowduino Leonardo is a microcontroller board that completely compatible with the Arduino Leonardo. It is based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
The Leonardo differs from all preceding boards in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Leonardo to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

Model: ACA32U4CL

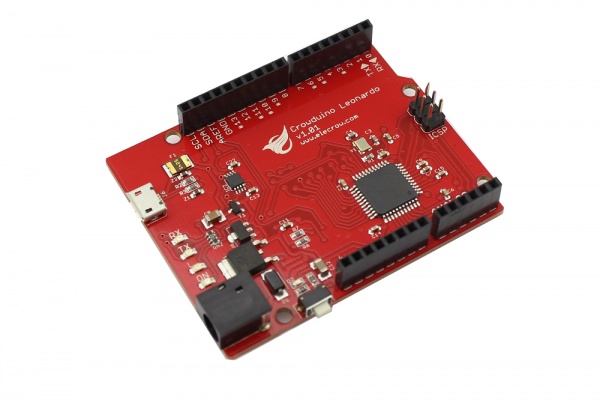

Crowduino Leonardo.JPG

Features


Microcontroller: ATmega32u4 T Working Frequency: 16MHz Digital I/O Pins: 20 PWM Channels:7 DC Current per I/O Pin 40mA DC Current for 3.3V Pin: 50mA Flash Memory: 32KB of which 4KB used by bootloader SRAM:2.5KB EEPROM: 32KB Power Supply: USB 5V or External Power 7~12V I/O Logic:3.3V/5V Dimensions(mm):70.0(L)x55.0(W)x11.8(H)
