Crowtail- HTU21D Humidity& Temperature Sensor

Description


Crowtail- HTU21D Humidity &Temperature sensor is a low-cost, easy to use, highly accurate, digital humidity and temperature sensor. And the work voltage range about this sensor is 1.5V-3.6V, so we need to use the AMS1117 to achieve step-down when we want it work with our crowduino which has a 5V voltage output. The sensor outputs the calibrated digital signal in standard I2C format. Diversified output mode, wide operating voltage range, while high temperature accuracy and humidity accuracy. HTU21 series module designed for low-power/small-volume application design, with good quality, fast response speed, anti-interference ability, cost-effective advantages, very low power consumption. It’s ideal for environmental sensing and data logging and perfect for a weather stations or humidor control systems. All you need is connect the specific crowtail port into the arduino/crowduino by using a crowtail cable.

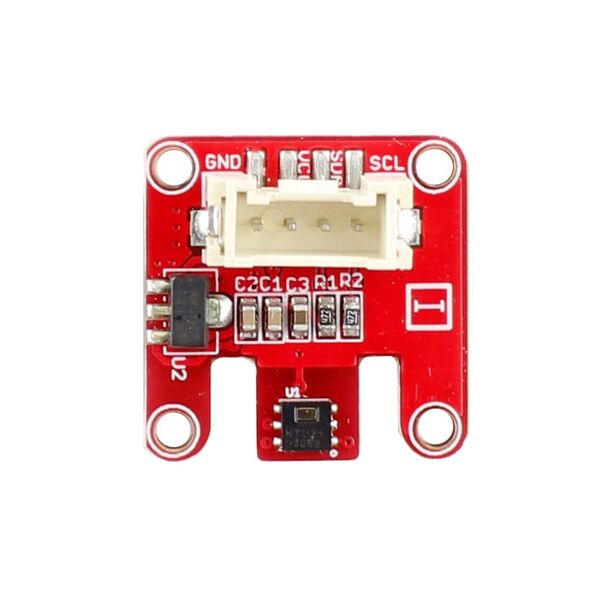

Model: CRT02120H Crowtail-htu21d humidity temperature 1.jpg

Alt text

Specifications


Item Value
Input voltage 5V
Humidity measurement range 0-100% RH
Temperature measurement range -40 ℃ -105 ℃
Maximum power consumption 2.7uW
Communication I2C
Humidity accuracy range (10% RH to 95% RH) HTU21D ± 2% RH
Load Weight 1KG
Humidity hysteresis ± 1% RH
Measurement time 50ms
Annual drift -0.5% RH / year
Response time 5s
Dimensions(mm) 20.0(L)x20.0(W)x9.8(H)

Interface



Platforms Supported


Arduino

Usage


Hardware

STEP1 Prepare the below stuffs:

Crowduino Uno Base Shield Crowtail- HTU21D Humidity &Temperature sensor
Crowduino 2.jpg Crowtail-base shield 2.jpg Crowtail-htu21d humidity temperature 1.jpg
Get one now Get one now Get one now

STEP2 Plug Crowtail-Base Shield into Crowduino Uno;

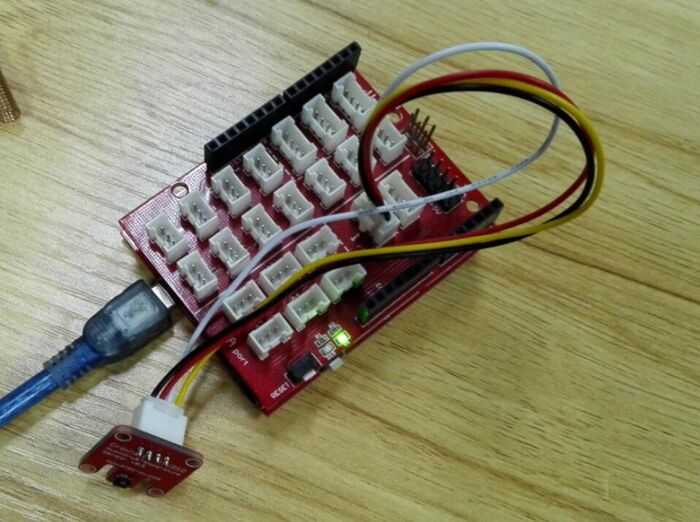

STEP3 Plug HTU21D Humidity&Temperature Sensor into I2C port on the Crowtail-Base Shield I Port with Crowtail cable;
STEP4 Connect Crowduino Uno to PC via a Mini USB cable.

NOTE
If we don't have Crowtail Base Shield, We also can directly connect this module to Crowduino Uno as below.
Crowduino Uno Weight Sensor
A4(J7) SDA
A5(J7) SCL
5V VCC
GND GND

Software

STEP 1.Download filesSparkFun_HTU21D_Breakout_Arduino_Library-master.zip
STEP2 Configure controller board&communication port
On top of the Arduino IDE, click “Tools>Board>” and select “Arduino Uno” from the available options
SELECT BOARD.png
Select the COM port that indicates Arduino Uno. Please note that the actual numbers after the “COM” word will vary from computer to computer, so they could be different from the ones shown in the figure.
S 2 2.png
STEP 3 Install Library: Unzip the SparkFun_HTU21D_Breakout_Arduino_Library-master.zip file and copy it to the Libraries directory under the Arduino installation directory

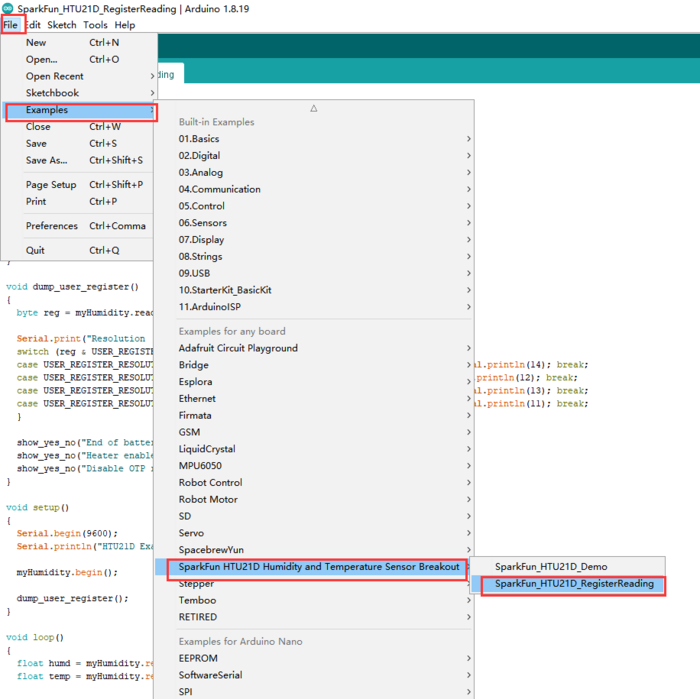

STEP4 Open Arduino IDE and load SparkFun_HTU21D_RegisterReading:click “File→Examples→SparkFun HTU21D Humidity and Temperature Sensor Breakout→SparkFun_HTU21D_RegisterReading”
STEP5 Click the Upload.png to upload the code to the Crowduino board

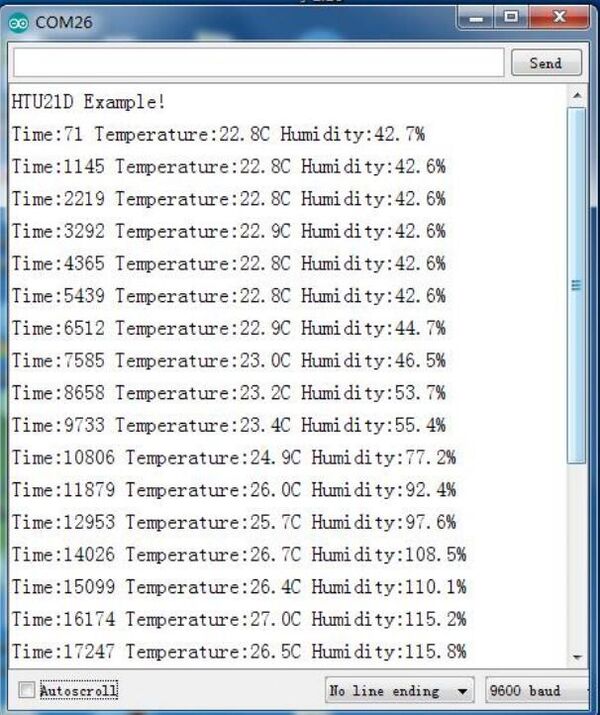

STEP6 After the program is downloaded, open the Serial Monitor of Arduino IDE, set baud rate to 9600, and the value of humidity and temperature will be printed,such as shown in the figure Htu21 data.jpg

FAQS


You can list you question here or contact with techsupport@elecrow.com for technology support.

Resources


Crowtail-_HTU21D_Humidity%26Temperature_Sensor_eagle_file.zip
SparkFun_HTU21D_Breakout_Arduino_Library-master.zip
HTU21D_datasheet.pdf
