Crowtail- MAX30105 Particle Sensor

Description


The MAX30105 is an integrated particle-sensing module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30105 provides a complete system solution to ease the design-in process of smoke detection applications including fire alarms. The MAX30105 is designed to operate at 5V and can communicate with both 3.3V and 5V microcontrollers.

Model: CRT00226P

Crowtail- MAX30105 Particle Sensor.jpg

Features


Built-in Red, IR, and Green LEDs

5V operation

Onboard 1.8V regulation and I2C interface circuitry

Sensitivity configurable down to 7.81pA

3200Hz maximum sample rate

Built-in 32 sample FIFO (First In, First Out

Dimensions(mm):20.0(L)x20.0(W)x11.8(H)

Application


Presence detection, distance sensing (18" max), pulse oximetry, blood oxygen saturation level (SpO2), smoke and particle detection

Usage


This demo will show you when When the sensor detects the object, the serial monitor will print "Something is there!".

Hardwire connection

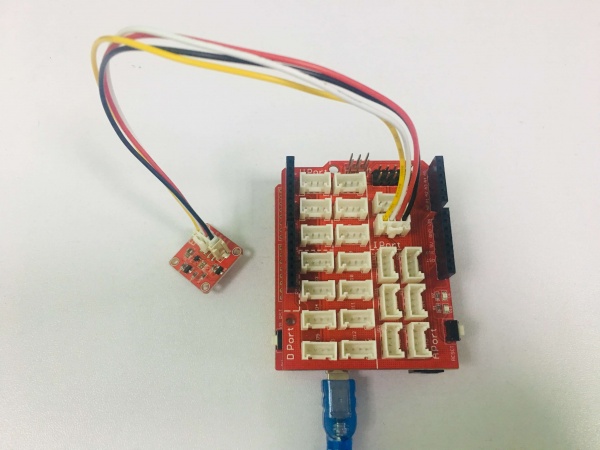

The Crowtail- MAX30105 Particle Sensor is connecting to IIC port of Crowtail - Base Shield.


Download "MAX3010x_Sensor_Library" for arduino boards, unzip and put it in the libraries of Arduino IDE by the path : ..\arduino-1.x.x\libraries;

#include <Wire.h>
#include "MAX30105.h"

MAX30105 particleSensor;

long samplesTaken = 0; //Counter for calculating the Hz or read rate
long unblockedValue; //Average IR at power up
long startTime; //Used to calculate measurement rate

void setup()
{
  Serial.begin(115200);
  Serial.println("Initializing...");

  // Initialize sensor
  if (!particleSensor.begin(Wire, I2C_SPEED_FAST)) //Use default I2C port, 400kHz speed
  {
    Serial.println("MAX30105 was not found. Please check wiring/power. ");
    while (1);
  }

  //Setup to sense up to 18 inches, max LED brightness
  byte ledBrightness = 0xFF; //Options: 0=Off to 255=50mA
  byte sampleAverage = 4; //Options: 1, 2, 4, 8, 16, 32
  byte ledMode = 2; //Options: 1 = Red only, 2 = Red + IR, 3 = Red + IR + Green
  byte sampleRate = 400; //Options: 50, 100, 200, 400, 800, 1000, 1600, 3200
  int pulseWidth = 411; //Options: 69, 118, 215, 411
  int adcRange = 2048; //Options: 2048, 4096, 8192, 16384

  particleSensor.setup(ledBrightness, sampleAverage, ledMode, sampleRate, pulseWidth, adcRange); //Configure sensor with these settings

  particleSensor.setPulseAmplitudeRed(0); //Turn off Red LED
  particleSensor.setPulseAmplitudeGreen(0); //Turn off Green LED

  //Take an average of IR readings at power up
  unblockedValue = 0;
  for (byte x = 0 ; x < 32 ; x++)
  {
    unblockedValue += particleSensor.getIR(); //Read the IR value
  }
  unblockedValue /= 32;

  startTime = millis();
}

void loop()
{
  samplesTaken++;

  Serial.print("IR[");
  Serial.print(particleSensor.getIR());
  Serial.print("] Hz[");
  Serial.print((float)samplesTaken / ((millis() - startTime) / 1000.0), 2);
  Serial.print("]");

  long currentDelta = particleSensor.getIR() - unblockedValue;

  Serial.print(" delta[");
  Serial.print(currentDelta);
  Serial.print("]");

  if (currentDelta > (long)100)
  {
    Serial.print(" Something is there!");
  }

  Serial.println();
}

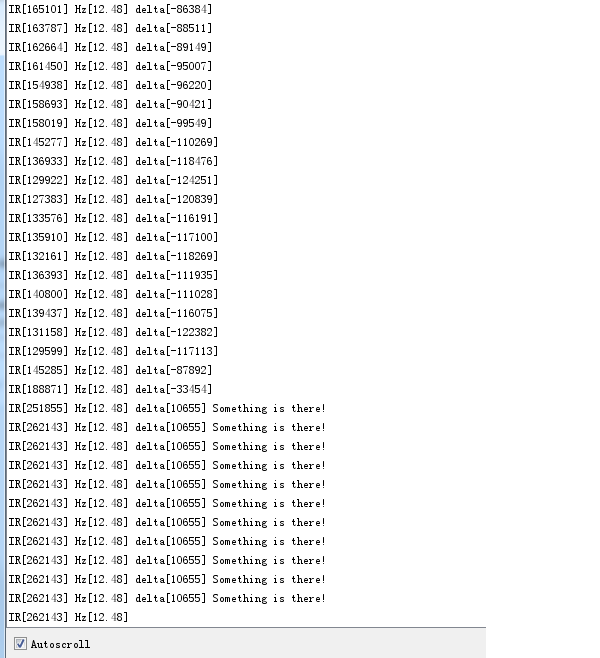

Cope the code and upload it into your arduino board, open the Serial Monitor, if the sensor detects a significant change from the average, it will print "Something is there!".
