Tiny Adjustable Infrared Sensor Switch

Introduction


This is a new version of infrared distance switch. It has small size and higher ranging, it is able to detect ranging from 3cm to 100cm. It is tiny, easy to use/assemble, and inexpensive. Useful for robotics, interactive media, industrial assembly line, etc.
Model: SOD00300S

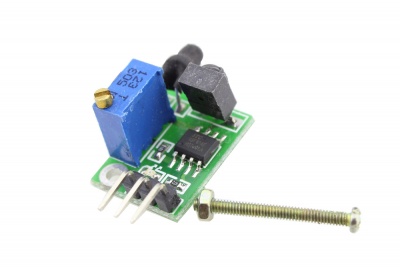

Infrared Sensor Switch 3 - 100cm1 011.jpg

Features


  • Power supply: 5V
  • Current: 100mA
  • Range: 3-100cm adjustable

Usage


Hardware

Connect this sensor to your Arduino/Crowduino digital pins( D2 for example). When there is an object behind this sensor, the output would be low.

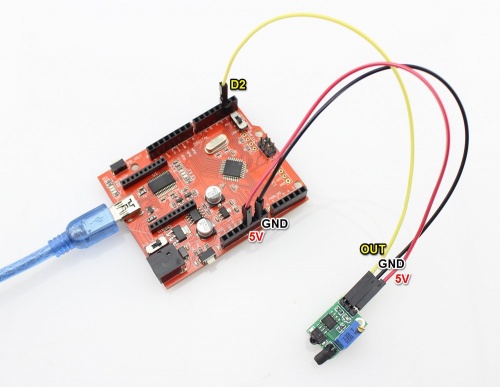

Tiny Adjustable Infrared Sensor Switch.jpg

Programming

1.Copy the following program to Arduino IDE and upload to your Arduino/Crowduino:

 void setup()  {
  Serial.begin(9600);
  pinMode(2,INPUT);
 }
 void loop()  {
  while(1)  {
    delay(500);
    if(digitalRead(2)==LOW)  {
      Serial.println("object detected.");
    }
    else  {
      Serial.println("no object detected.");
    }
  }
 }

2.Open the Serial moniter, and set the baudrate to 9600, you will see the output change with the object behind this sensor or not.

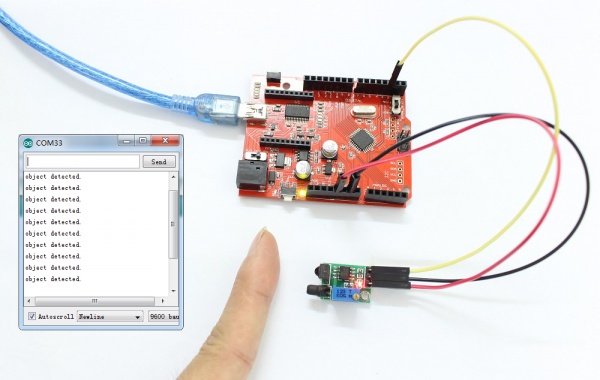

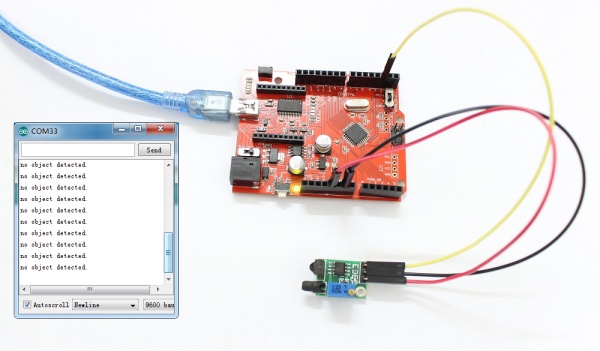

Tiny Adjustable Infrared Sensor Switch test1.jpg Tiny Adjustable Infrared Sensor Switch test2.jpg
