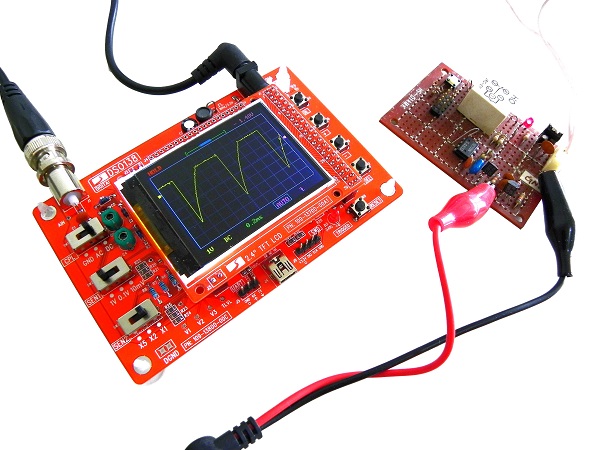

DSO138 Digital Oscilloscope DIY kit
was
$31.99
Special Price
$14.40
Availability:
Out of stock
SKU
AKA01381A
Brand
elecrow
Weight
120g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought

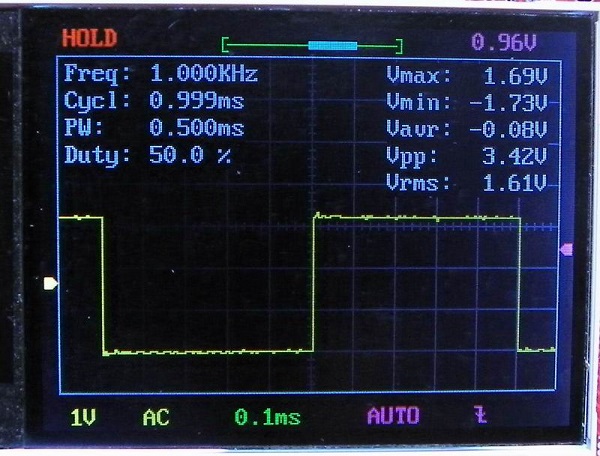

DSO138 was designed as a training oscilloscope kit. Simplicity in structure and easiness in assembly/operation are the main targets of its design. For these purposes, DSO138 applies mostly through-hole parts and the heart of DSO138 is a Cortex-M3 ARM processor (STM32F103C8) from ST. It also uses 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element that will display nice clear waveforms. Detailed assembly instructions are provided in combination with troubleshooting guide and schematic.

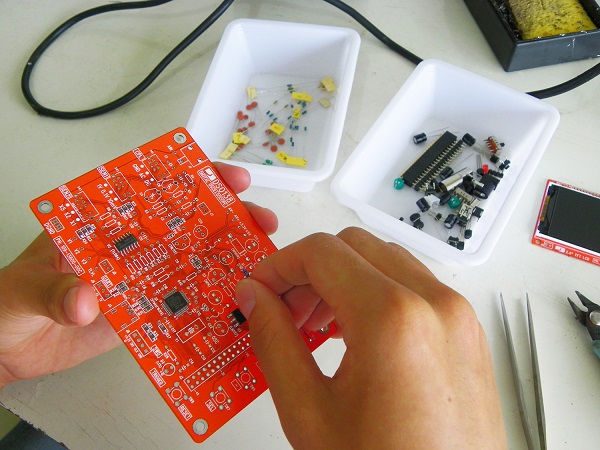

This DSO138 kit has all SMD parts pre-soldered. The MCU has been pre-programmed and no re-programming required.
This DSO138 kit has all SMD parts pre-soldered. The MCU has been pre-programmed and no re-programming required.
Specification
- Number of Channels: 1
- Analog Bandwidth: 0 - 200KHz
- Sensitivity: 10mV/Div - 5V/Div
- Sensitivity error: < 5%
- Resolution: 12-bit
- Maximum Input voltage: 50Vpk
- Coupling: DC, AC, GND
- Max Real-time Sampling Rate: 1Msps
- Timebase: 10us/Div - 500s/Div
- Record Length: 1024
- Trigger Modes: Auto, Normal, Single
- Trigger Types: Rising/falling edge
- Trigger Position: 1/2 of buffer size fixed
- 2.4-inch color TFT LCD with 320 x 240 resolution
- 9V DC (8 - 12V acceptable)
- Supply Current: 120mA
- Dimension: 117mm X 76mm X 15mm
- Weight: 70 gram (not including cables)
Package list

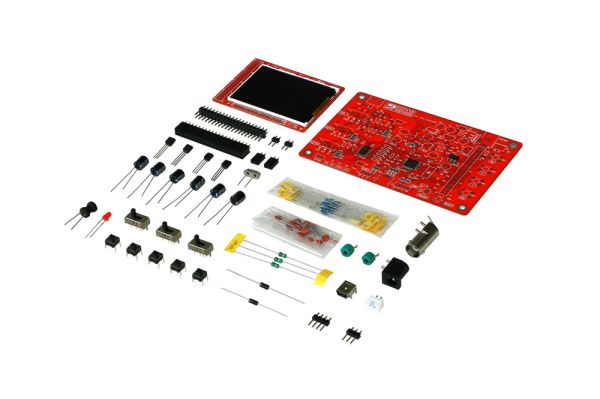

- DSO138 Digital Oscilloscope DIY kit x1
