Open Source Projects

The PCB for the first batch open hardware projects shared here is fabricated with Elecrow free prototyping for Christmas Theme PCB design and the designer approved elecrow to share the original design with Elecrow Customer. This Free Christmas PCB fabrication is not available now and if you need PCB fabrication, you can go to the PCB service Page to order online. There are some other Christmas related projects shared at Elecrow Facebook group for you design refer. If you have other opensource projects to share or any problem, please feel free to contact us via email at David@elecrow.com There are some designers sell products at Elecrow online store. You can go to this cooperator designers' products page to support the them.

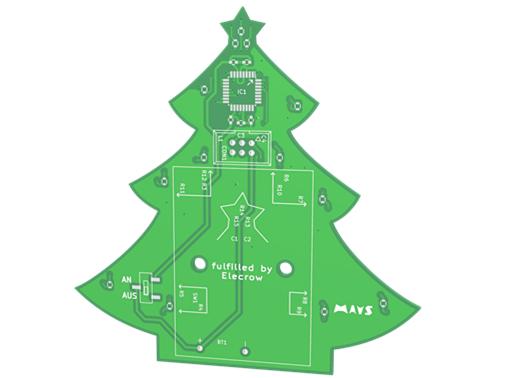

• Elecrow Christmas Tree by Gerrit Maus

  This Christmas tree is a simple circuit with some LEDs around an Atmel ATMEGA328P with the possibility to measure the battery voltage. All LED currents are planned to be very low so all LEDs will be driven by the microcontroller itself. In the download section you will find the schematic (pdf) and all Gerber files.

  Click to download the Circuit Gerber File.

  Visit the designer's website for more details.



  Designed by Gerrit Maus; PCB manufactured by Elecrow.


• Snowflake designed by Buleks

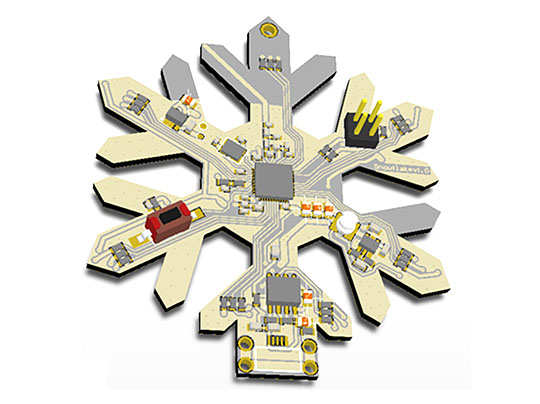

  Snowflake which can be mounted on Christmas tree. It contains six RGB LEDs which can light in different patterns.It is powered by li-po cell and can be charged by Micro USB connector. It contains Bluetooth low energy(nRF51) which can be used to check the battery state and modify lighting patterns. Hardware Design PCB was designed using Circuit Maker. The project can be seen here. The software will be made using the C++ Microhal library.

  Click to download the Circuit Gerber File.

  Visit the designer's website for more details.



  Designed by Mateusz Zapart; PCB manufactured by Elecrow.



• Matrix LED display by Doug

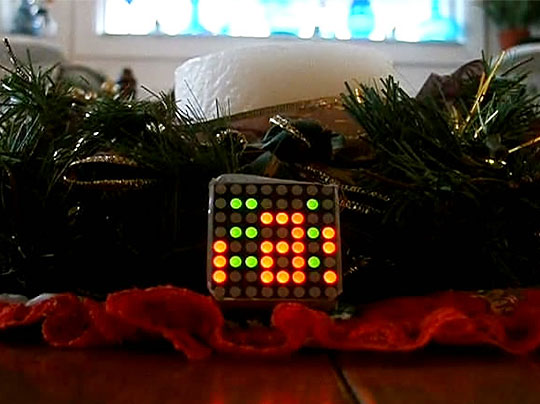

  Matrix LED display

  Click here to download the Gerber file.

  Click here to download the BOM list and the code.

  Click here to view all the file designer shared.



  Designed by Doug; PCB manufactured by Elecrow.

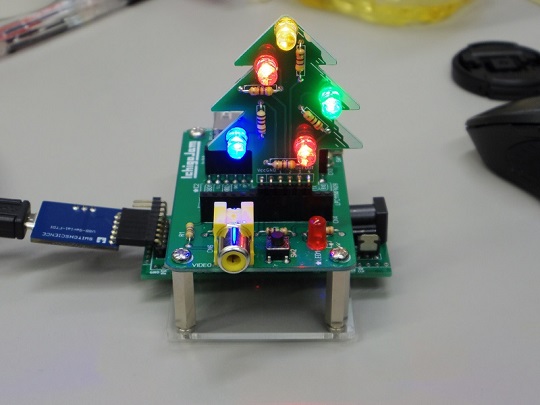

• Christmas PCBA tree by Takehiko Kawazu

  Shake the board and the LED glows and the beep bell rings. This product is also shared on Elecrow Facebook group.

  Click to download the Circuit Gerber File.

  Click here to download the BOM list.

  Click here to download the Arduino code.

  Click to watch the video for this product.



  Designed by Takehiko Kawazu; PCB manufactured by Elecrow.



• Christmas tree PCB decoration designed by Adrian Virna

  This Christmas tree PCB decoration shared at Elecrow Facebook group too. If you want, we can make a user friendly panel (easily depanelizable) or a set of separate PCB's. You could sell it as a DIY kit (maybe together with ws2812 led/Arduino). The customer will have to solder the boards together.

  Click here to download the Gerber file.

  Click here to watch the video for this Christmas tree PCB decoration.



  Designed by Adrian Virna; PCB manufactured by Elecrow.

• Rudolph_V2 designed by Rick P.

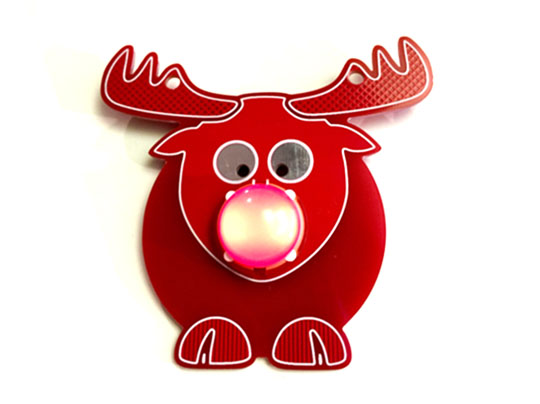

  This Rudolph_V2 PCB shared at Elecrow Facebook group too. The parts list include: 1x Lite-On LTJ-811HR (LED) 1x Line BAT-HLD-001 (Battery holder) 6x 100Ohm 0805 SMD Resistor

  Click here to download the Gerber file.



  Designed by Rick P.; PCB manufactured by Elecrow.


• Christmas tree PCB decoration designed by Yoshiki Nomura

  This Christmas tree decoration is really awesome and widely welcomed on Twitter.

  Click here to download the Gerber file.



  Designed by Yoshiki Nomura; PCB manufactured at Elecrow.

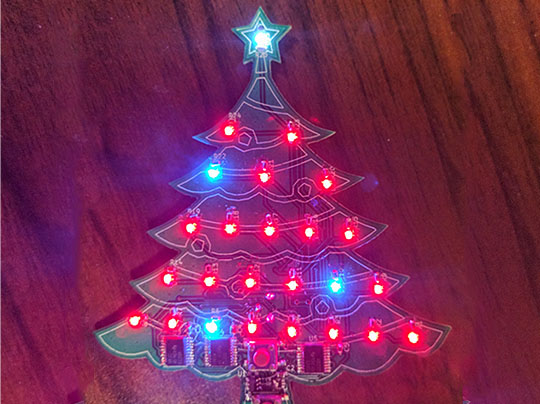

• Christmas PCB Tree by Pičugins Arsenijs

  This Christmas PCB tree is designed by Pičugins Arsenijs.

  Click to download the Circuit Gerber File.

  Visit this page for more details.



  Designed by Pičugins Arsenijs; PCB manufactured by Elecrow.


• Holiday Tree2 Ornament by Alex Grede

  Tree Ornament with advent calendar function. KiCAD files provided and Gerber files for making PCB. Resistor values change depending on LED used. The reset button needs to be a normally off switch. Shorting pins removing U2 (NC7WZ14) and shorting the pads for pins 4,5,6 removes the reset.

  Click to download the Circuit Gerber File.

  Visit the GitHub for more details.



  Designed by Alex Grede; PCB manufactured by Elecrow.

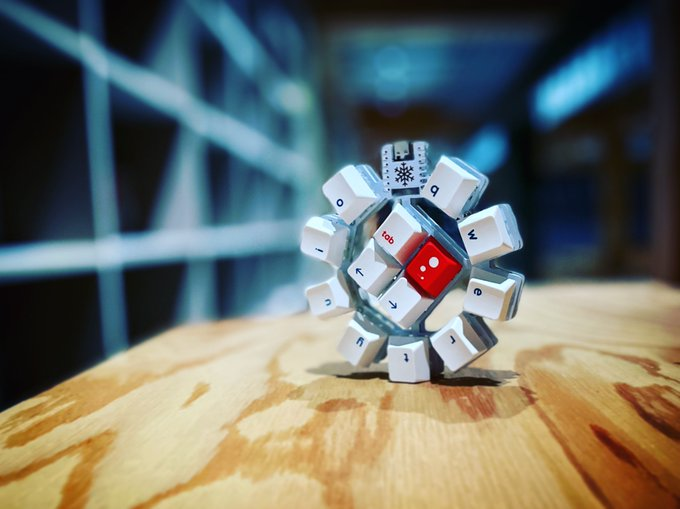

• Snowflake keyboard designed by takashicompany

  The Snowflake keyboard was inspired by a portable small keyboard，same as the Arrows Plus. To get started, please prepare 13 key switches and keycaps.

  Click here to download the Gerber file.



  Designed by takashicompany; PCB manufactured by Elecrow.
