Crowtail- Anemometer 2.0

Rating:
0% of 100
SKU
CT010369A
Weight
260 g
Availability
Out of stock
$39.00

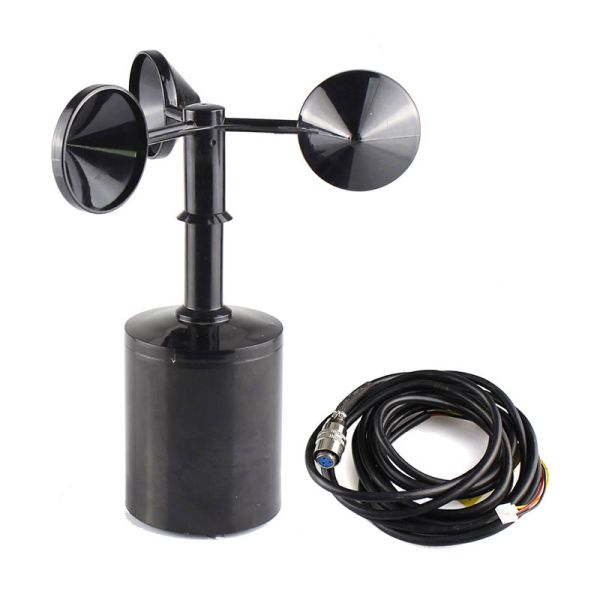

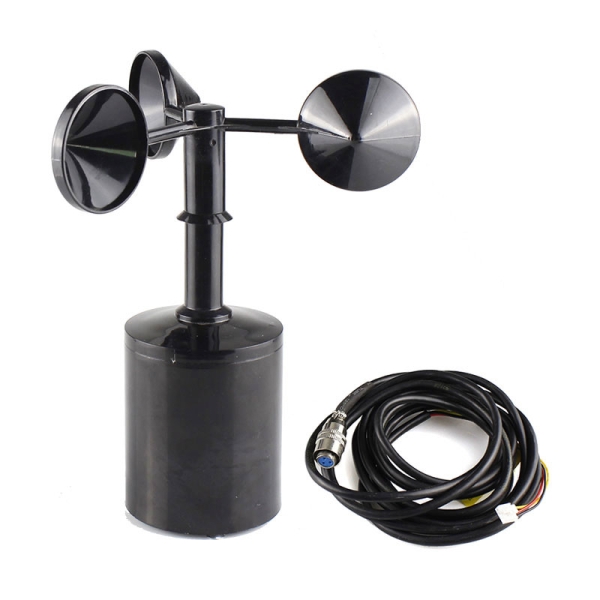

An anemometer is a device used for measuring wind speed, and is a common weather station instrument. This well made anemometer is designed to sit outside and measure wind speed with ease. Now we add a crowtail interface to it so that we can use it with our crowduino. The sensor is rugged, and easy to mount. The cable can easily disconnect with a few twists and has a weatherproof connector.
  • W = 0; (f = 0)
  • X = 0.1 + 0.0875 × f (f ≠ 0)
  • (W: wind speed indication (m / s); f: the frequency of the pulse signal)
  • Features

    • Output type: Pulse
    • Power supply: DC5v
    • Cable length: 2.5M
    • Load capacity: current-output impedance ≤600Ω; voltage-output impedance ≥1KΩ
    • Degree of protection: IP45
    • Working Environment: Temperature -40 ℃ ~ 50 ℃ humidity ≤100% RH

    Specifications

    • Mounting Hole: 4mm
    • Distribution diameter: 62.5mm

    Package list

    • Crowtail- Anemometer x 1
