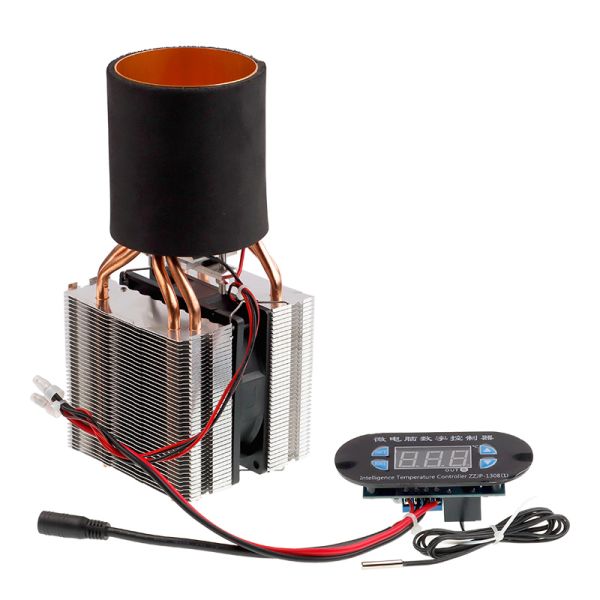

Electronic Semiconductor Refrigeration Module DIY Cooler Cooling System Kit

In stock

Semiconductor refrigeration is a kind of refrigeration technology that produces negative thermal resistance, which is characterized by non-moving parts and high reliability. Semiconductor Refrigerator can be refrigeration and freezing, can make cold drinks, frozen cans, milk tea, water, etc.

This semiconductor refrigeration module can be refrigerated to freezing and can freeze Coke to 0.5 degrees.  it is power-saving and the low noise. our materials are the better material in similar products and can be used for a long time with electricity. Applicable to cooling small rooms, air cooling dehumidification, learning semiconductor refrigeration theory, etc, and You can use it to DIY a small fridge, mini air conditioner or cooling device.


  • Comes with a container, easy to use, freeze water into ice cubes

  • Stable work and low noise, no refrigerant required, fast cooling speed and freeze large ice cubes

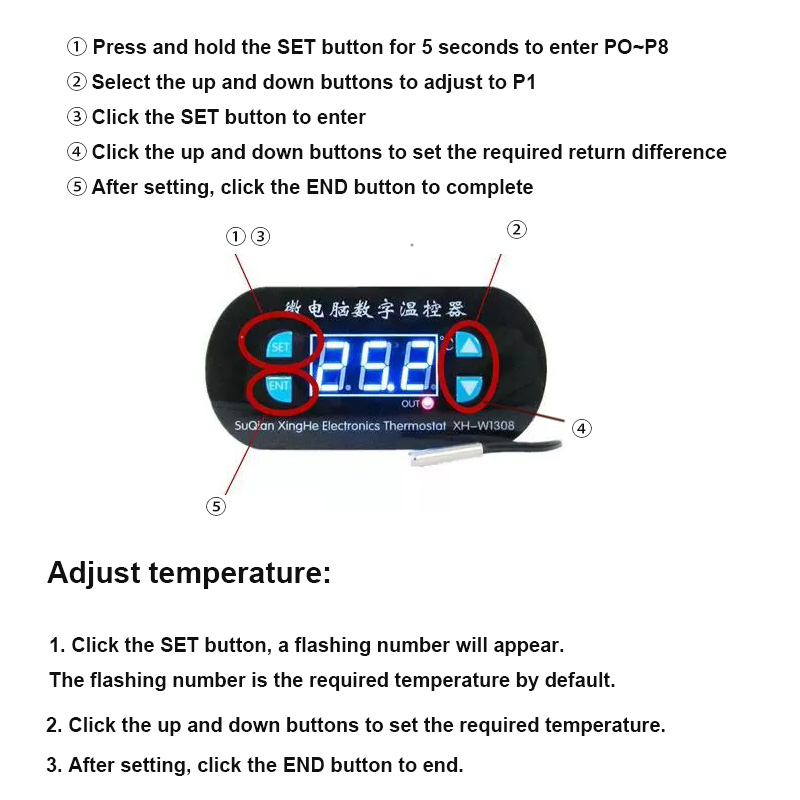

  • Simple operation, strong practicability, used with temperature control, it can be frozen to the temperature you want

  • With a container, safe and convenient


  • Product electrical characteristics:

  • Temperature measurement range: -55℃~120℃

  • Measurement accuracy: +0.1℃

  • Control accuracy: 0.1℃

  • Backlash accuracy: 0.1℃

  • Refresh rate: 0.2s

  • Input voltage: DC12V/24V/220V (optional)

  • Measurement input: NTC (10KO.5%)

  • Output: one 10A relay

  • Environmental requirements: -10℃--60℃; humidity 20%--85%

  • Size: 71mm (length) * 41mm (width)

  • Power consumption of the whole machine: quiescent current ≤40MA; pull-in current: ≤65MA

  • Size: 9.5*10*14cm

  • Weight: 542g

  • Voltage: 12V

  • Cup size: 9*7.5*8.5 cm


  • Don't take out the screws and nuts on top.

  • If the cup leaks, please stop using it in time.

  • Only support 12V power, do not use other voltages.

  • Adding a little water to the cup is good for drying and accelerating cooling.

Package List:

1 x Semiconductor Refrigeration Module

1 x Charger

1 x Temperature Controller
