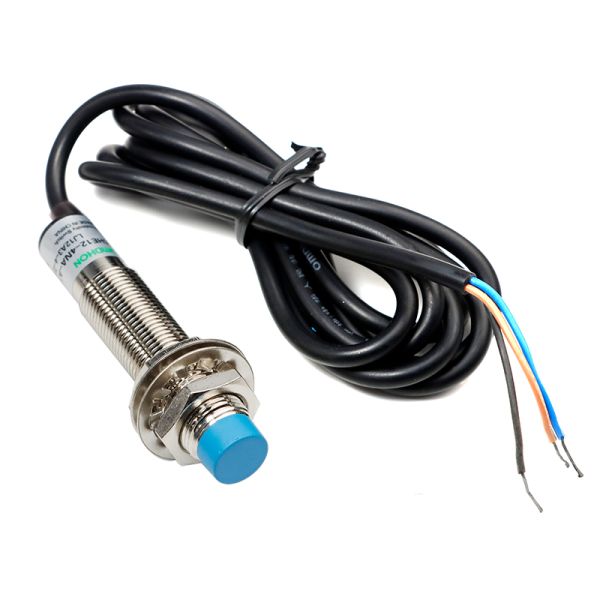

4MM Inductive Metal Proximity Sensor Physical Monitor :Elecrow bazaar, Make your making Electronic modules projects easy

Details

Metal Proximity Sensor, which is also called non-contact proximity switch, it is composed of generator and shaping amplifier oscillator vibration in the switch after induction head, and produces an alternating magnetic field when the metal body detected.
This Inductive Proximity Sensor has high sensitivity, fast frequency response, high repeat positioning accuracy and also stability and reliable, it can detects metal components in 0~4mm distance, and is widely used in modern industry, such as machinery, metallurgy, transportation, electric power, military industry and so on.

Specification

Working Voltage:DC 5~36V;
Probe Demension: 12mm diameter;
Sensoring Distance: 0~4mm
the output signal: Low
Output Type: PNP

Usage

Color Brown<-> VCC; Color Blue<-> GND; Color Black<-> Output Signal;
