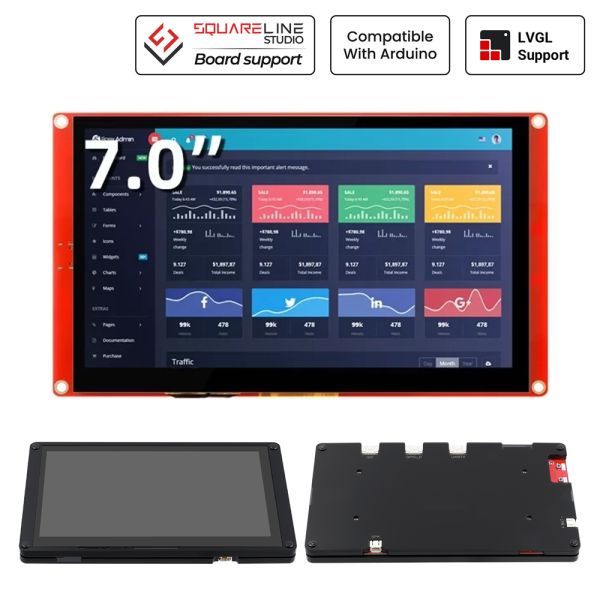

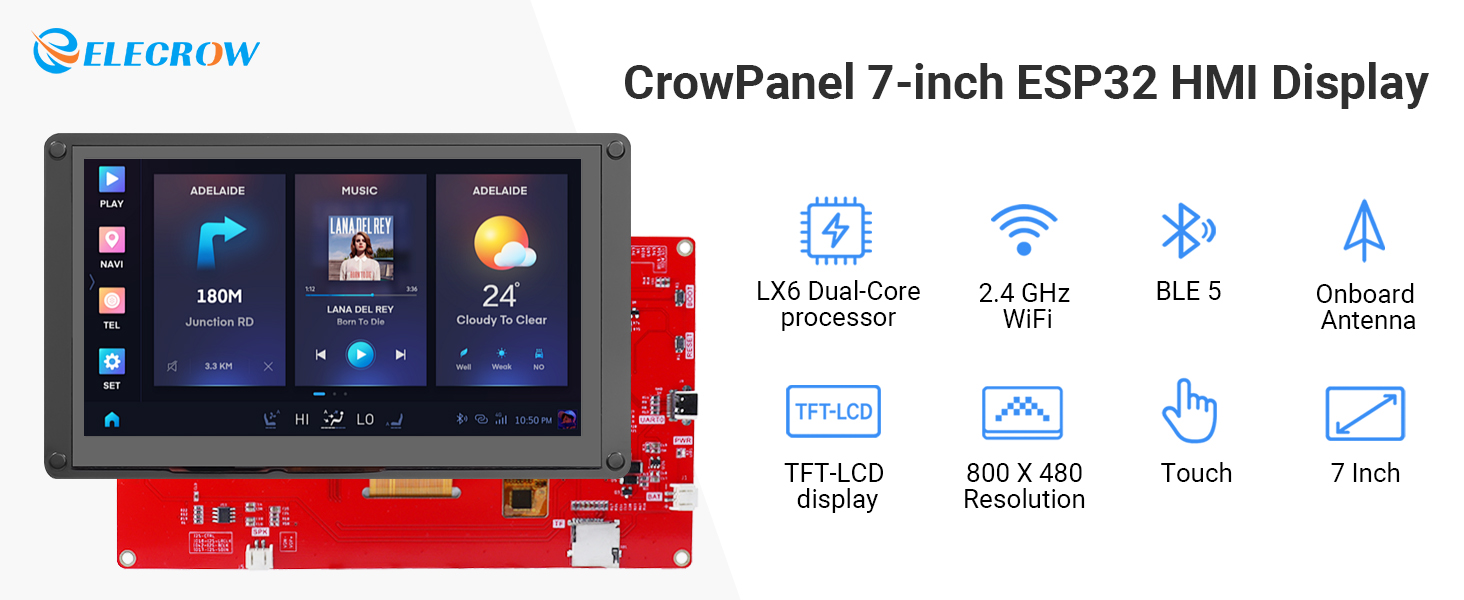

Elecrow ESP32 Display 7.0-inch module is a powerful HMI touch screen with 800*480 resolution LCD display. It uses the ESP32-S3-WROOM-1-N4R8 module as the main control processor, with a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth wireless functions, a main frequency of up to 240MHz, providing powerful performance and versatile applications, suitable for IoT application devices and other scenes.
The module includes a 7.0-inch LCD display and a driver board. The display screen uses a capacitive touch technology and the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities. It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, Micro Python, and is compatible with the LVGL graphics library. Additionally, it provides 16 learning tutorials and a wealth of open-source learning materials. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.
The ESP32 Display 7.0-inch module is suitable for a wide range of scenes such as automotive HMI, medical equipment, industrial control, power, civil electronics, automation, GPS, new energy, and IoT application devices. Its various interfaces and expansion functions make it able to meet the needs of different fields, providing users with a more comprehensive solution.
Customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com
Support multiple development environments.
It supports a variety of development environments such as Arduino IDE, Espressif IDF, Lua RTOS, Esphome-Homeassistant, PlatformIO, and Micro Python, to meet the needs of different developers and make every project possible.
Support open-source Graphics Library-LVGL

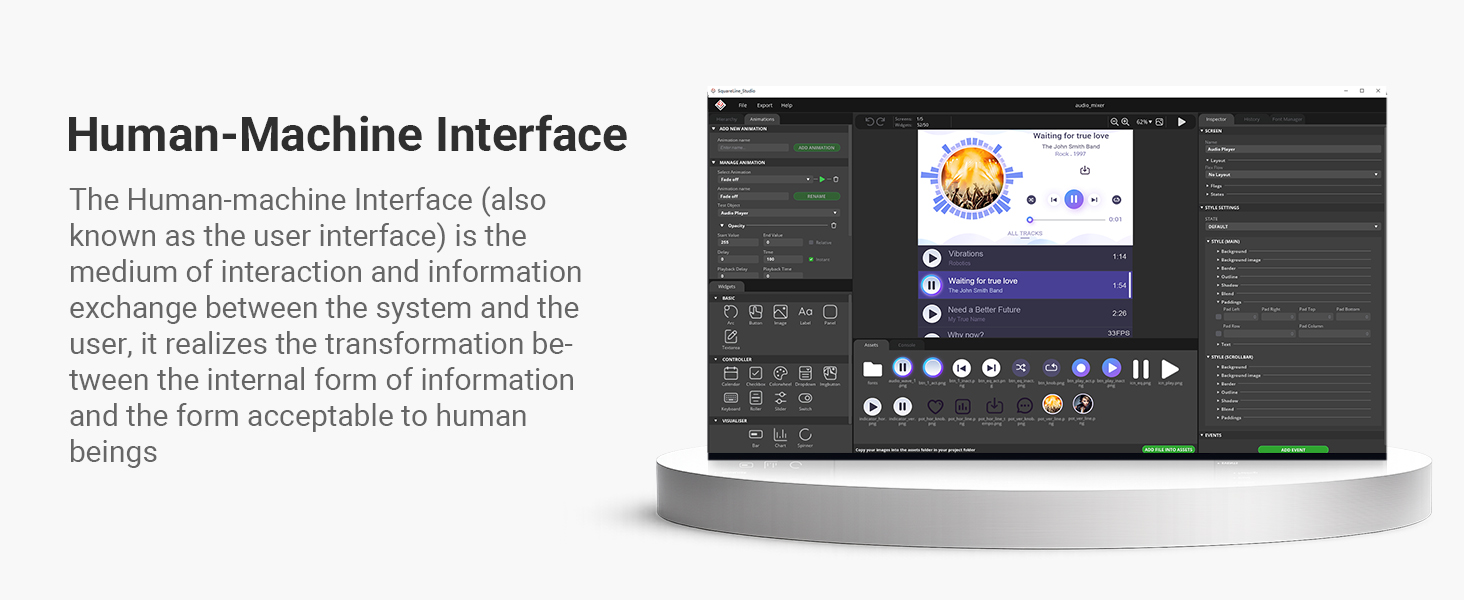

It supports the LVGL graphics library. You can use the drag-and-drop UI editor to design and implement your own UI. (The picture below is LVGL official UI design software Squareline studio)
Feature
- Integrated ESP32-S3 module,built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5.0;
- Support development environment Arduino IDE, Espressif IDF, Lua RTOS, Esphome-homeassistant/PlatformIO/Micro python and compatible with LVGL graphics library;
- Built-in LVGL demo interface and Arduino example, plug and play;
- LCD 800*480 7.0 inches TFT-LCD with driver IC EK9716BD3 + EK73002ACGB;
- Rich peripheral interfaces and expansion functions enable it to meet the needs of different fields.
ESP32 Display Comparison
Size |
||||||
Resolution |
240*320 |
240*320 |
320*480 |
480*272 |
800*480 |
800*480 |
Touch Type |
Resistive Touch |
Resistive Touch |
Resistive Touch |
Resistive Touch |
Capacitive Touch |
Capacitive Touch |
Main Processor |
ESP32-WROOM-32-N4 |
ESP32-WROOM-32-N4 |
ESP32-WROOM-32-N4 |
ESP32-S3-WROOM-1-N4R2 |
ESP32-S3-WROOM-1-N4R8 |
ESP32-S3-WROOM-1-N4R8 |
Frequency |
240 MHz |
240 MHz |
240 MHz |
240 MHz |
240 MHz |
240 MHz |
Flash |
4MB |
4MB |
4MB |
4MB |
4MB |
4MB |
SRAM |
520KB |
520KB |
520KB |
512KB |
512KB |
512KB |
ROM |
448KB |
448KB |
448KB |
384KB |
384KB |
384KB |
PSRAM |
/ |
/ |
/ |
2MB |
8MB |
8MB |
Display Driver |
ILI9341V |
ILI9341V |
ILI9488 |
NV3047 |
ILI6122 & ILI5960 |
EK9716BD3 & EK73002ACGB |
Screen Type |
TFT |
TFT |
TFT |
TFT |
TFT |
TFT |
Interface |
1*UART0,1*UART1,1*I2C, 1*GPIO,1*Battery |
1*UART0,1*UART1,1*I2C, 1*GPIO,1*Battery |
1*UART0,1*UART1,1*I2C, 1*GPIO,1*Battery |
1*UART0,1*UART1, 1*GPIO,1*Battery |
2*UART0,1*GPIO, 1*Battery |
2*UART0,1*GPIO,1*Battery |
Speaker Jack |
YES |
YES |
YES |
YES |
YES |
YES |
TF Card Slot |
YES |
YES |
YES |
YES |
YES |
YES |
Active Area |
36.72*48.96mm(W*H) |
43.2*57.6mm(W*H) |
48.96*73.44mm(W*H) |
95.04*53.86mm(W*H) |
108*64.8mm(W*H) |
153.84*85.63mm(W*H) |
Specification
- Model: 7.0 inch -ESP32 display
- Main Processor: ESP32-S3-WROOM-1-N4R8
- Resolution: 800*480
- Flash: 4MB
- PSRAM:8MB
- ColorDepth: 16M
- Touch Type: Capacitive Touch Screen
- Touch Panel: TN Panel
- Screen: TFT-LCD Screen
- Display driver: EK9716BD3 & EK73002ACGB
- External power supply: DC5V-2A
- Interface: 2*UART0,1*GPIO,1*Battery
- Button: BOOT Button and Reset Button
- Active Area: 153.84*85.63mm(W*H)
Package List
- 1x ESP32 Display 7.0 Inch module
- 1x USB-A to Type-C Cable
- 1x Crowtail/Grove to 4pin DuPont cable
Wiki & Documents
