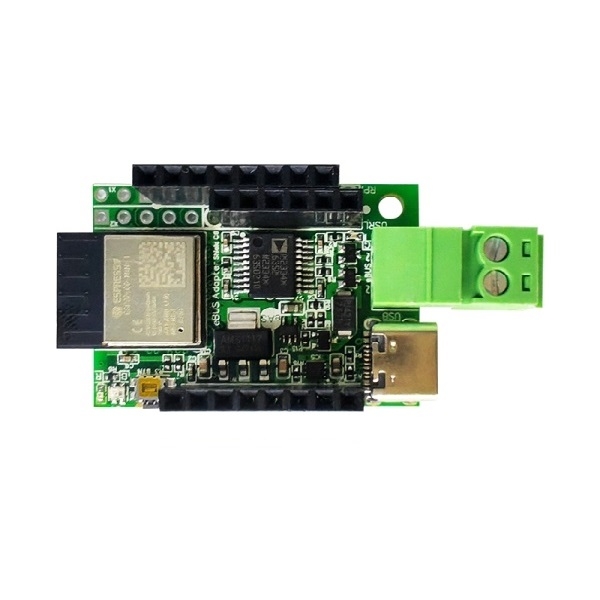

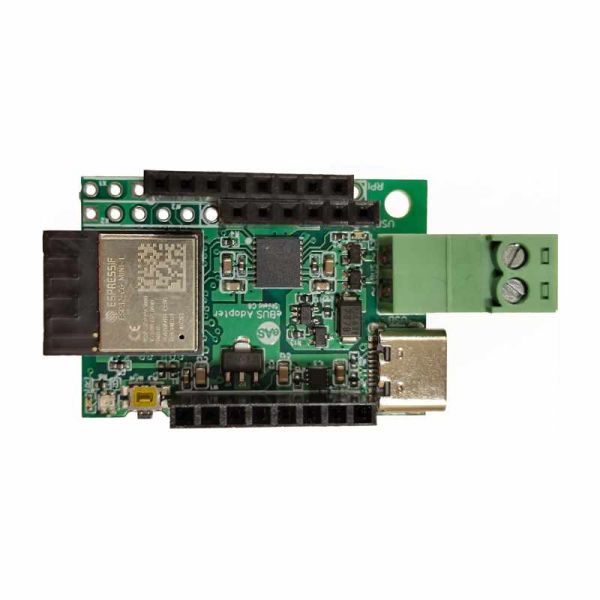

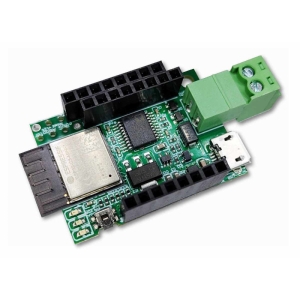

eBUS Adapter Shield C6

eBUS Adapter Shield C6 provides an interface to a 2-wire eBUS with galvanic isolation and thus enables communication with an eBUS enabled heating, ventilation or solar system.

It is an extended version of the previous adapter v5 and the continuation of previous designs with a significantly smaller footprint (37x26mm), pluggable eBUS connection, on-board WIFI by using an ESP32-C6, support for different Ethernet modules, and many more features.

Please also check the latest product eBUS Adapter Shield C5 as well as the alternative product eBUS Adapter Stick C6 and refer to the comparison table for the differences.

All details are on the documentation page: adapter.ebusd.eu/v5-c6

The v5 version of this interface was born to life early 2023 after several rounds of prototyping and is already in use by thousands of people. Since then, multiple design optimizations were performed including an eFuse for over voltage+current protection, and USB-C connection starting with the C6 version.

Features

• Full galvanic isolation with zero power drawn from eBUS (class 0 as of eBUS specification)
• Full support for integrated micro-ebusd option (requires an extra token)
• Flexible, configurable connection to ebusd on a host:
  • USB (builtin)
  • WIFI (builtin) with onboard PCB antenna
  • directly pluggable onto a Raspberry Pi
  • Ethernet (with addon module USR-ES1, see below)
• Full support for ebusd enhanced protocol
• Web-based configuration and updatability by free-of-cost firmware
• Measurement of own power consumption (on 5V supply, since PCB 2.44)
• Optional connection to sensors
• Optimized and built for use with ebusd

Specifications

• PCB: 4-layer SMD+THT, HASL lead free
• Chip: ESP32-C6 with onboard antenna
• Host/Power connector: USB-C (cable available as option)
• eBUS connector: pluggable 3.5 mm (plug included), polarization does not matter
• Dimension: 37mm x 26mm (without antenna/connectors), 54mm x 26mm (with antenna+plugged in eBUS connector)
• Operating voltage: 5V
• Operating current: <120mA with WIFI
• Protection: eFuse for over voltage and current protection
• Testing/QA: every adapter is fully tested under real conditions with an eBUS power source and communications
• Certification: tested to meet all requirements for CE marking

Addons

• USB-C cable/power supply:
  for power and/or communication to the host, e.g. this one or this one with power supply (required for all but Rasperry Pi GPIO mode)
• USR-ES1 module:
  for Ethernet connectivity, available as option, see above (no warranty and/or refund for this option; this is only made available for your convenience) or available from here (optional)

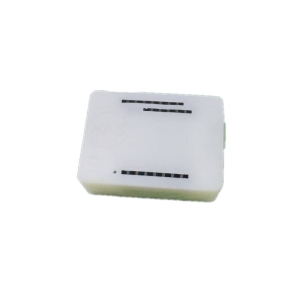

• Enclosure:
  available as option, see above or see here for printing yourself (optional)

Important note: An order for this item is only eligible for refund when the device is proven to be defective in hardware and this explicitly excludes all cases where the connected heating system does not have an eBUS at all or does not match the eBUS specification, any issue with the firmware including integrations built on top of it, as well as any eBUS message decoding or encoding issue.
