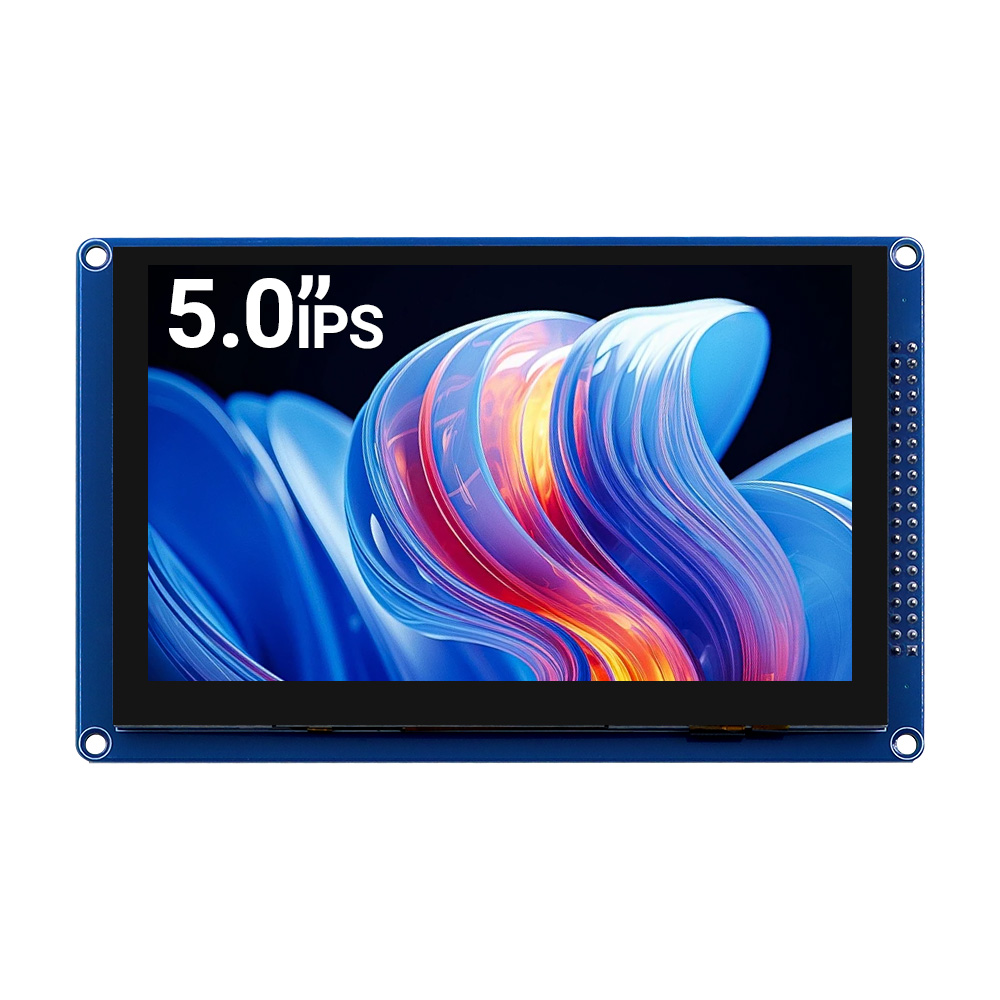

5.0” 800*480 IPS Display 16BIT Parallel LCD Module| SSD1963 Driver |Capacitive Touch
$31.90
Availability:
In stock
SKU
DLP33050B
Weight
170g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
[5.0” IPS Touch Screen] With 800x480 resolution, supports capacitive touch
[Flexible interface] Using 16-bit parallel bus transmission with fast transfer speed and supporting SPI flash
[Backlight Control] Supports two methods to control the backlight(GPIO control, PWM control)
[SD Card Slot] Comes with an SD card slot, supports expanding storage
Description
This 5.0-inch module is equipped with an IPS screen, provides a high resolution of 800x480, supports 16BIT RGB 65K color display, and can present colorful and delicate images and text.
This display has a capacitive touchscreen that provides accurate and flexible touch response.
Its 16-bit parallel bus design ensures the high speed and stability of data transmission, improving system response and operation efficiency.
The module supports SPI FLASH and SD card expansion, and comes with an SD card slot, providing users with a flexible storage solution to meet the storage space requirements of different projects.
It also supports two backlight control methods: GPIO and PWM control. Users can choose according to specific requirements to balance energy efficiency and functionality.
No matter you are a beginner or a senior developer, you can quickly get started and easily start the project development journey.
We provide rich example learning programs, covering a variety of mainstream development platforms such as STM32 and C51.
We also provide underlying driver technology support, making it ideal for applications in intelligent hardware development and industrial automation applications.
This 5.0-inch module offers a stable, efficient, and convenient display solution, perfect for your development needs.
Customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com
Application Scenario
Feature
- 5.0-inch color screen, supporting 16bit RGB 65K color display
- IPS screen with 800x480 resolution, provides clear display
- Capacitive touch supports a sensitive response
- Support 16-bit parallel bus transmission with fast transfer speed
- Support SPI flash
- With an SD card slot, convenient for expanding storage
- Support two backlight control modes (GPIO control, PWM control)
- Provides a rich sample program for STM32 and C51 platforms
- Provide underlying driver technical support
Specification
|
Screen Size |
5.0(inch) |
|
Display Color |
16BIT RGB 65K color |
|
Screen Type |
IPS TFT |
|
Resolution |
800x480(pixels) |
|
Touch Screen Type |
Capacitive touch screen |
|
Driver IC |
SSD1963 |
|
Touch IC |
GT911 |
|
Module Interface |
16Bit parallel interface |
|
Operating Voltage |
3.3V |
|
IO Voltage |
3.3V |
|
Operating Temperature |
-10℃~60℃ |
|
Storage Temperature |
-20℃~70℃ |
|

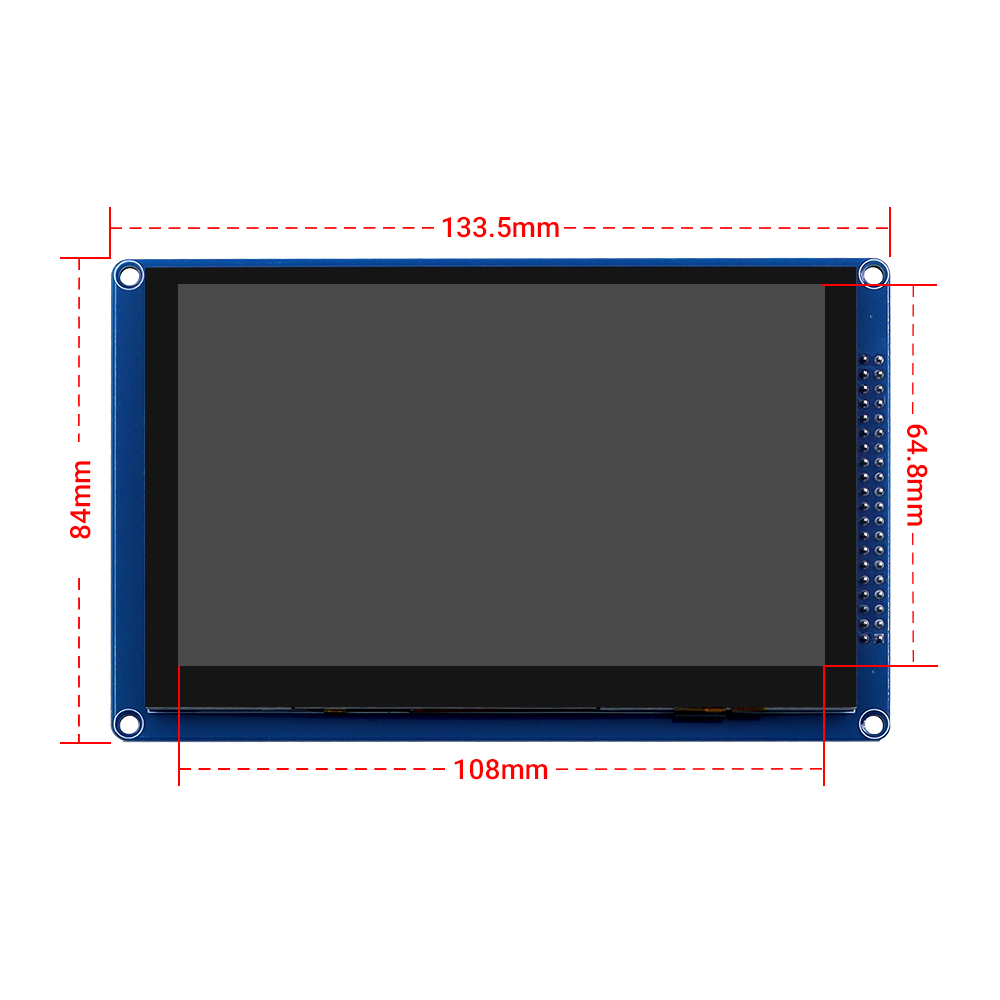

Active Area |
108.00x64.80(mm) |
|
Module PCB Size |
133.50x84.00(mm) |
Different Size Comparison
|
Screen Size |
|||
|
Display Color |
16BIT RGB 65K color |
16BIT RGB 65K color |
16BIT RGB 65K color |
|
Screen Type |
IPS TFT |
IPS TFT |
IPS TFT |
|
Resolution |
800x480(pixels) |
800x480(pixels) |
800x480(pixels) |
|
Touch Screen Type |
Capacitive touch screen |
Capacitive touch screen |
Capacitive touch screen |
|
Driver IC |
SSD1963 |
SSD1963 |
SSD1963 |
|
Touch IC |
GT911 |
GT911 |
GT911 |
|
Module Interface |
16Bit parallel interface |
16Bit parallel interface |
16Bit parallel interface |
|
Operating Voltage |
3.3V |
3.3V |
5V |
|
IO Voltage |
3.3V |
3.3V |
3.3V |
|
Operating Temperature |
-10℃~60℃ |
-10℃~60℃ |
-10℃~60℃ |
|
Storage Temperature |
-20℃~70℃ |
-20℃~70℃ |
-20℃~70℃ |
|
Active Area |
95.04x53.86(mm) |
108.00x64.80(mm) |
154.08x85.92(mm) |
|
Module PCB Size |
120.00x74.00(mm) |
133.50x84.00(mm) |
181.00x108.00(mm) |
ESP32 Pin Assignment
|
Number |
Pin Name |
Pin Name |
|
1 |
GND |
power ground pin |
|
2 |
3.3V |
power positive pin(connected to 3.3V) |
|
3 |
NC |
Undefined, reserved |
|
4 |
RS |
LCD register / data selection control pin (high level: register, low level: data) |
|
5 |
WR |
LCD write control pin |
|
6 |
RD |
LCD read control pin |
|
7~14 |
DB8 ~ DB15 |
LCD data bus high 8-bit pin |
|
15 |
CS |
LCD reset control pin( low level enable) |
|
16 |
F_CS |
SPI FLASH chip select control pin( low level enable) |
|
17 |
REST |
LCD reset control pin( low level reset) |
|
18 |
NC |
Undefined, reserved |
|
19 |
LED_A |
LCD backlight control pin(it needs to be used according to the selection) |
|
20 |
NC/INT |
Used as interrupt pin when connected to capacitive touch screen |
|
21~28 |
DB0~DB7 |
LCD data bus low 8-bit pin |
|
29 |
T_CLK |
No definition |
|
30 |
T_CS |
No definition |
|
31 |
T_DIN |
No definition |
|
32 |
NC/CRT |
Used as reset pin (low level reset) |
|
33 |
T_DO |
No definition |
|
34 |
T_IRQ |
No definition |
|
35 |
SD_DO |
SD card SDIO bus read data pin |
|
36 |
SD_CLK |
SD card SDIO bus clock pin |
|
37 |
SD_DIN |
SD card SDIO bus write data pin |
|
38 |
SD_CS |
SD card pin selection (low level enable) |
|
39 |
NC/SDA |
Used as IIC bus data pi |
|
40 |
NC/SCL |
Used as IIC bus clock pin |
Package List
- 1x 5.0 inch IPS Touch Display
