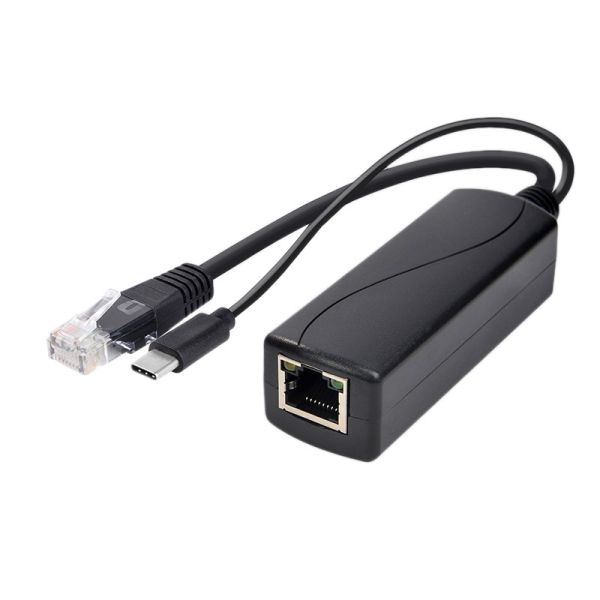

The PS5712-TypeC splitter is compliant with IEEE 802.3af standard, supports 10/100M data transmission, 5V DC voltage, easy to access PoE network for the non-PoE terminal.
Used in conjunction with IEEE 802.3af compliant power supply devices (such as PoE powered switches, PoE centralized power supplies, PoE powered transceivers, etc.), it provides both data and power for the non-PoE devices.
PS5712P splitter output 5V voltage, with the use of power supply equipment, can be flexibly expanded home network, office network.
Support the 1.5KV isolation circuit protection, which can effectively protect electrical equipment.
Specification
Model: PS5712-TypeC
1 x 10/100Mbps RJ45 port
Data Transfer Rate: 10/100M
PoE input voltage: 44-57V
DC block voltage output: 5V
DC block current output: 2.4A (MAX)
LED indicator: PoE input power indicator
Support IEEE 802.3af Power over Ethernet standard (15.4W)
Power supply mode: Support 1/2(+),3/6(-);4/5(+),7/8(-) power supply mode
Interface: One input RJ45 connector; one output RJ45 crystal header; one TypeC male connector
