2.2inch TFT LCD Color Screen Display Module 240X320 Serial Port

SKU
DIS25400R
In stock
$19.99
-
+
With this product, you earn 20 loyalty points.
Overview

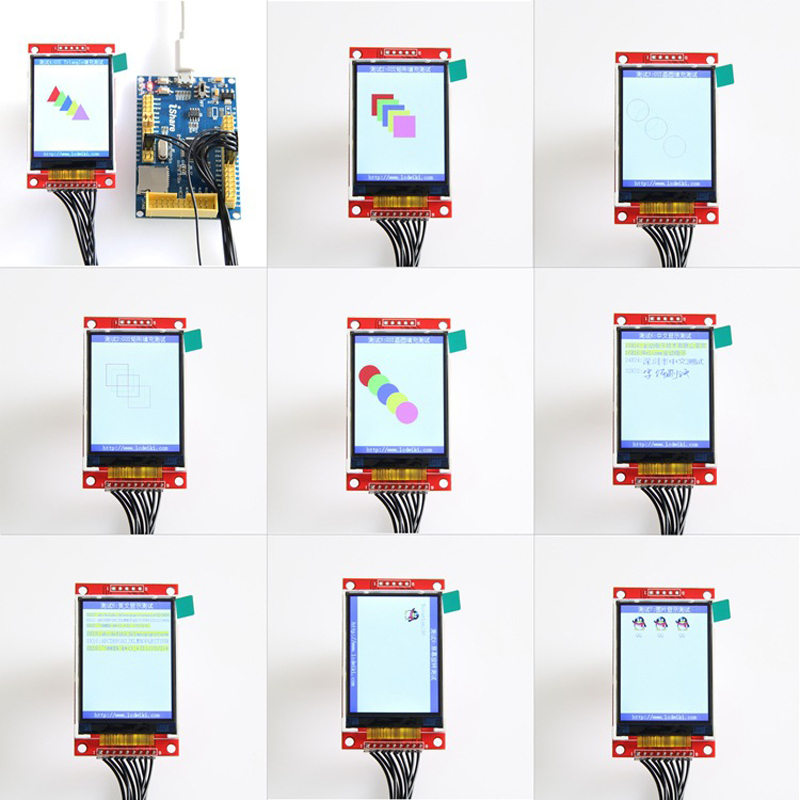

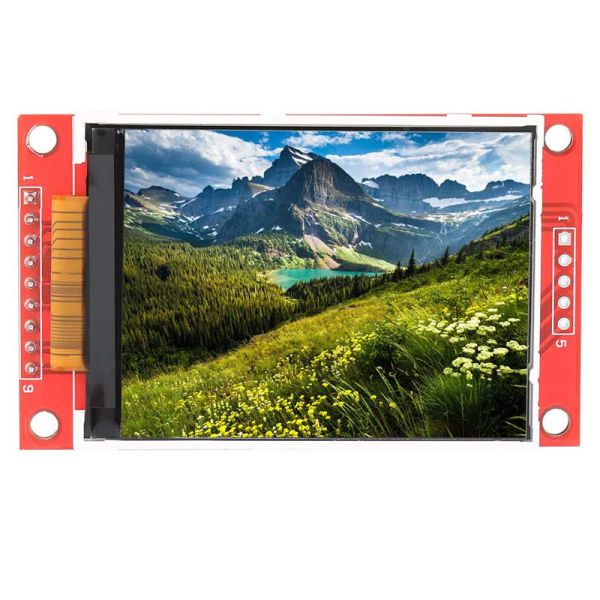

This 2.2-inch LCD module with a resolution of 240X320. It only requires 5 IOs to lighten the display, or a direct hardware serial peripheral interface that can be driven. LCD color screen display has SMT reflow and industrial control quality, which can work stably for a long time.

This 2.2-inch LCD module with a resolution of 240X320. It only requires 5 IOs to lighten the display, or a direct hardware serial peripheral interface that can be driven. LCD color screen display has SMT reflow and industrial control quality, which can work stably for a long time.



Feature:

  • 2.2-inch color screen, support 65K color display, display rich colors

  • 320X240 resolution, clear display

  • Using the SPI serial bus, it only takes a few IOs to illuminate the display

  • Easy to expand the experiment with an SD card slot

  • Provide a rich sample program

  • Military-grade process standards, long-term stable work

  • Provide underlying driver technical support

Specification:

Name Parameter
Display Color RGB 65K color
SKU MSP2202
Screen Size  2.2(inch)
Type TFT
Driver IC ILI9341
Resolution 320*240 (Pixel)
Module Interface 4-wire SPI interface
Active Area (AA area) 33.84x45.12(mm)
Module PCB Size 40.10x67.20(mm)
Operating Temperature -20℃~60℃
Storage Temperature -30℃~70℃
VCC power voltage 3.3V~5V
Logic IO port voltage 3.3V(TTL)
Power Consumption TBD
Rough Weight(Package containing) 22(g)

 Interface Detail:

Number Pin Label Description
1 VCC 5V/3.3V power input
2 GND Ground
3 CS LCD chip select signal, low level enable
4 RESET LCD reset signal, low level reset
5 DC/RS LCD register / data selection signal,

high level: register, low level: data

6 SDI/MOSI SPI bus write data signal
7 SCK SPI bus clock signal
8 LED Backlight control, high level lighting,

if not controlled, connect 3.3V always bright

9 SDO/MISO SPI bus read data signal, if you do not need the read function, you can not connect it



Package list:

1* 2.2inch TFT LCD Color Screen Display
