【LR1302 Module】Easily and quickly build your own LoRaWAN gateway and connect it to the cloud

【EU868】SPI interface, compatible with US915 frequency band

【Powerful Function】Adopts Semtech® SX1302 baseband LoRa® chip, extremely low power consumption and excellent performance;

【8-channel data transmission】Supports 8-channel data transmission, providing more efficient communication efficiency and capacity;

【CE Certification】

Description

Note: If you need the US915, please click here.

This LR1302 module is a new generation LoRaWAN® gateway module. It adopts a mini-PCIe form factor design and features low power consumption and high performance. Based on Semtech Network's SX1302 LoRaWAN® baseband chip, the LR1302 gateway module provides gateway products with potential capacity for long-distance wireless transmission. Compared to the previous SX1301 and SX1308 LoRa chips, the SX1302 chip has higher sensitivity, lower power consumption and lower operating temperature. It supports 8-channel data transmission, improves communication efficiency and capacity, and supports the connection and data transmission of more devices.

It reserves two antenna interfaces, one for transmitting and receiving LoRa signals and one U.FL (IPEX) interface for independent transmission. It also has a metal shield to protect against external interference and provide a reliable communications environment.

The LR1302 LoRaWAN® gateway module is available in SPI and USB versions, covering the US915 and EU868 frequency bands, giving you a choice of LoRaWAN® frequency solutions, including EU868 and US915.

Designed specifically for the IoT space, the LR1302 is suitable for a variety of IoT applications. Whether used in smart cities, agriculture, industrial automation or other fields, the LR1302 module can provide reliable connections and efficient data transmission.

Support multiple channels for smoother communication.

Lorawann gateway supports 8 channels

Lora gateway application

LR1302 EU868 gateway moduleSX1302 long rang gateway

Application Example

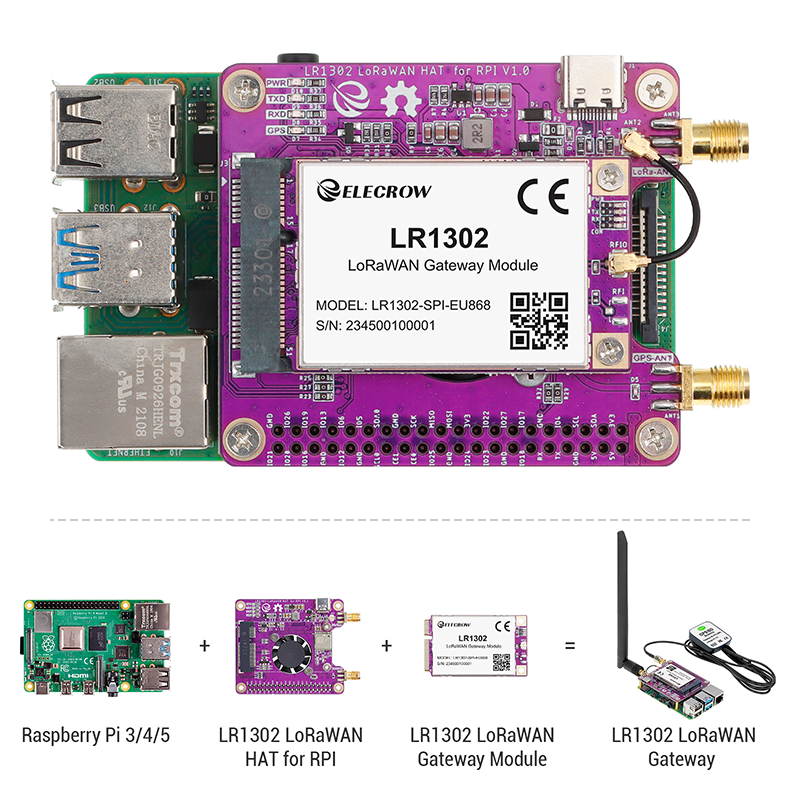

LR1302 Lorawan gateway module

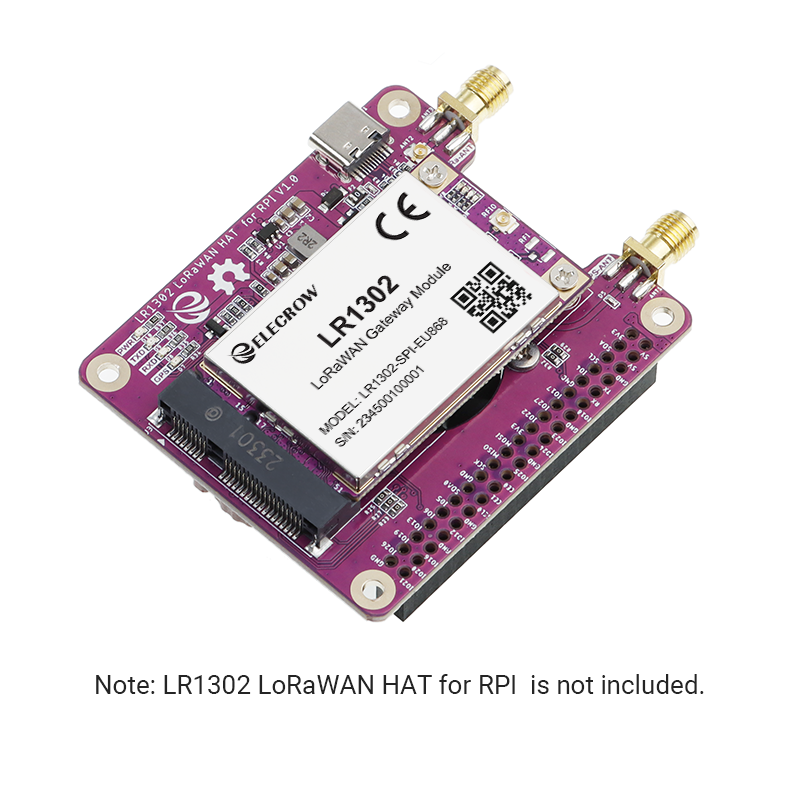

Note: It doesn’t include Raspberry Pi, GPS, Gateway HAT, IPEX and antenna.

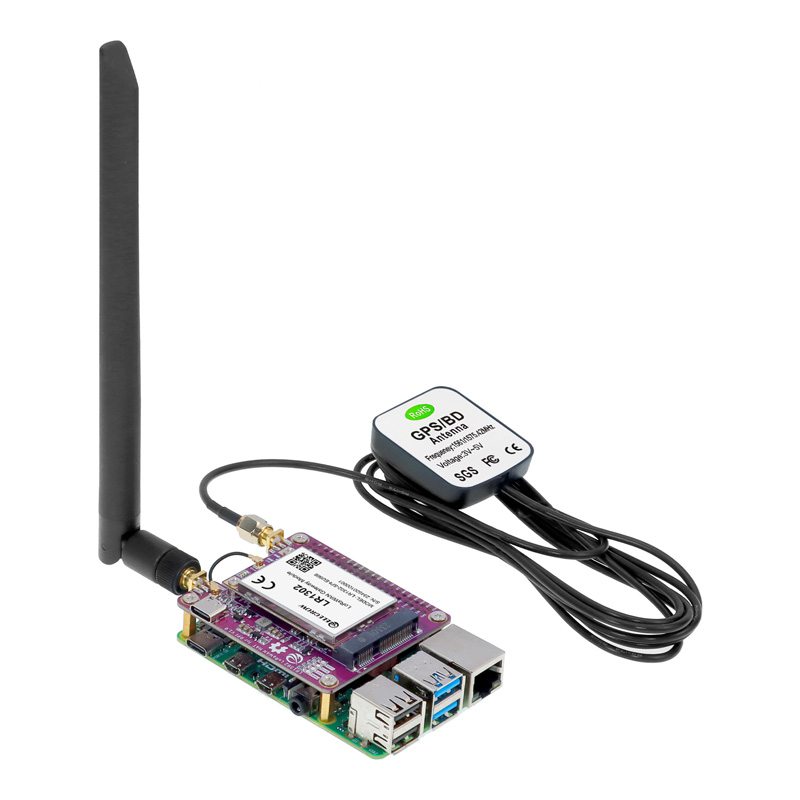

LR1302 lorawan gateway

Feature

  • Uses Semtech® SX1302 baseband LoRa® chip with extremely low power consumption and excellent performance;
  • Mini-PCIe form factor and compact design make it easier to integrate into various gateway devices, suitable for space-constrained application scenarios, and provide flexible deployment options;
  • Support 8-channel data transmission, provide more efficient communication efficiency and capacity;
  • Ultra-low operating temperature eliminates the need for additional cooling and reduces the size of the LoRaWAN® gateway;
  • Uses SX1250 TX/RX front end with sensitivity down to -139 dBm@SF12; TX power up to 26 dBm @3.3V;
  • CE certification simplifies the certification process of the final product and provides convenience for certification.





Specification

Region

EU868

US915

Frequency

863-870MHz

902-928MHz

Chip set

Semtech SX1302 Chip

Sensitivity

-125dBm @125K/SF7
-139dBm @125K/SF12

-125dBm @125K/SF7
-139dBm @125K/SF12

TX Power

26 dBm (with 3.3V power supply)

25 dBm (with 3.3V power supply)

Bandwidth

125/250/500 kHz

Channel

8 channel

LEDs

Power: Green  Config: Red TX: Green RX: Blue

Form Factor

Mini PCIe, 52pin Golden Finger

Power Consumption (SPI version)

Standby: 7.5 mA
TX maximum power: 415 mA
RX: 40 mA

Power Consumption (USB version)

Standby: 20 mA
TX maximum power: 425 mA
RX: 53 mA

LBT(Listen Before Talk)

Support

Antenna Connector

U.FL

Operating Temperature

-40°C to 85°C

Dimensions

30 mm (width) × 50.95 mm (length)





Hardware Overview

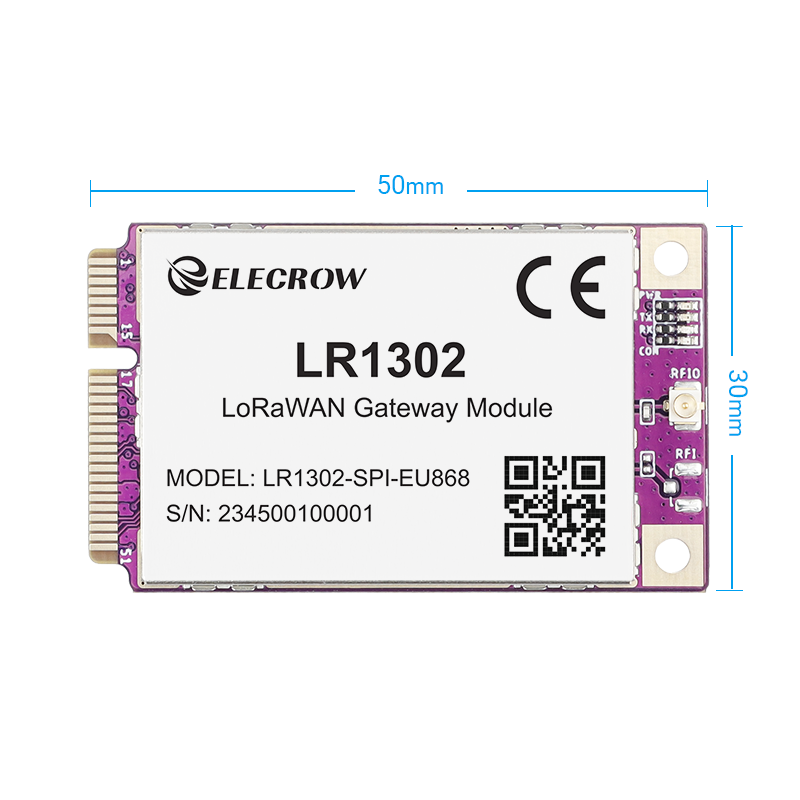

SX1302 LORA module overview



Interface Function

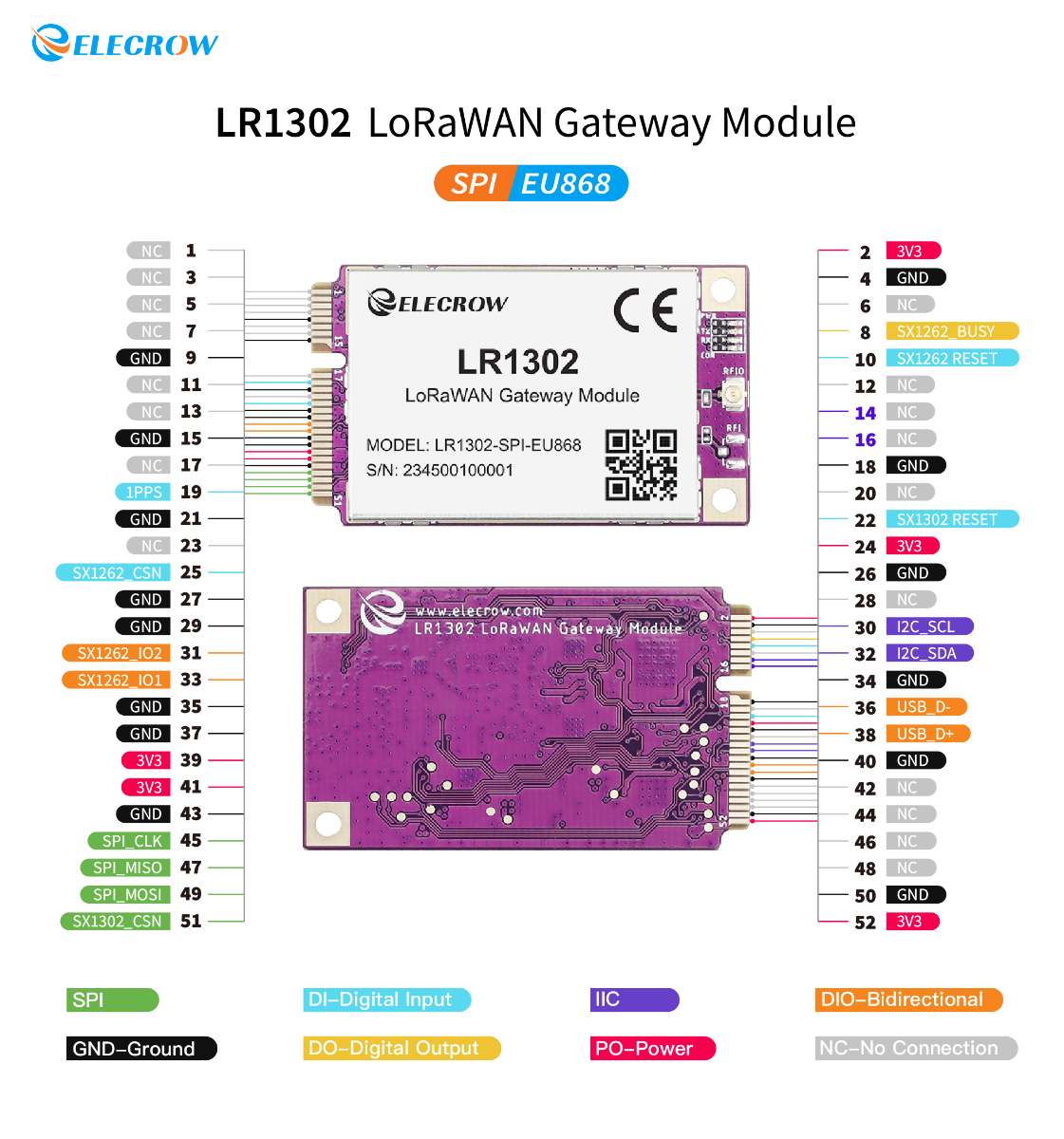

lorawan module interface function

Package List

  • 1x LR1302 LoRaWan Gateway-EU868
