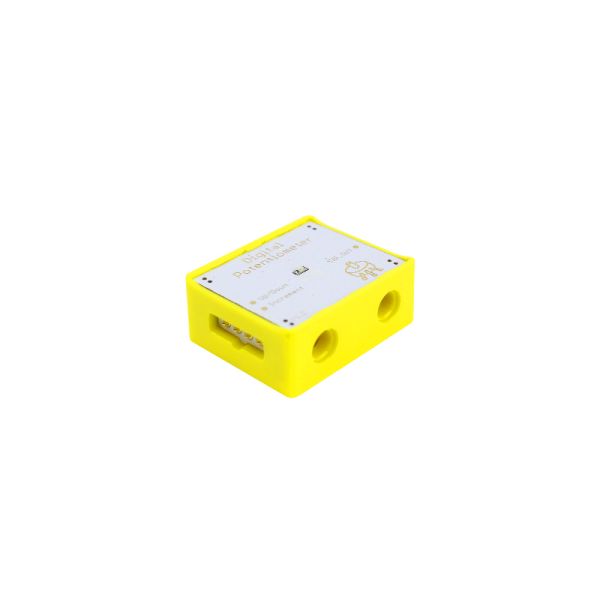

Crowbits-Digital Potentiometer

SKU
CRB0057S
In stock
$7.50
Weight
15
-
+
With this product, you earn 8 loyalty points.
Overview

The digital potentiomete can be adjusted by a digital signal, it acts as a linear potentiometer, the circuit is controlled by adjusting the resistance in the circuit, but this is controlled by a digital signal.

The digital potentiometer can be adjusted by a digital signal, it acts as a linear potentiometer, the circuit is controlled by adjusting the resistance in the circuit, but this is controlled by a digital signal.





How does it work?

The module is composed of input control, counter and decoder, non-volatile memory and resistor array. The input control part is similar to a reversible counter. After the output of the counter is decoded, a single-contact electronic switch is turned on, thus putting A point on the resistance array is connected to the sliding output terminal, the code value of the counter decoding output is different, and the point of the resistance array after the decoding output is also different in the position of the array so that the resistance of potentiometer can be controlled by a digital signal.





How to use it?

Try to adjust the brightness of the lamp with a digital potentiometer!





Specification:

Operating Voltage: 3.3V DC

Dimensions: 31.5(L)*24.5(W)*13(H)mm





Wiki & External links

Wiki
