Description

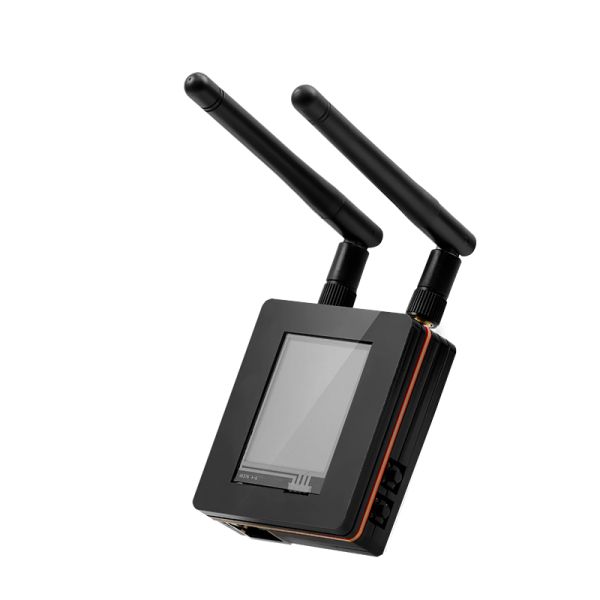

LoRaWan technology is a new and increasingly in-demand technology that has been widely applied in the field of the Internet of Things, especially in the industrial and agricultural sectors. This latest design of a single-channel gateway is the best initial device choice for learning and accessing Lorawan networks. It is designed to provide internet connectivity for our Lora series products.

It uses ESP32-WROOM-32 as the main controller, with Ra-01H module as the Lora RF transceiver module, and has two firmware versions available for different frequency bands (868MHz and 915MHz). The ESP-WROOM-32 itself supports WiFi and Ethernet interfaces and can connect to the TTN backend network to enable gateway settings and data transmission monitoring.

It supports Lorawan 1.0.3 and is compatible with other Lorawan sensors. When combined with sensor nodes and The Things Network cloud control panel, it can form a complete Lorawan sensor acquisition system.

In addition, we have equipped it with a 1.8-inch resistive touch screen with a resolution of 128x160, which uses an SPI interface. With this touch screen, it is more convenient to observe the gateway's data transmission status, check the IP data obtained by the gateway, etc. This module is powered and programmed through a Type-C interface, and it also has red and blue indicator lights showing its working and data transmission status. Equipped with the 2.5Dbi antenna, it can achieve a communication distance of up to 1.5km in unobstructed and interference-free environments. Even in urban areas, the farthest distance can reach 0.7 km. Replacing the antenna with a higher gain one can achieve even longer communication distances. This device comes with an acrylic shell that not only has a small and exquisite design but also serves as a protective cover.

LoRaWan Gateway Module can be used with LoRa node modules, LoRa development boards, and other devices to build a LoRa WAN IoT network, providing a reliable communication solution for applications in smart homes, industry, and agriculture control, among others.

Feature

Uses ESP32 WROOM 32 as the main controller, with a dual-core 32-bit LX6 microprocessor from Xtensa, providing better performance.
Integrates RA-01H module supports frequency band: 803MHz - 930MHz.
Onboard 1.8-inch 128*160 SPI-TFT-LCD, ST7735S driver chip
Not only supports ESP32 WIFI network connection but also has a 10/100Mbps RJ45 interface that allows Ethernet connection
Compatible with Arduino and Micropython, making it easier for developers to create custom applications and functionality
Exquisite acrylic protective shell and small and portable design, making it easy to carry and use

Name	Definition
PWR	Red power indicator light, always on when powered on, off when powered off
DATA	Blue data indicator light, flashing when data is being sent and received, and off by default
RESET	Reset button. Press this button to reset the system.
BOOT	Download button, hold down the Boot button, and press the RESET button to start the firmware download mode. Users can download firmware through the USB interface
USB-C	USB-C interface, which is used as the power supply of the gateway module and the communication interface between the PC and ESP32
WIFI	ESP32 2.4G WIFI antenna SMA interface
LORA	868MHZ/915MHZ LORA antenna SMA interface
Ethernet	100Mbps Ethernet RJ45 interface

IO port definition

GPIO0	BOOT	GPIO1	TXD0	GPIO2	RXD0
GPIO3	RXD0	GPIO4	LCD_DC	GPIO5	DATA
GPIO6	NC	GPIO7	NC	GPIO8	NC
GPIO9	NC	GPIO10	NC	GPIO11	NC
GPIO12	RA_RST	GPIO13	RA_DIO1	GPIO14	RA_NSS
GPIO15	XP_CS	GPIO16	LCD_BLK	GPIO17	RMII_CLK
GPIO18	ETH_MDIO	GPIO19	RMII_TXD0	GPIO20	NC
GPIO21	RMII_TX_EN	GPIO22	RMII_TXD1	GPIO23	ETH_MDC
GPIO24	NC	GPIO25	RMII_RXD0	GPIO26	RMII_RXD1
GPIO27	RMII_CRS_DV	GPIO28	NC	GPIO29	NC
GPIO30	NC	GPIO31	NC	GPIO32	MOSI
GPIO33	SCK	GPIO34	RA_BUSY	GPIO35	MISO
GPIO36	NC	GPIO37	NC	GPIO38	C
GPIO39	PEN

Specification

Main Processor Chip	ESP32 WROOM32 with dual-core 32-bit LX6 microprocessor from Xtensa @ 240MHz
LoRa RF transceiver module	RA-01H
RA-01H Supports frequency band	803MHZ-930MHZ
RA-01H Support modulation method	FSK、GFSK、MSK、LoRa
Channel	Single channel
Support Lorawan protocol	Support Lorawan 1.0.3
WiFi Antenna	SMA 2.4G WiFi Antenna
Communication distance	Obstructed state: up to 1 km Unobstructed state: up to 1.8 kilometers
Development environment	Arduino/Micropython
Interface and function	1x USB-C interface, 1x Ethernet Interface, 1x Boot Button, 1x Reset Button, 2x Indicator Lights.
Working input voltage	USB DC-5V
Operating Temperature	-10°C ~ 65°C
Dimensions	65mm(L)x58mm(W)
