Crowbits-Logic Input

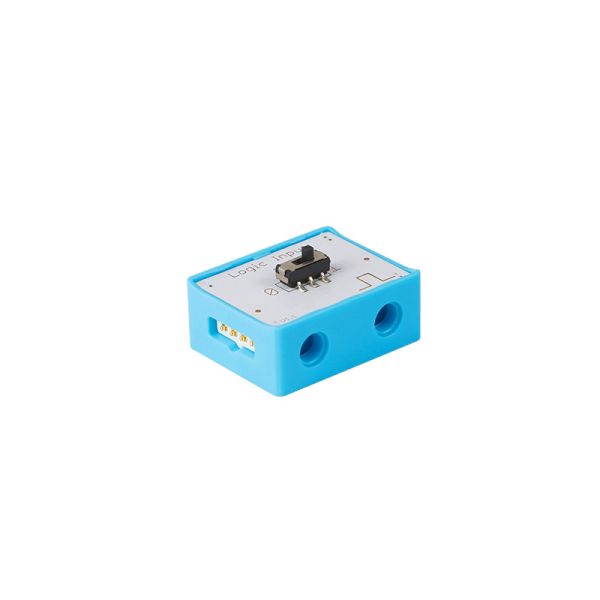

What is Crowbits-Logic Input?

The logic Input is a small and convenient way to input digital logic commands (high or low) into your circuit.

How does it work?

The logic input has two states, logic low and logic high (1 and 0). The number 0 on the board means logic low-level, the number 1 means logic high-level.

1. When sliding the switch to 1, it will output a logic high-level signal.
2. Otherwise, slide the switch to 0, it will output a logic low-level signal.

Use cases

You could connect multiple digital modules to the logic input component and decide using the switch if the module you’ve connected will receive a high-level signal or low-level signal.

This is very useful for applications that you would like to behave in a certain way, such as remain the logic high-level all the time, no programming skills or engineering is required.

Specification

• Operating Voltage: 3.3V DC
• Supply mode: Crowbits Power Module
• Dimensions: 31.5(L)*24.5(W)*13(H) mm
