CrowPi L GPIO Breakout Board

SKU
RPA12653C
Weight
7
In stock
$1.49
-
+
Overview

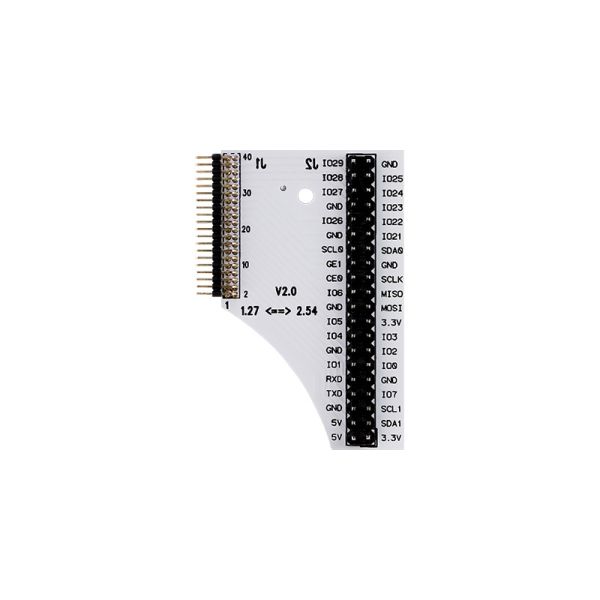

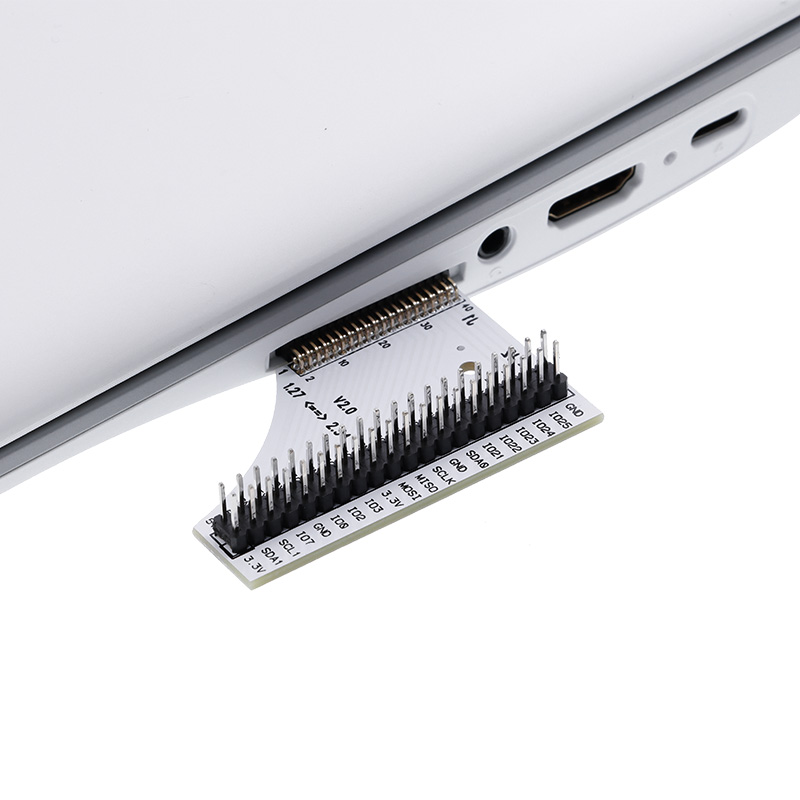

This is a 2x20 1.27mm pitch horizontal male pins to 2x20 2.54mm pitch vertical male pins connector designed for CrowPi L connecting peripherals. The pinout of the connector is the same as Raspberry Pi. Easily plug the connector into the CrowPi L then you’ll be able to use it like the standard Raspberry Pi GPIO header.

This is a 2x20 1.27mm pitch horizontal male pins to 2x20 2.54mm pitch vertical male pins breakout board designed for CrowPi L connecting peripherals. The pinout of the board is the same as Raspberry Pi. Easily plug the breakout board into the CrowPi L then you’ll be able to use it like the standard Raspberry Pi GPIO header.

Features

  • Adapt 1.27mm male pins to 2.54mm male pins

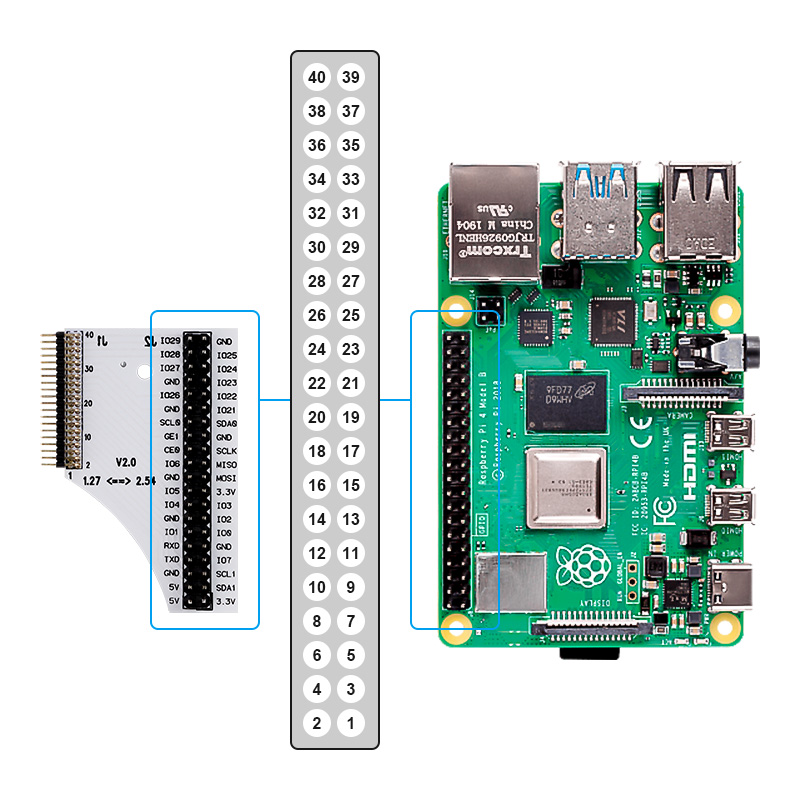

  • The same pinout as Raspberry Pi GPIO header
  • Special shape makes it easily plug in and out
  • High strength

gpio extender

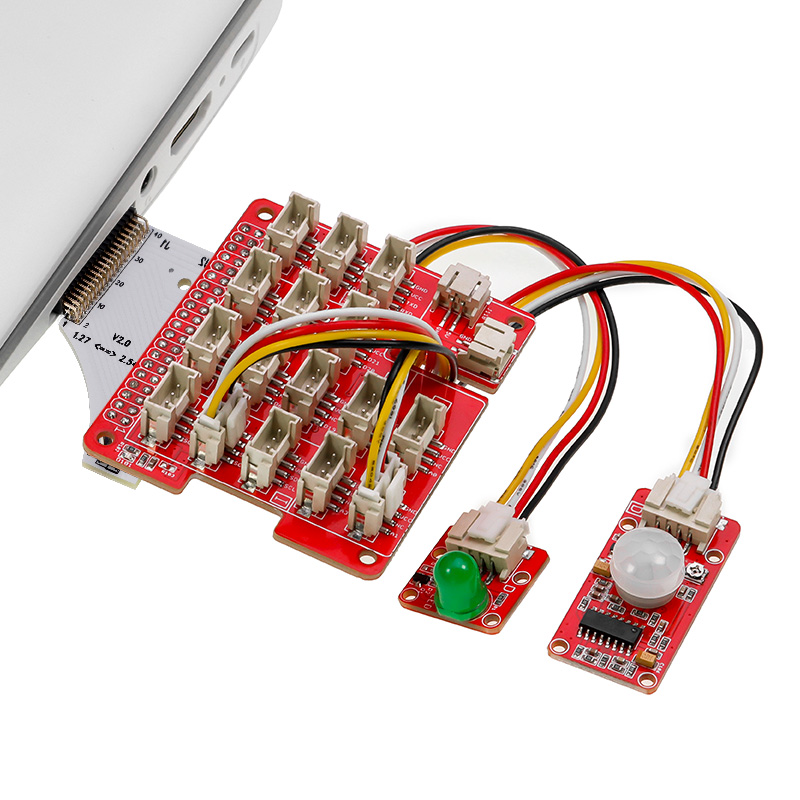

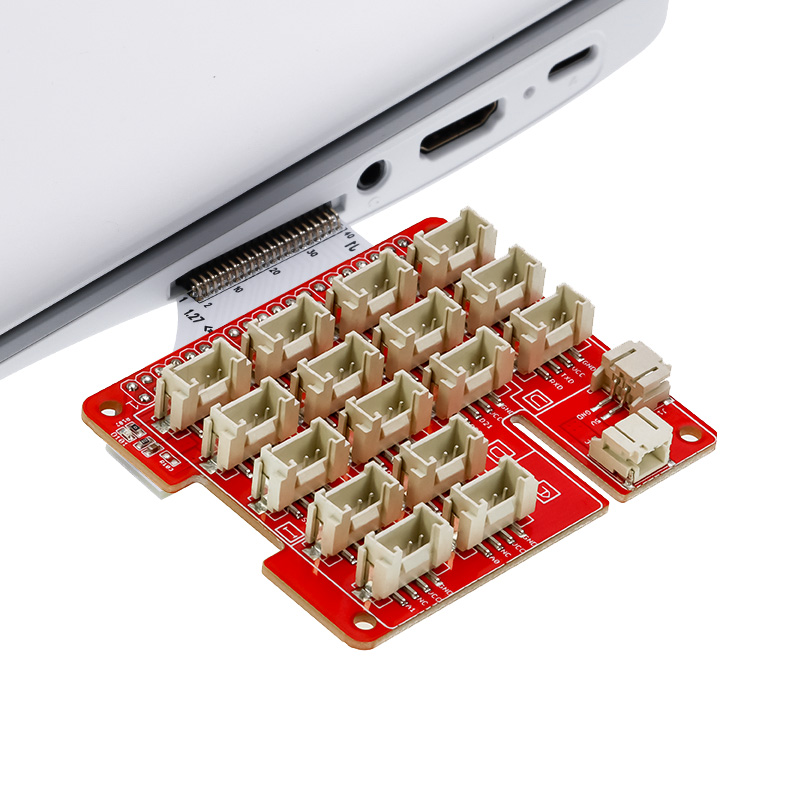

Connect with Base Shield for Raspberry Pi

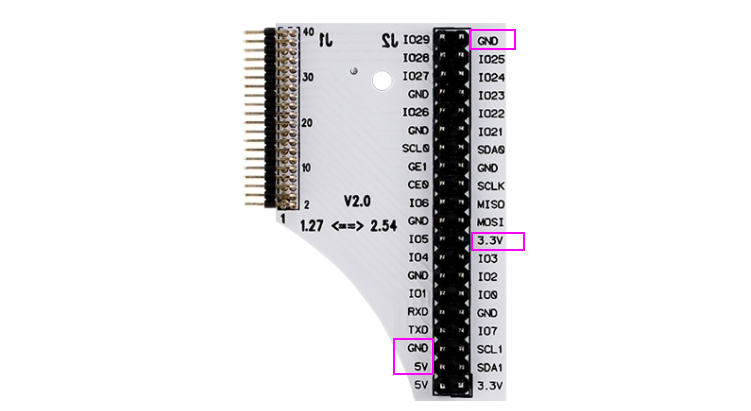

Noted: These 4 pins (GND,3.3V, 5V) are useless, in order to avoid a short circuit caused by the wrong insertion by the user

Specifications

  • Color: Black
  • Weight: 7.5g

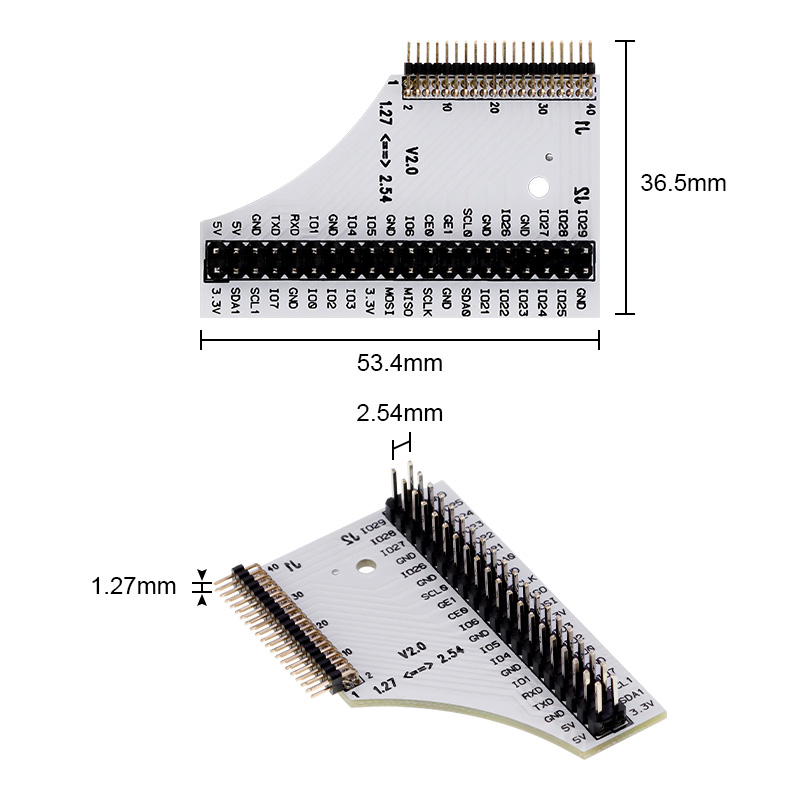

  • Dimensions: 53.4mm x 36.5mm

Package list

  • 1.27mm Pins to 2.54mm Pins Connector*1
