Elecrow Raspberry Pi Pico Advanced Kit: Includes 32 Modules & 32 Project Lessons

Raspberry Pi Pico Advanced Kit for Hands-On Learning

Take your Raspberry Pi Pico skills further with a hands-on electronics and programming kit designed for learning through real projects. Based on the RP2040-powered Raspberry Pi Pico, this kit combines 32 sensor and electronic modules, a smart car kit, and 32 guided projects to help you explore coding, electronics, robotics, and hardware control.

From LEDs and buttons to sensors, displays, motors, and a smart car, the projects gradually introduce different electronic components and programming concepts. The included tutorials and sample code make it easier to learn MicroPython and Raspberry Pi Pico programming while building practical projects.

Whether you're a student, teacher, maker, or electronics enthusiast, this Raspberry Pi Pico kit provides a hands-on way to develop programming skills, understand electronic components, and turn ideas into working projects.

Jump to: #Feature, #Specification, #Documents, #Review.

Components of a Raspberry Pi Pico

 26 Multi-Function GPIO Pins

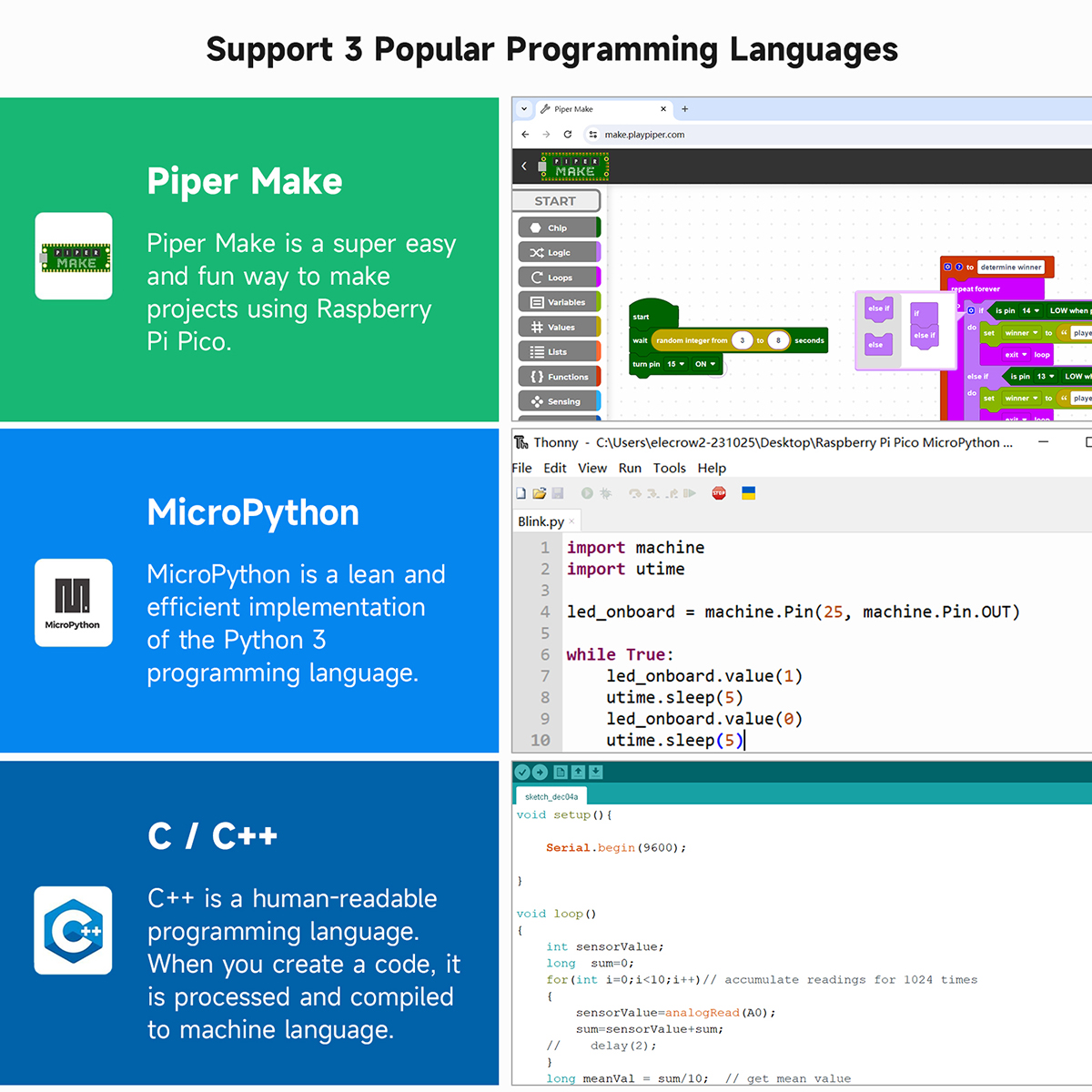

Supports 3 languages

Projects built with this kit

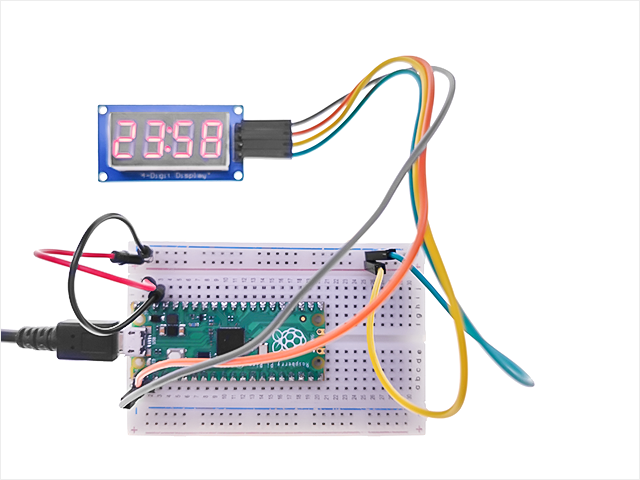

RGB LED Breathing Light with PWM Through PWM pulse width modulation, the LED light is controlled to light up gradually, and then gradually turn off, so as to form a breathing light effect in a cycle.	Digital Clock with TM1637 Display The hour and minute data of the clock are displayed through the TM1637 4-Bits digital tube, and the clock point is controlled to flash circularly to make an electronic clock.

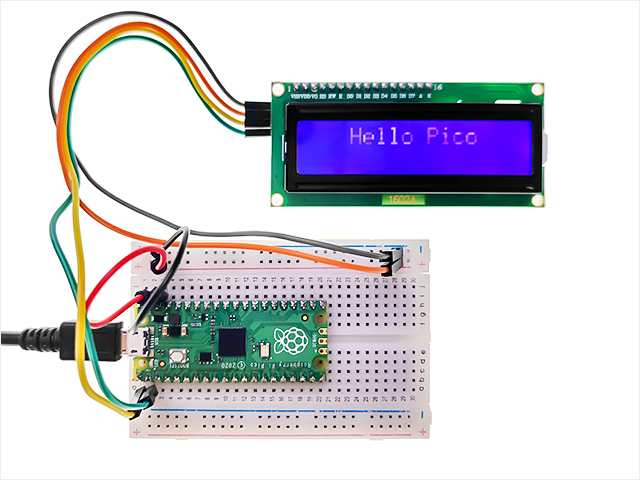

LED Running Light with Raspberry Pi Pico Through the GPIO pins of the Pico, the 5 LED lights are controlled to light up in turn, and then turn off in turn to form a Colorful flowing light.	LCD1602 Scrolling Text Display The first line of LCD1602 scrolls from right to left to display the string of "Hello Pico", simulating the effect of billboard scrolling.
Plant Doctor(Soil Moisture Monitoring System) Real-time detection of soil humidity. Under normal soil humidity, the green light lights up and the buzzer does not sound; when the soil humidity is too low, the red light lights up and the buzzer sounds.	Flame Sensor Fire Alarm Simulate a fire alarm system, judge whether a fire occurs by judging whether the induction probe of the flame sensor detects the fire source, control the RGB lights to flash red and blue, and display the alarm information on the LCD1602 liquid crystal screen.
Obstacle Avoidance Car Real-time detection of the distance measurement value of the ultrasonic ranging sensor, when the distance value is less than the preset value, the car will be controlled to turn left to avoid obstacles, so as to achieve the effect of the obstacle avoidance car.	Traffic Light Control the red light to turn on, the red light goes off after the 4-Bits digital tube counts down for 30 seconds; then the yellow light flashes 5 times with a time interval of 0.3 seconds; finally the green light turns on for 10 seconds and then turns off, reciprocating, simulating the effect of traffic lights.

Feature

Specification of the Raspberry Pi Pico

• 21 mm × 51 mm form factor

• RP2040 microcontroller chip designed by Raspberry Pi in the UK

• Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz

• 264KB on-chip SRAM

• 2MB on-board QSPI Flash

• 26 multifunction GPIO pins, including 3 analog inputs

• 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels

• 1 × USB 1.1 controller and PHY, with host and device support

• 8 × Programmable I/O (PIO) state machines for custom peripheral support

• Supported input power 1.8–5.5V DC

• Operating temperature -20°C to +85°C

• Castellated module allows soldering directly to carrier boards

• Support drag-and-drop programming using mass storage over USB(https://make.playpiper.com/)

• Low-power sleep and dormant modes

• Accurate on-chip clock

• Temperature sensor

• Accelerated integer and floating-point libraries on-chip

Package Lists

• 1x Raspberry Pi Pico with Pin headers (Optional)

• 2x 400 holes Solderless Breadboard

• 10x × 5mm LEDs: 2 each in green, red, blue, yellow, and white

• 1x RGB module

• 1xButton

• 1x Sound Sensor

• 1x Mini PIR motion sensor

• 1x Photoresistor Module

• 1x Laser Transmitter

• 1x Passive buzzer

• 1x Vibration Sensor

• 1x Mini magnetic spring module

• 1x Soil moisture sensor

• 1x Rotary Potentiometer

• 1x DC Motor with Male Dupont Wires and Fan Blade

• 1x 9g Servo Motor

• 1x Dual-axis XY Joystick Module

• 1x RC522 RFID Module

• 1x 4 Bits Digital LED Display Module

• 1x Traffic Light Display Module

• 1x Rotary Encoder Module

• 1x 1602 LCD Display Module (Blue)

• 1x Temperature & Humidity Senso

• 1x Raindrops Module

• 1x Flame Sensor

• 1x OLED Module

• 1x Membrane Switch Keyboard

• 1x Smart Car Kit

• 2x Crash Sensor

• 2x Tracking sensor

• 1x Ultrasonic Sensor

• 1x Infrared remote control

• 1x Infrared receiver module

• 1x Micro USB Cable (30 cm)

• 1x 170 holes Solderless Breadboard

• 1x 65 Jumper Wire

• 1x 20CM Male to Female Dupont Wire

• 1x Clear Case

• 10 x 2K Ω Resistors

• 2x M2.5*30mm Copper Pillar

• 10x Phillips Pan Head Screw

• 10x M2.5 Nickel Hex nuts

• 1x 2 INCH dual-purpose screwdriver

• 1x Magnet(Diameter:8mm Thickness:5mm)

• 1x DC stepper motor driver board

Wiki & External links

• User Tutorial of Raspberry Pi Pico Advanced Kit
• Sample Code
• Map and Assembly Manual
