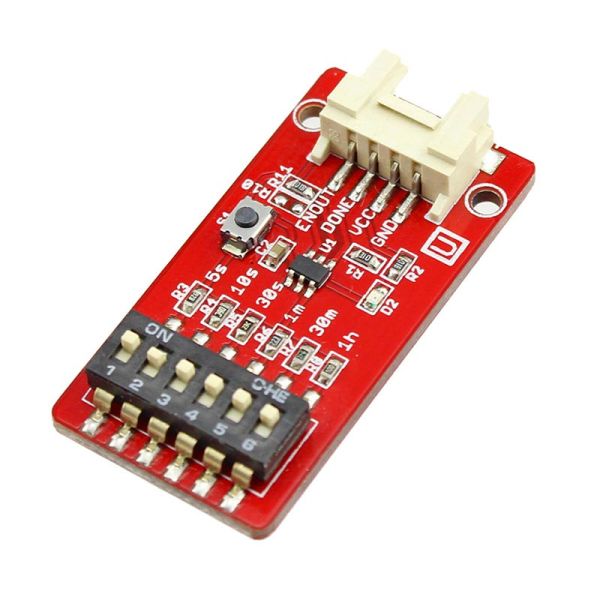

Crowtail- TPL5111 Reset Enable Timer

Details

The Crowtail- TPL5111 Reset Enable Timer is a stand-alone breakout that will turn any electronics into low-power electronics! TPL5111's current consumption is only 35nA，it is very suited for power gating with duty cycle or battery-powered applications. TPL5111 provides optional timing interval, the range of 100ms to 7200s, we provide 6 kinds of timing modes to help you use set the timing time accurately.

It can be used to activate or deactivate your electronic device via internal timer (The timing time can be up to 2 hours).

Features

6 kinds of timing time.
Timing mode: manual/automatic(default automatic).

Specifications

Timer accuracy: 1% (typical)
Current consumption 2.5V: 35nA (TPL5111)
Voltage range: 1.8V~5.5V
Supply voltage (VDD-GND): -0.3 – 6.0v
Input voltage at any pin(3): -0.3- VDD+0.3
Input current on any pin: -5-5v
Storage temperature: -65-150℃
Junction temperature: 150℃
Dimensions(mm):40.0(L)x20.0(W)x6.8(H)

Package list

Crowtail-TPL5111 Enable Timer x 1
