LR1262 Node Module

LR1262 LoRaWAN Node Module, support full frequency band

LR1262 Development board

LoRaWAN LR1262 Development Board Integrated RP2040 with 1.8 “ LCD for Long Range Communication (868Mhz/915Mhz)

LR1262 Node Board LoRaWan Node Module for Long Range Communication (868Mhz/915Mhz)

100 % of 100
Availability: In stock

【LoRa LR1262 Node Board】Adapts the RP2040 as the main controller, providing more powerful performance;

【Global LoRaWAN and LoRa Frequency Supported】Embedded with the LR1262 module, supports both Lora point-to-point transparent transmission and the use of the LoraWAN network and supports frequency band: 803MHZ-930MHZ;

【Rich Interfaces】Full GPIO and abundant external interface resources, compatible with Crowtail series modules.

LR1262 Node Board Description

This module uses RP2040 as the main controller and LR1262 module provides LoRa transmission and reception functions. It supports LoRa point-to-point transparent transmission and LoRaWAN network. When combined with four types of Crowtail sensor modules (Ax2/Dx2/IICx1/UARTx1), it can quickly build a Lora node. Additionally, we provide two firmware versions for 868/915MHZ to meet different usage needs.

To facilitate outdoor use, this module has a built-in lithium battery charging and discharging circuit, and an interface that supports solar panel charging, making it easy to set up and use the node outdoors.

The module has six interfaces that can be used with commonly used sensors such as temperature and humidity, air quality, light, PM2.5, etc., providing convenience for quickly building a Lora weather station, as well as for projects related to smart homes, smart factories, and smart logistics. In addition, we have introduced a 20-pin header and added a double-row pin header in the accessories, which allows you to choose whether to solder it or not, supporting more development options.

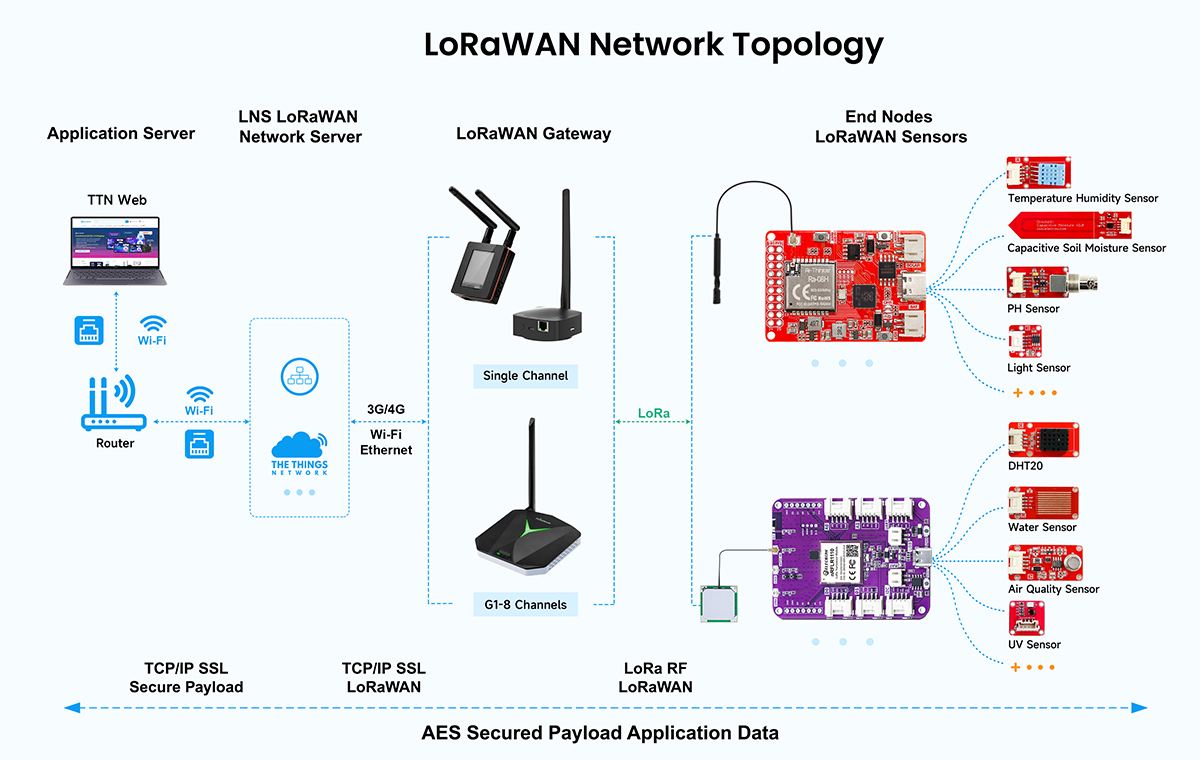

LR1262 Node Board network topology

Connect with Crowtail Sensors

It can be connected with 150+ types of Crowtail modules to complete more interesting projects.

Lora node board connect with sensors

Hardware Overview

Lora Node baord hardware overview

LR1262 Node Board Feature

  • Uses RP2040 as the main controller, with two 32-bit ARM Cortex M0+ processor cores (dual-core) ,and provides more powerful performance
  • Integrates the LR1262 module, supports frequency band: 803MHZ-930MHZ
  • Abundant external interface resources, compatible with 150+ kinds of Crowtail series modules
  • Supports both Lora point-to-point transparent transmission and the use of LoraWAN network
  • Compatible with Arduino/MicroPython, easy to carry out different projects

LR1262 Node Board Specification

Main Chip

Raspberry Pi chip RP2040, built-in 264KB SRAM, onboard 4MB Flash


Dual Core Arm Cortex-M0+ @ 133MHz

LR1262 Supports frequency band


LR1262 Support Interface

IPEX first generation interface

Development environment



1x USB-C interface,

6x 5V Crowtail interfaces (2x analog interfaces, 2xdigital interfaces, 1xUART interfaces, 1xIIC interfaces)

2x10 universal GPIO interfaces

1xBattery Interface

1xSolar Interface

Working input voltage






LR1262 Node Board Package List

  • 1x LR1262 Node Board
  • 1x Lora Antenna (868Mhz/915Mhz)
  • 1x Pin Header
  • 1x USB Cable


Wiki & External links
