ESP32 S3 display 3.5 inch touch screen

CrowPanel –ESP32 Terminal with 3.5 inch parallel 480x320 TFT capacitive touch RGB display(RGB by chip ILI9488)

CrowPanel-ESP32 Terminal 3.5 inch 480x320 SPI TFT capacitive touch display with OV2640 camera

Rating:
100 % of 100
was $39.90 Special Price $35.91
Availability: In stock
SKU
DLC35020S
Brand
elecrow
Weight
150g

【ESP32 3.5" terminal】3.5-inch parallel SPI TFT-LCD with 320*480 resolution and OV2640 camera, integrated ESP32-S3 module, supports 2.4 GHz Wi-Fi and Bluetooth 5 (LE);

【Wide Compatibility】Compatible with Arduino/LVGL/PlatformIO/Micropython Mature software support, support ESP-IDF and Arduino IDE development and LVGL;

【Crowtail interfaces, plug and plag】With 4 Crowtail interfaces (HY2.0-4P connector), plug and play with various Crowtail sensor.

Buy Crowtail Sensors together, Click here.



Description

This handheld ESP32 terminal is based on the ESP32 controller, equipped with a powerful ESP32-S3 chip, and supports 2.4GHz Wi-Fi and Bluetooth 5 (LE), providing more powerful computing and processing capabilities for IoT terminal applications. It is suitable for various scenarios, such as industrial IoT control terminals, smart agricultural terminals, personal smart home monitoring terminals, and personal DIY projects.

Thanks to the scalability of the ESP32-S3 module, it can lead to various interfaces. This ESP32 touch screen not only has Crowtail's digital port, analog port, UART, and IIC interface, but also integrates a MEMS microphone, camera interface, and buzzer function. It supports ESP-IDF and Arduino IDE development and is compatible with Micropython/Arduino. It also supports LVGL, which is the most popular free and open-source embedded graphics library to create beautiful UIs for any MCU, MPU, and display type. With the 2M pixel camera, it can easily realize face/object/scene recognition and provide more creativity in cutting-edge projects such as speech recognition/voice control.

The equipped screen adopts SPI serial screen with 320x480 resolution, and the size of 3.5 inches is the best choice as a handheld/pocket terminal. The frame rate of the screen is up to 20FPS, which is sufficient for most application scenarios. If you have higher requirements for the screen, you can try this RGB touch screen.

The whole terminal is surrounded by a perfect acrylic shell, which makes the whole product look more beautiful. At the same time, it can also be fixed in other ways. With two M3 screw mounting holes, you can mount it on the wall or PLC rail.

Its compatibility with the Crowtail system can give your project an easier implementation method and the convenience of one-stop shopping.

If you need to customize GUI, you can contact us at service@elecrow.com

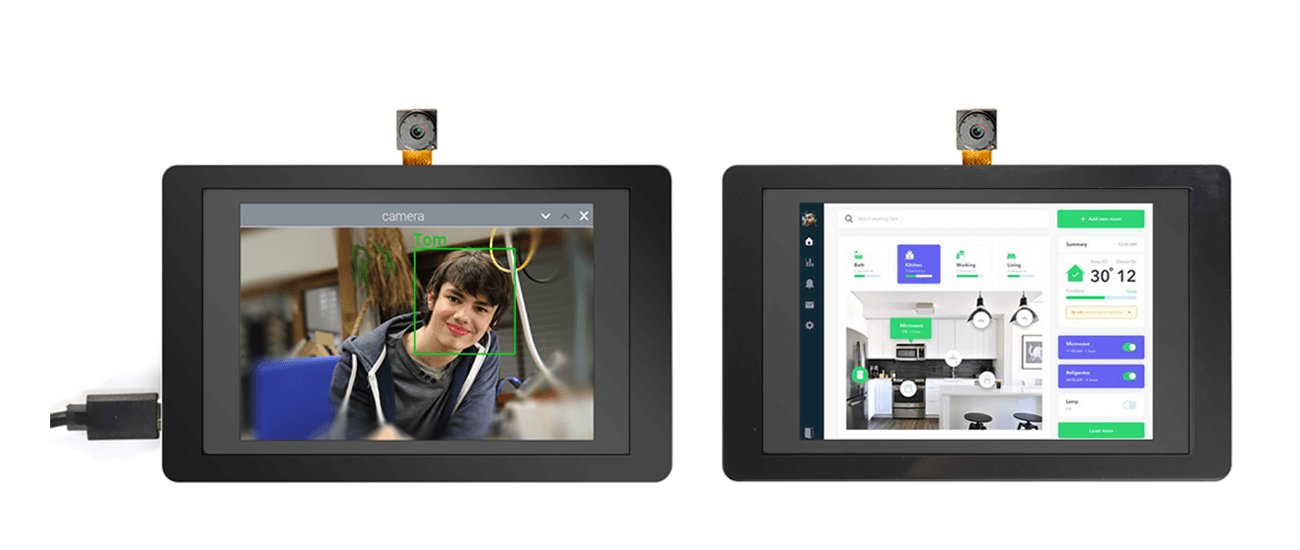

  • As a smart home central control screen, it can perform video surveillance and face recognition, allowing you to keep abreast of home dynamics.

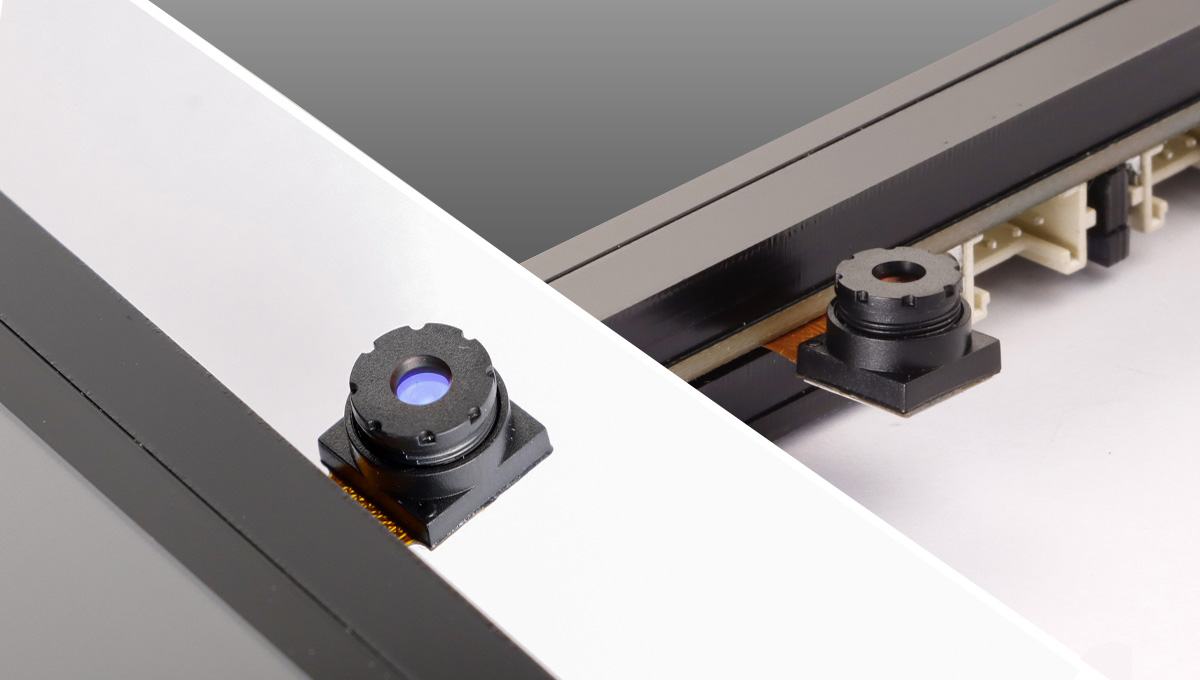

ESP32-S3 camera module application

ESP32 S3 Camera module application

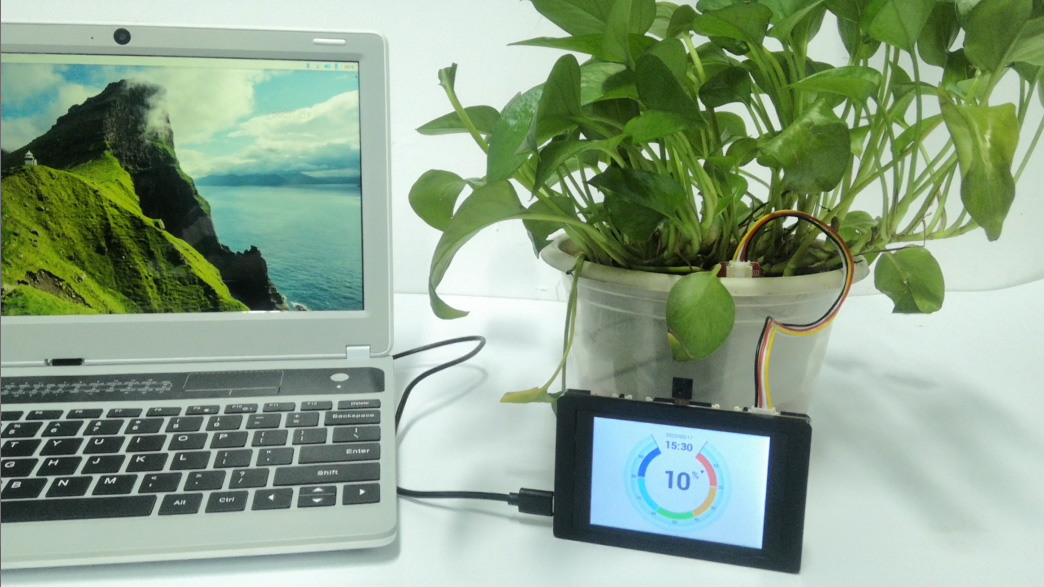

Connect with Crowtail Sensors

It can be connected with 150+ types of Crowtail modules to complete more interesting projects.

ESP SPI Terminal connet with sensor ESP32 camera

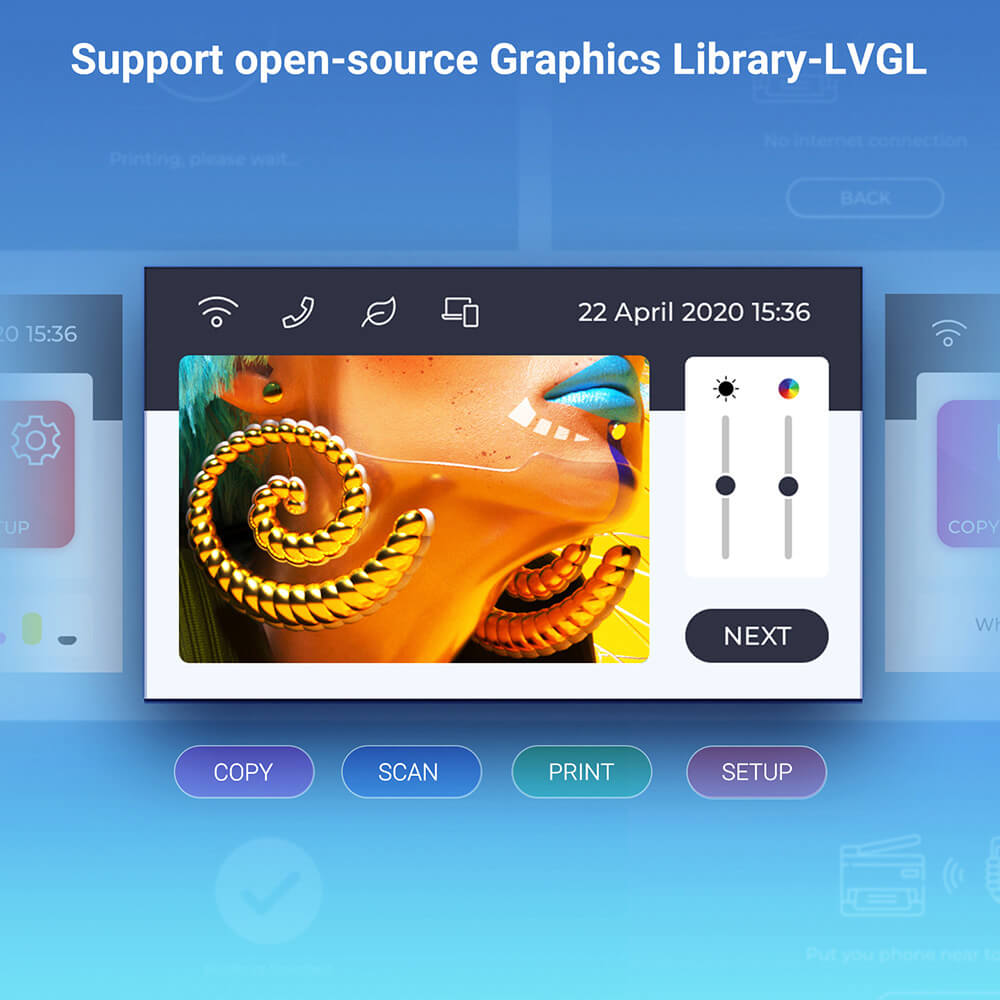

Support open-source Graphics Library-LVGL

It supports LVGL graphics library. You can design a variety of UIs.

ESPs3 camera module support LVGL

Design and build UIs with ease with SquareLine Studio

Use SquareLine Studios to design and implement your own LVGL UI and export ready to use projects with one click.

ESPs3 camera module support squareline

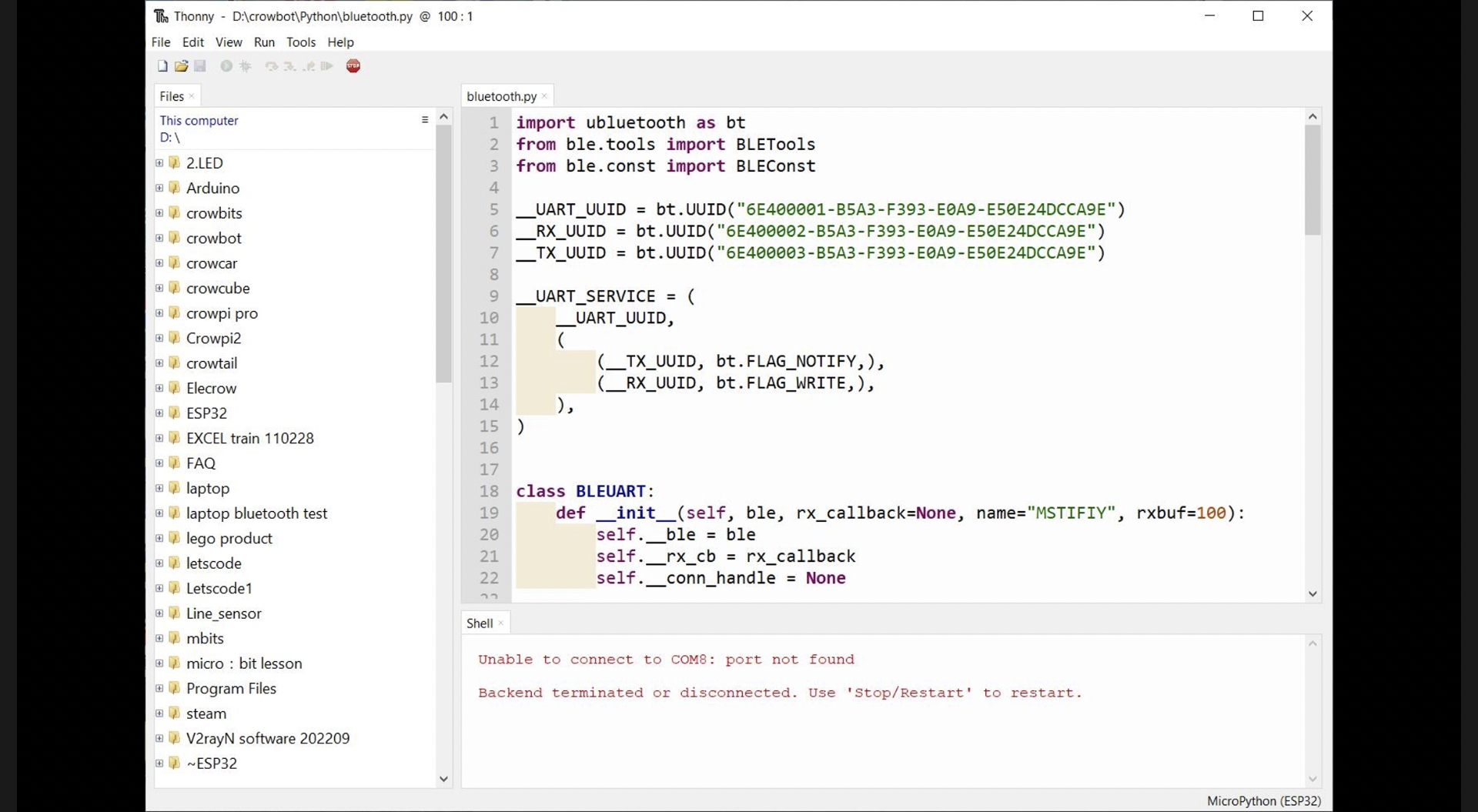

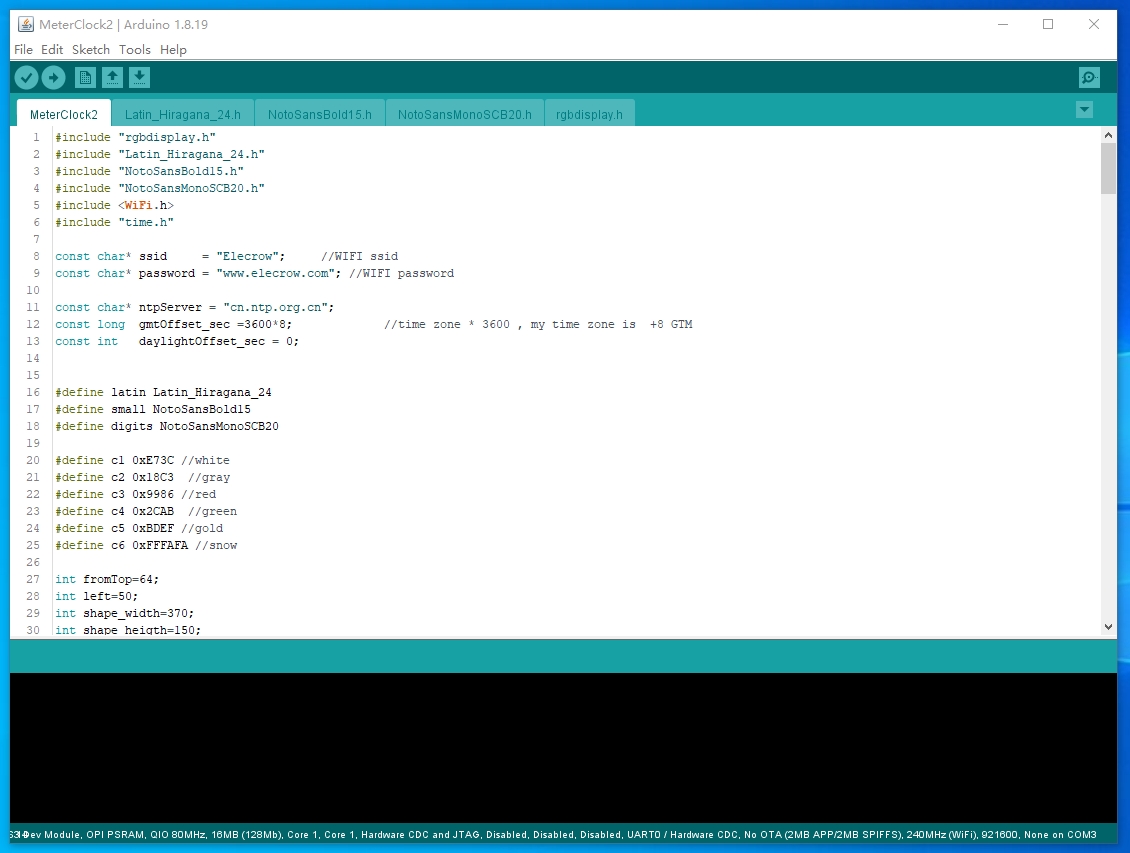

Programming Environment Support

It supports programming with VS Code Arduino IDE, Espressif IDF, Esphome, and PlatformIO. Different projects can be easily developed.

ESP32 s3 cam module programming support

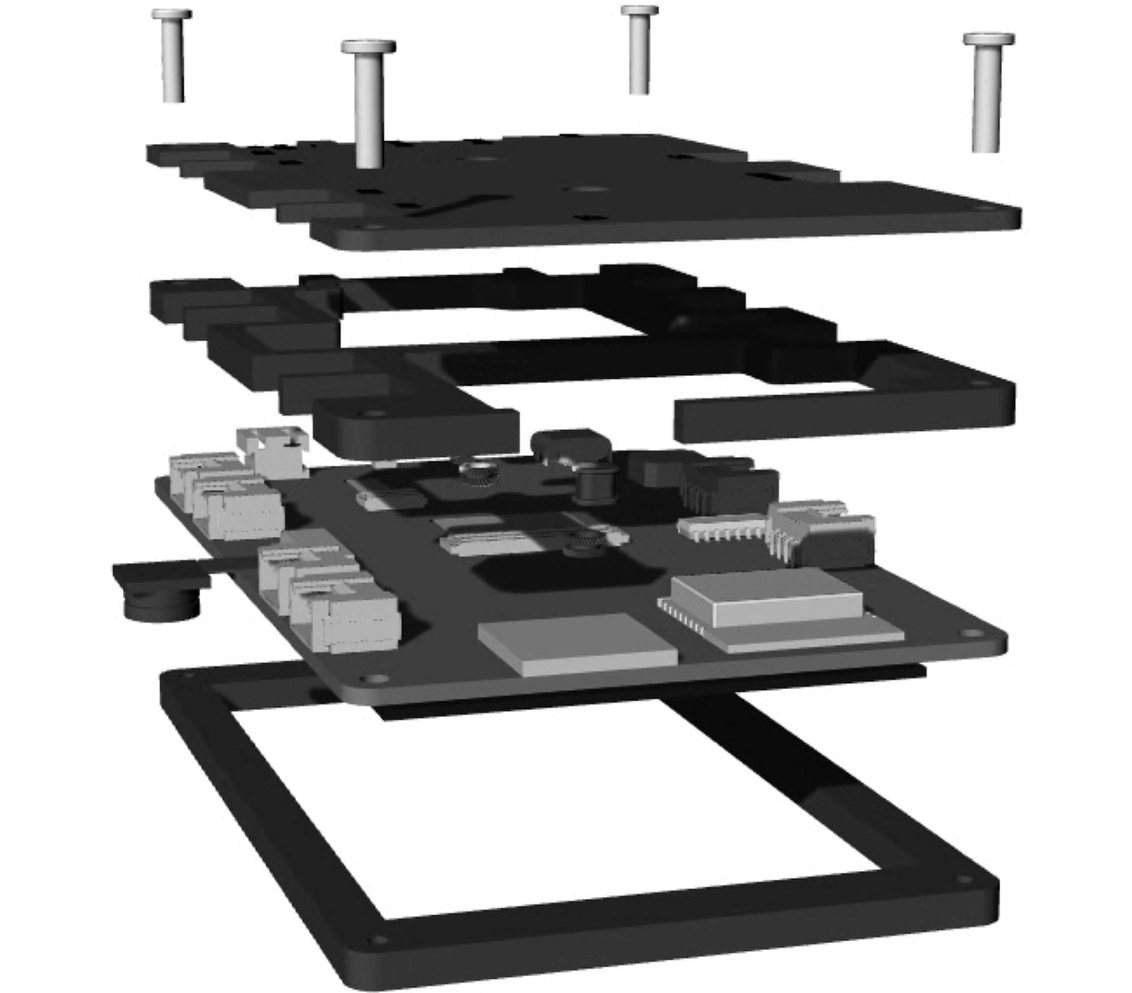

Structure Overview

ESP32 s3 cam module structure

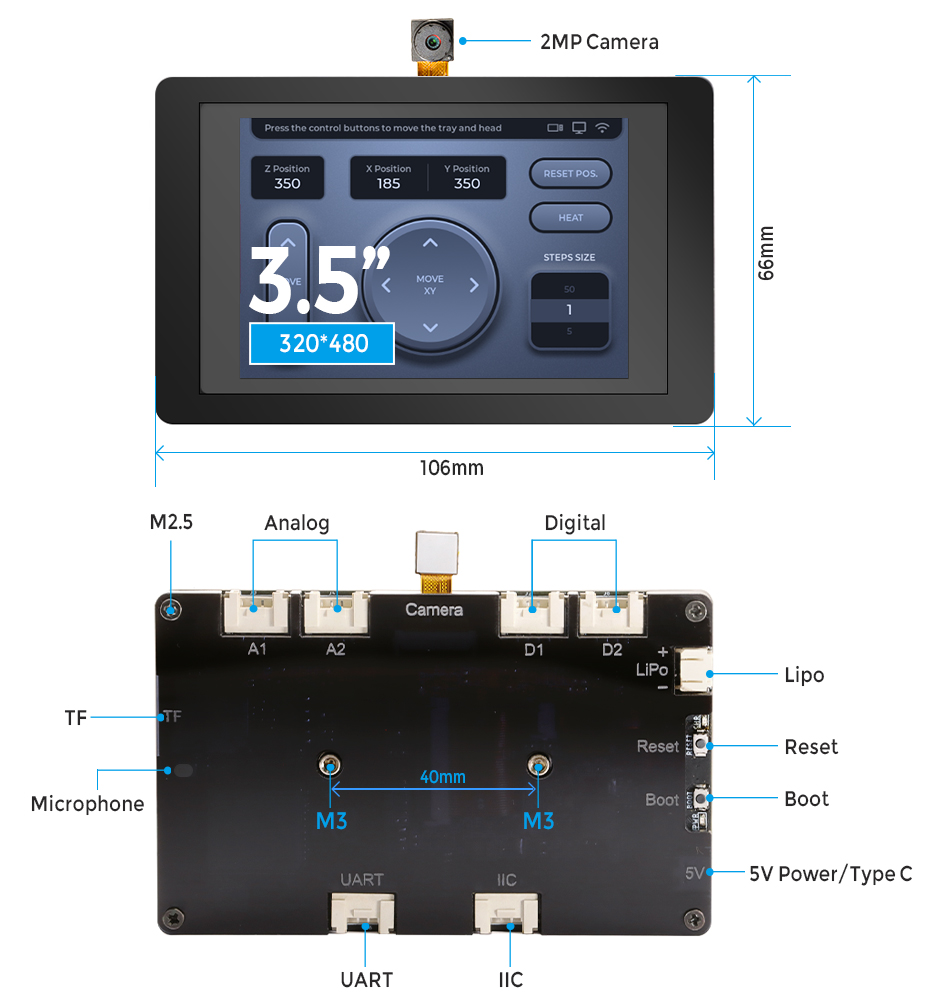

ESP SPI Screen Hardware Overview

ESP32 S3 Cam module Interface overview

  • RESET button. Press this button to reset the system.
  • LiPo port. Lithium battery charging interface (lithium battery not included)
  • BOOT button. Hold down the Boot button and press the RESET button to initiate firmware download mode. Users can download firmware through the serial port
  • 5V Power/Type C interface. It serves as the power supply for the development board and the communication interface between the PC and ESP-WROOM-32.
  • 6 Crowtail interfaces (2*Analog,2*Digital,1*UART,1*IIC). Users can program the ESP32-S3 to communicate with peripherals connected to the Crowtail interface.



Feature

  • Integrated ESP32-S3 module, which is support 2.4 GHz Wi-Fi and Bluetooth 5 (LE)
  • 5 inch TFT 320*480 resolution touch LCD display with 2M Pixel OV2640 camera
  • Support, USB, UART, SPI, I2C, PWM, and I2S communication protocols
  • Supports 1T1R mode, data rate up to 150 Mbps, Wireless Multimedia (WMM)
  • Compatible with Arduino/LVGL/Esphome-homeassistant/PlatformIO/Micropython
  • Supports hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
  • Support TYPE-C USB power supply and polymer lithium battery power supply with 6 Crowtail interfaces (4P 2.0 connector), plug and play with various Crowtail sensor



Specification







Main Chip

Core Processor

Xtensa® 32-bit LX7

Memory

16MB Flash 8MB PSRAM

Maximum Speed

240Mhz

Wi-Fi

802.11 a/b/g/n 1x1,2.4 GHz band supports 20 and 40 MHz bandwidth, Supports Station, SoftAP, and SoftAP + Station mixed modes.

Bluetooth

BLE 5.0





LCD Screen

Resolution

320*480

Display Size

3.5 inch

Drive IC

ILI9488

Touch

Capacitive Touch

Interface

SPI Interface



Other Modules

Camera

OV2640, 2M Pixel

Microphone

MEMS Microphone

SD Card

Onboard SD Card Slot





Interface

1x USB C

1x UART

1x I2C

2x Analog

2x Digital





Button

RESET Button

Press this button to reset the system.

BOOT Button

Hold down the Boot button and press the EN button to initiate firmware download mode. Users can download firmware through the serial port.

Operating Environment

Operating Voltage

USB DC5V, lithium battery 3.7V

Operating Current

Average current 83mA

Operating Temperature

-10°C ~ 65°C

LiPo Battery Interface

PH 2.0

Active Area

73.63(L)*49.79mm(W)

Dimension Size

106(L)x66mm(W)*13mm(H)



Package List

  • 1x 3.5 inch ESP32 SPI Display with camera (included Acrylic Shell)
  • 1x USB C Cable



Wiki & Documents

Write Your Own Review
You're reviewing:CrowPanel-ESP32 Terminal 3.5 inch 480x320 SPI TFT capacitive touch display with OV2640 camera
Your Rating
