ELE BlueTooth-compatible Shield-V1.2

Rating:
100 % of 100
$11.49
Availability: In stock
SKU
MCS01108S
Brand
elecrow
Weight
18g

【Wide Compatibility】Compatible with Crowduino/Arduino/Seeeduino, you can use it easily.

【Serial Bluetooth-compatible module】Has a complete 2.4GHz radio transceiver and baseband, and the indoor barrier-free communication distance can reach 10m.

Description

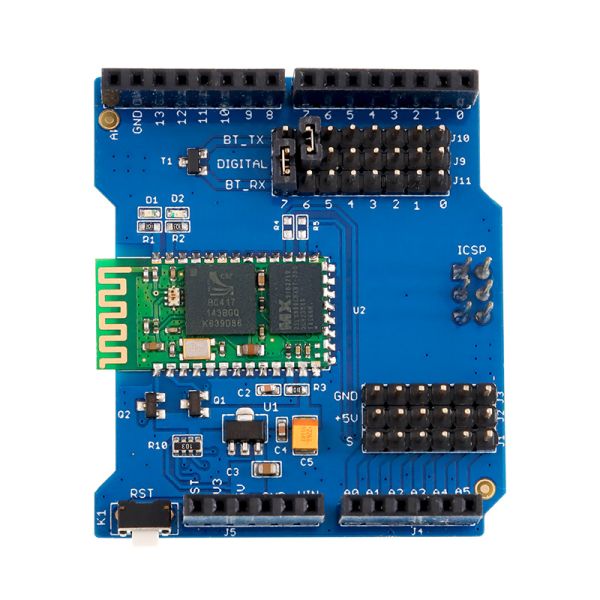

   The Bluetooth-compatible Shield integrates a Serial Bluetooth-compatible module. It can be easily used with Arduino /Crowduino for transparent wireless serial communication. You can choose two pins from Arduino D0 to D7 as Software Serial Ports to communicate with Bluetooth-compatible Shield (D0 and D1 is Hardware Serial Port). It also expand five analog IOs that you can use it to connect other devices. The Bluetooth-compatible Shield could be setting to Master or Slave by user.

    Serial port Bluetooth-compatible module is fully qualified Bluetooth-compatible V2.0+EDR(Enhanced Data Rate) 3Mbps Modulation with complete 2.4GHz radio transceiver and baseband. It uses CSR Bluecore 04-External single chip Bluetooth-compatible system with CMOS technology and with AFH(Adaptive Frequency Hopping Feature).

Features

  • Crowduino/Arduino/seeeduino compatible.
  • Standard Shield is designed so that you can use it easily.
  • Up to10m communication distance in the house without obstacle
  • UART interface (TTL) with programmable baud rate (SPP firmware installed).
  • Default baud rate: 38400, data bits: 8, stop bit: 1, Parity: No parity.
  • Default PINCODE:0000
  • A full set of configuration commands.
  • On board PCB antenna.

Notice

    Only the master device and slave device can be paired with each other. Between Master and Master devices or Slave and Slave devices can't be paired with each other. The Slave mode could be paired with PDA, PC etc.


Package list

  • Bluetooth-compatible Shield PCBA x1
