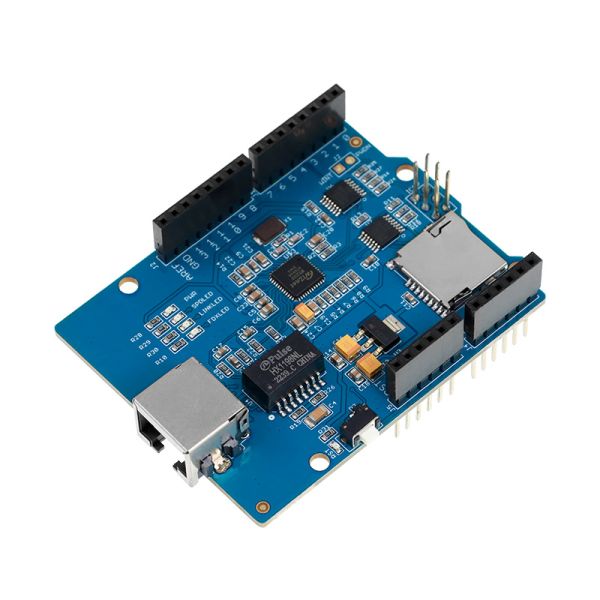

W5200 Ethernet Shield

Model : ACS52001S

Initial Weight : 37.00g


Availability: In stock


    The Ethernet Shield connects your Arduino device to the internet in mere minutes. Just plug this module onto your Arduino board, connect it to your network with an RJ45 cable (not included) and follow a few simple instructions to start controlling your world through the internet.

    The Ethernet controller of this Ethernet Shield is W5200. it is twice the buffer size of W5100 and support for up to eight simultaneous TCP/UDP connections. There is an onboard micro-SD card slot, which can be used to store files for serving over the network. Thanks to a lowered RJ45 pot, you can flexibly add most shields on top of this Ethernet Shield.


  • Standard Shield that Arduino, Mega, Crowduino Compatible
  • High speed Ethernet controller W5200 with internal 32K buffer
  • With Micro SD card for storing large amounts of data
  • Connection with Arduino on SPI port
  • Support up to eight simultaneous TCP/UDP connections
  • Lowered RJ45 Ethernet jack
  • long wire-wrap headers extend through the shield


Item Min Typical Max Unit
Voltage 3.5 5.0 5.5 VDC
Current 120 210 350 mA
Supported SD Micro SD card(More than 2G is not guaranteed) /
Supported Connection TCP/UDP /
Dimension 53.4X68.7 mm
Weight 22.3 g

Package list

  • Ethernet Shield PCBA x1;

Wiki & External links

Estimate Shipping

Enter your destination to get a shipping estimate.

Customer Reviews

3 Item(s)

per page
work great! Review by Alhazen
Delivered on time and easy to use. I follow the right arduino library to make it working and now it work well with my arduino board. Else, it is convenient to connect the other module. (Posted on 5/6/2017)
Review by Boris Sergeevich Nemtsev
Excellent packaging!
But I need to resolder Ethrnet-connector due to cold-solder-bug. One contact hung out over the soldering. Board could not establish connection until I resolder it.
But shiled is excellent! So fast and robust!
I will make some fixes by http://feilipu.me/2013/08/03/wiznet-w5200-arduino-shield/ (Posted on 6/20/2014)
Review by David oba
Some small improvements about this shield.
http://feilipu.me/2013/08/03/wiznet-w5200-arduino-shield/ (Posted on 5/26/2014)
