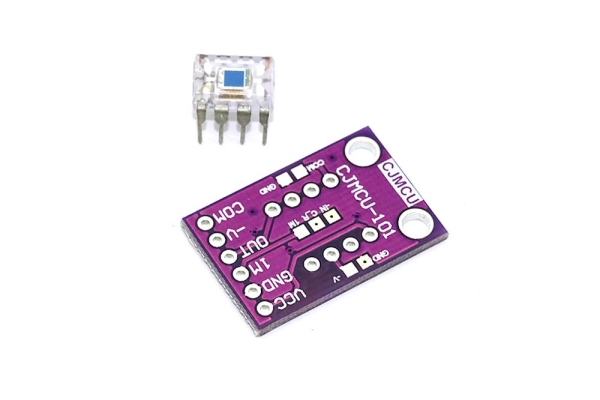

CJMCU-101 OPT101 Analog Light Sensor Light Intensity Module Monolithic Photodiode

Details

CJMCU-101 is an integrated photodiode and transimpedance amplifier which out chip inside. For putting integrated photodiode and transimpedance amplifiers in a single chip, it can prevent common problems in discrete designs. Such as leakage current error, noise and gain peaks caused by stray capacitance. One advantage of the sensor is that the amplifier is single or dual power supply design, which can working on battery equipment. When the photodiode works in the photoconductive mode, it has a good linearity and low dark current.

The sensor can be used on smoke detectors, currency changers, barcode scanners. It also can be applied on medical instrumentation, laboratory instrumentation and photographic analyzers.

Features

Operating on the battery equipment .
Quiescent current is low.
Amplifier is designed for single or dual power-supply operation.

Specifications

Single supply: 2.7-36v
Size of photodiode: 2.29mm x 2.29mm
Internal feedback resistor: 1MΩ
Low quiescent current: 120uA
High responsivity: 0.45A/W
Working temperature: 0-70℃

Package list

CJMCU-101 OPT101 Analog Light Sensor Light Intensity Module Monolithic Photodiode x 1
