Raspberry Pi Radio Module 2 RPI Radio Module
$5.00
Availability:
In stock
SKU
MRB01202B
Weight
20g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
[High performance and low power consumption] Equipped with Infineon CYW43439 chip, supports 2.4GHz Wi-Fi 4 (802.11n) and Bluetooth 5.2, with excellent performance and extremely low energy consumption.
[Small size and low cost] Compact design requires only a few external components, greatly reducing mass production costs
[Easy to integrate] Adopts serrated edge pads to support a variety of mounting methods, flexible design and easy integration
[Designed for Raspberry Pi] Highly compatible with RP2040 and RP235x microcontrollers, optimized design for relevant users.
[Comprehensive wireless functions] Supports single-band 2.4GHz Wi-Fi 4 and Bluetooth 5.2, providing stable and reliable wireless connection
[Certification and compliance] Has obtained full modular certification

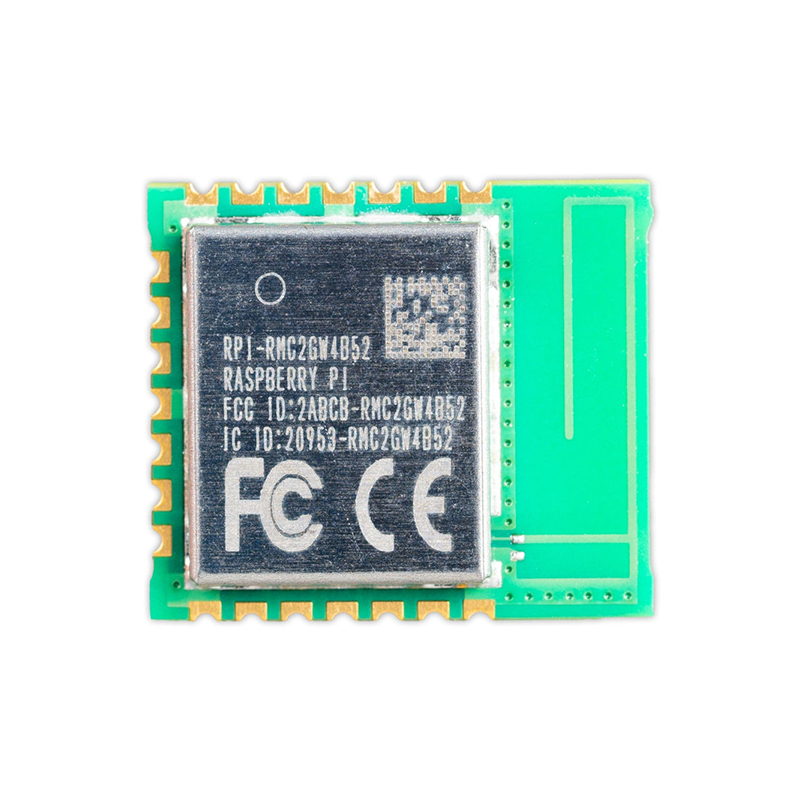

Radio Module 2：Cost-effective Radio module
The Raspberry Pi Radio Module 2 is a radio module designed for use with the Raspberry Pi, a low-cost, high-performance microcontroller. It features the Infineon CYW43439 chip, supporting single-band 2.4GHz Wi-Fi 4 (802.11n) and Bluetooth 5.2 for low-cost applications, making it ideal for affordable, low-power IoT and embedded solutions.
It is a small form factor solution that requires minimal external components, reducing production costs and making it suitable for rapid prototyping. It encapsulates the radio circuitry used in some Raspberry Pi SBC and Compute Module products, providing a path to mass production, especially for users of the RP2040 and RP235x microcontroller products.
The radio module is easy to integrate, with serrated edge pads to support multiple mounting options and an onboard single 2.4GHz antenna for easy design. It has full modular certification, making integration to meet regulatory requirements simple and easy.
Feature
- Easy-to-integrate cellular package
- Single-band 2.4GHz Wi-Fi 4
- Bluetooth 5.2
- FCC modular compliant
Specification
|
Wi-Fi support |
Wi-Fi 4 (802.11n), single-band (2.4 GHz) and Bluetooth 5.2 support |
|
Bluetooth support |
Bluetooth 5.2 Bluetooth Classic and Bluetooth Low Energy (LE) |
|
Bluetooth range |
Supports up to 100 m (Class 1) and 10 m (Class 2) |
|
Compatibility |
Full software compatibility with Pico W and Pico 2 W SDK |
|
GPIO |
Simple GPIO expander. Three host-controlled GPIOs for added I/O capabilities Low-pin-count gSPI host interface allows for simplified integration with minimal I/O requirements |
|
Single-antenna design |
SISO1 configuration supports efficient single antenna wireless performance |
|
Speed |
Supports 20 MHz channels with data rates up to 96 Mbps (PHY rate) |
|
Low power consumption |
IEEE Power Save PM1 DTIM1 average rate 1: 1.19 mA Receive active rate MCS7 (at –50 dBm): 43 mA Transmit active rate MCS7 (at 16 dBm): 271 mA |
|
Connectivity |
Integrated internal PA and LNA for signal range and reliability |
|
Operating temperature |
-30℃ to +70℃ |
|
Mechanical characteristics |

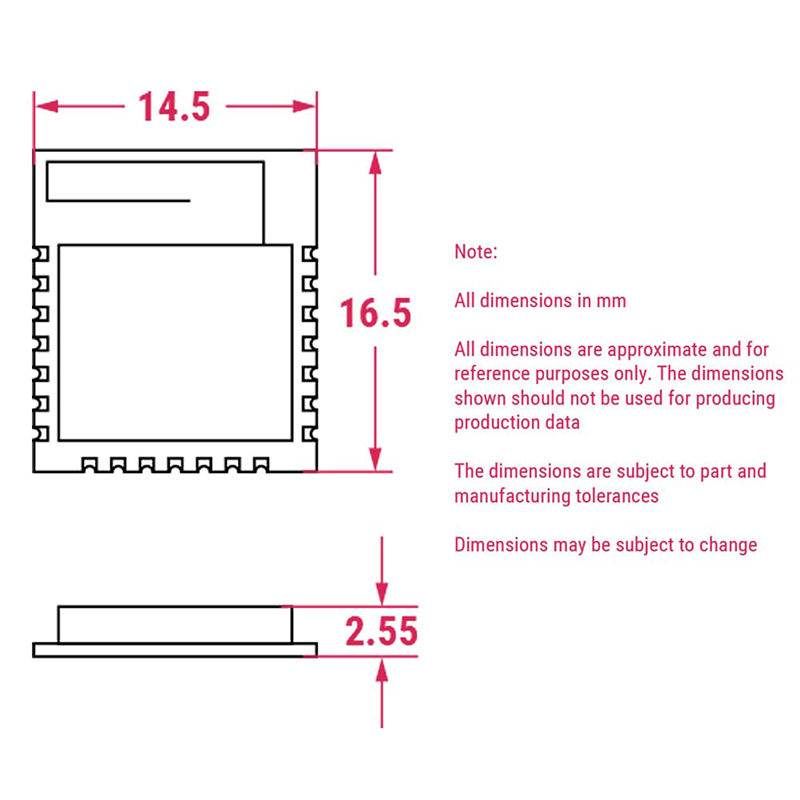

21-pad castellated package 16.5 mm x 14.5 mm |
Package List
- 1x Raspberry Pi Radio Module 2
