[ESP32 HMI 3.5" display] TFT LCD resistive touch display with 480*320 resolution, integrated ESP32 module, frequency up to 240MHz, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;
[Multiple development environments] Supports Arduino IDE, Espressif IDF, PlatformIO, Micro Python, and other development environments and is compatible with the LVGL graphics library;
[Rich interfaces and easy to use] It integrates a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, delivering plug-and-play expandability.
[Wide Range of Applications] Ideal for automotive HMI, medical equipment, smart home, home automation, industrial control, civil electronics, and IoT application devices.
[❤️What you get] 24H Friendly Customer Service and 1 Year warranty.1x CrowPanel 3.5" display,1x Charging Cable,1x Dupont Cable, 16x Tutorials.

Please check out this link to purchase the upgraded version: CrowPanel Advance ESP32 Display 3.5inch.

ESP32-S3 3.5-inch HMI Touch Display:  Accelerate Prototyping



The CrowPanel ESP32 Display 3.5-inch module is a powerful HMI touch screen with a 480*320 resolution LCD. It uses the ESP32-WROOM-32 module as the main control processor, with a dual-core 32-bit LX6 microprocessor, integrated WiFi and Bluetooth-compatible wireless functions, and a main frequency of up to 240MHz. It provides powerful performance and versatile applications, suitable for IoT application devices and other scenes.

The module includes a 3.5-inch LCD and a driver board. The display screen uses resistive touch technology and comes with a resistive touch pen, making the screen usage more flexible. In addition, the board has reserved a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, etc., providing more expansion possibilities.  It supports development environments such as Arduino IDE, Espressif IDF, Lua RTOS, and Micro Python, and is compatible with the LVGL graphics library, supporting openHASP. This enables developers to not only customize their own UI interfaces but also to create interesting projects quickly and easily, greatly shortening the development cycle.

The CrowPanel ESP32 Display 3.5-inch module is suitable for a wide range of scenes, such as automotive HMI, medical equipment, smart home, industrial control, power, civil electronics, home automation, new energy, and IoT application devices. Its various interfaces and expansion functions enable it able to meet the needs of different fields, providing users with a more comprehensive solution. This 3.5" display also supports tactility. Click here to learn more.

Quick Click to where you are interested: #Feature, #Specification, #Customer‘s Projects, #Documents, #Review.

Note: The latest version of the 3.5-inch screen is version 2.2. The touch drive IC is different.

Version 2.0 TFT_MISO is pin 12 Touch_CS is pin 33
Version 2.2 TFT_MISO is pin 33 Touch_CS is pin 12

Therefore, the corresponding pin numbers need to be modified in the code, and the TFT_eSPI library also needs to be modified accordingly.

If you want to know the reviewer's feedback, please click here.

Customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com

feature of ESP32 HMI touch module
Support multiple development environments.

It supports a variety of development environments, such as Arduino IDE, Espressif IDF, PlatformIO, and Micro Python, to meet the needs of different developers and make every project possible.

3.5inch esp32 display support multiple environments

 Support open-source Graphics Library-LVGL.

It supports the LVGL graphics library. You can design a variety of UIs.

esp32 3.5 inch display support LVGL

Design and build UIs with ease with SquareLine Studio

Use SquareLine Studios to design and implement your own LVGL UI and export ready-to-use projects with one click.

Squareline Vision has entered BETA, sign up now to get 40% off all licenses. https://vision.squareline.io/

esp32 3.5 inch display support squareline studio

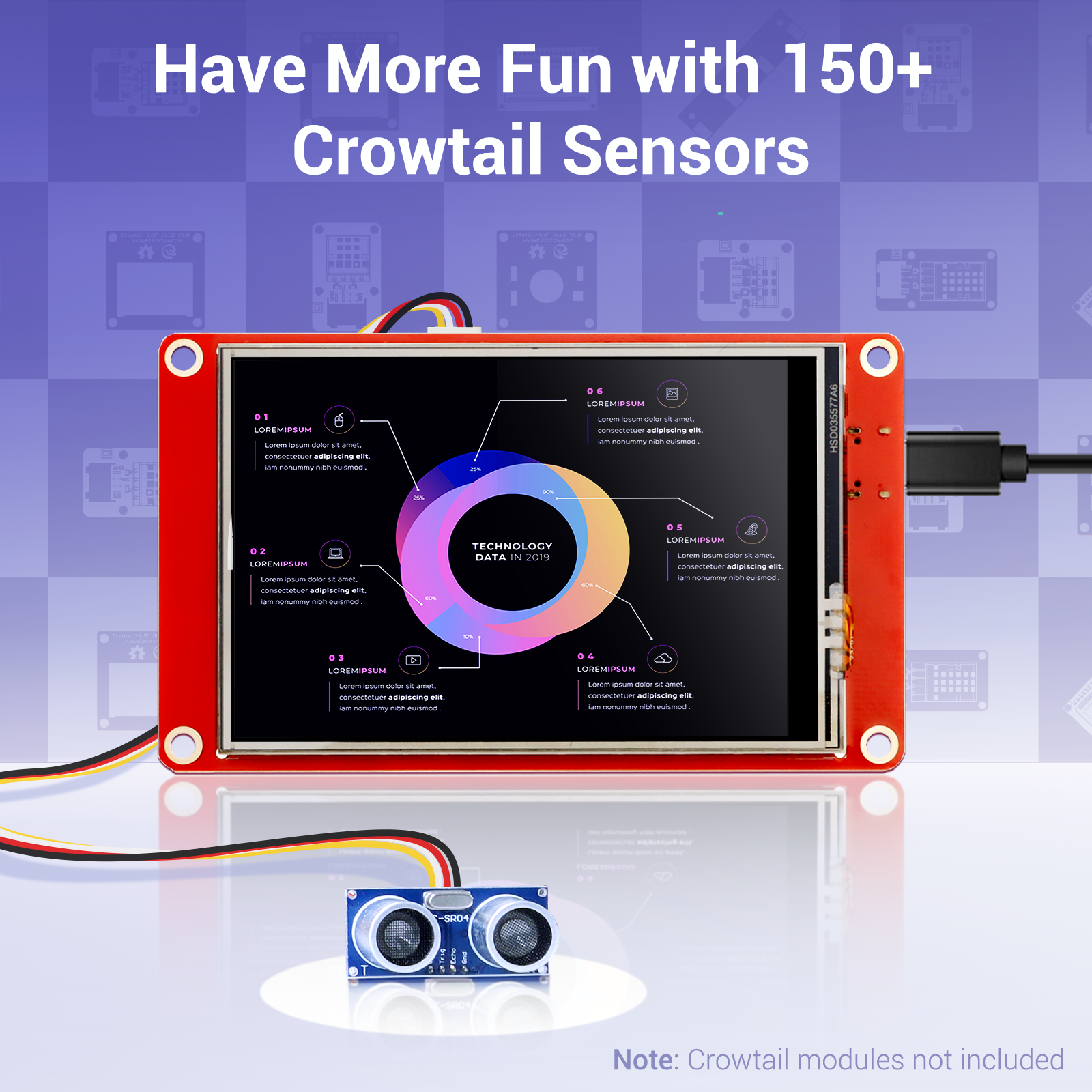

Connect with more than 150+ Crowtail sensors.

3.5 inch display Connect with Crowtail sensors.

What Can You Build?

It is suitable for various scenes such as automotive HMI, medical equipment, smart home, home automation, industrial control, civil electronics,  and IoT application devices.

3.5 inch display with multiple applications

Hardware Overview

esp32 3.5 inch size

Feature

  • 🚀 Integrated ESP32-WROVER-B module, built-in wireless communication 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth-compatible 5.0;
  • 👆 Support development environment Arduino IDE, Espressif IDF, PlatformIO, Micro python and compatible with LVGL graphics library;
  • 📚 Built-in LVGL demo interface and Arduino example, 16 tutorials for you to quickly start.
  • 💻 LCD 480*320 3.5 inches TFT-LCD with driver IC ILI9488;
  • 🔌 Integrates a TF card slot, multiple peripheral interfaces, USB interface, speaker interface, battery interface, delivering plug-and-play expandability.

What's the difference between the CrowPanel Basic Series and the Advanced?

Crowpanel Basic and Advance comparison Crowpanel Basic and Advance comparison

Spotlight Projects: See How Customers Are Using This Advanced HMI Display

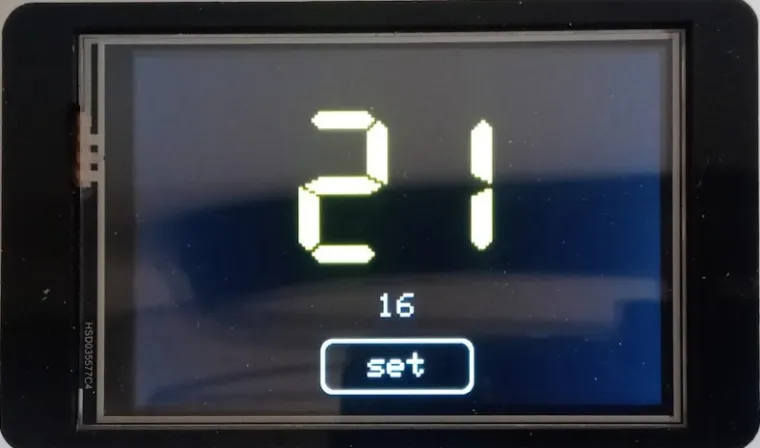

Monitoring temperature and humidity with CrowPanel 3.5 Inch Parking sensor with CrowPanel ESP32 Display
Monitoring temperature and humidity with CrowPanel 3.5 Inch Parking sensor with CrowPanel ESP32 Display



Specification

  • Model: 3.5 inches module-CrowPanel ESP32 display
  • Main Processor: ESP32-WROVER-B
  • Resolution: 480*320
  • Touch Type: Resistive Touch Screen
  • Display Type: TN Panel
  • Screen: TFT-LCD Screen
  • Display driver: ILI9488
  • External power supply: DC5V-2A
  • Interface: 1*TF Card Slot, 1* I2C, 1* GPIO, 1*Speak, 1* UART1, 1*UART0
  • Button: BOOT Button and Reset Button
  • Active Area: 48.96*73.44mm(W*H)
  • Working Temperature: -20℃~70℃
  • Storage Temperature: -30℃~80℃

Pin Specification

Name  SPEC
SPK PH2.0-2P
UART0 HY2.0-4P
GPIO_D HY2.0-4P
I2C HY2.0-4P

Package List

  • 1x CrowPanel ESP32 Display 3.5 Inch Display
  • 1x USB-A to Type-C Cable
  • 1x Crowtail/Grove to 4pin DuPont cable
  • 1x Resistive touch pen
