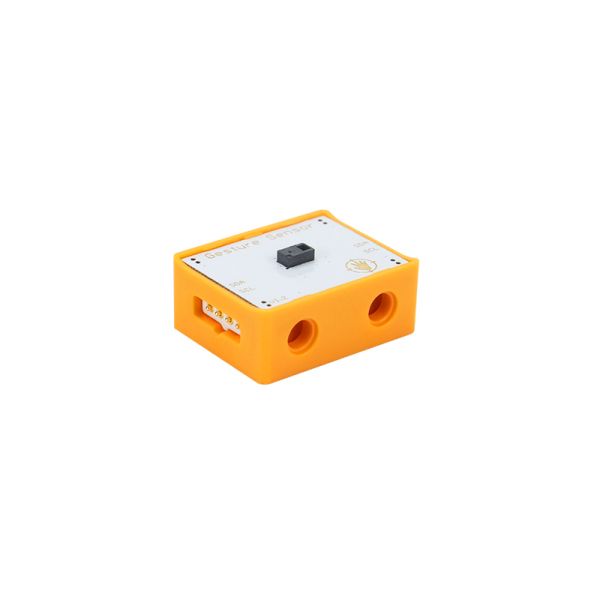

Crowbits-Gesture Sensor

SKU
CRB0075S
In stock
$10.90
Weight
15
-
+
With this product, you earn 11 loyalty points.
Overview

The gesture sensor is an IIC module, which can recognize the direction of hand movement. After recognizing the direction, it can be programmed to achieve different activities according to different directions.

The gesture sensor is an IIC module, which can recognize the direction of hand movement. After recognizing the direction, it can be programmed to achieve different activities according to different directions.

You can use gesture sensor as an input device to control another module, or a computer, mobile phone, smart car, robot, and more with a simple swipe of your hand.





How does it work?

The gesture module is a PAJ7620U2 that integrates the gesture recognition function and the general-purpose I2C interface into a single chip. It can recognize 13 kinds of gestures, including moving up, moving down, moving left, moving right, moving forward, moving backward, clockwise and so on, when the direction and distance of the gesture are different, the module internally calculated, the data corresponding to the current gesture and current distance are output separately.





How to use it?

You can use a gesture recognition sensor as a controller, and make the controller react differently according to the direction of the gesture. Or combine with software to make gesture-controlled games.





Specification

Gesture speed in Normal Mode: 60°/s to 600°/s

Ambient light immunity: < 100k Lux

Gesture speed in Gaming Mode: 60°/s to 1200°/s

Interface type: I2C

Operating Voltage: 3.3V DC

9 basic gestures: Left, Right, Forward, Backward, Up, Down, Clockwise, Anti-Clockwise, Wave

Dimensions: 31.5(L)*24.5(W)*13(H)mm





Wiki & External links

Wiki
