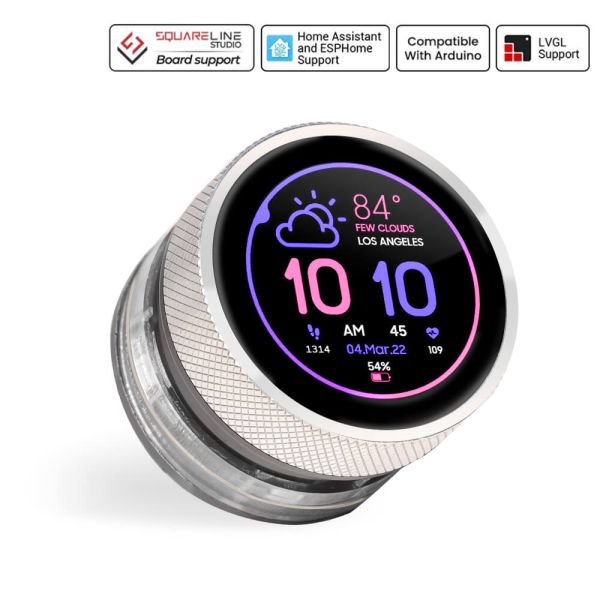

CrowPanel 1.28inch-HMI ESP32 Rotary Display 240*240 IPS Round Touch Knob Screen

Description

What is a rotary screen?

The rotary screen is an intelligent interactive device that usually consists of a circular knob and a display. The knob can be rotated to control various functions, while the display is used to display relevant information.

ESP32 Display - 1.28 inch rotary screen, uses high-performance ESP32-S3 chip, equipped with 32-bit dual-core chip. The maximum clock frequency reaches 240MHz, with strong performance and the ability to handle complex tasks.

Supports 2.4G WiFi and BLE low-power Bluetooth, to achieve reliable wireless communication, easily connect to the Internet, suitable for smart home, industrial control, portable devices and other scenarios.

Supports capacitive touch operation and knob input. The knob supports clockwise, counterclockwise rotation and full press operation, smooth feel, and various interaction methods.

The 5V charging interface supports power supply and program burning, and is also equipped with three expansion interfaces of UART, I2C, and FPC to meet development needs.

The atmosphere light design adds a cool feeling, and the low power design makes it suitable for smart home appliances and portable devices.

It supports Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro python, and supports LVGL library; you can design the UI interface yourself, it is an ideal platform for DIY projects.

ESP32 Display - 1.28inch rotary screen is not just an interactive module, but an intelligent interaction solution that combines high performance, multi-function, and ease of use. Whether you are an IoT developer, smart home enthusiast, or professional, you can find an efficient tool that meets your needs.

Self-developed by Elecrow with exclusive design.

Rotary input, smooth feel

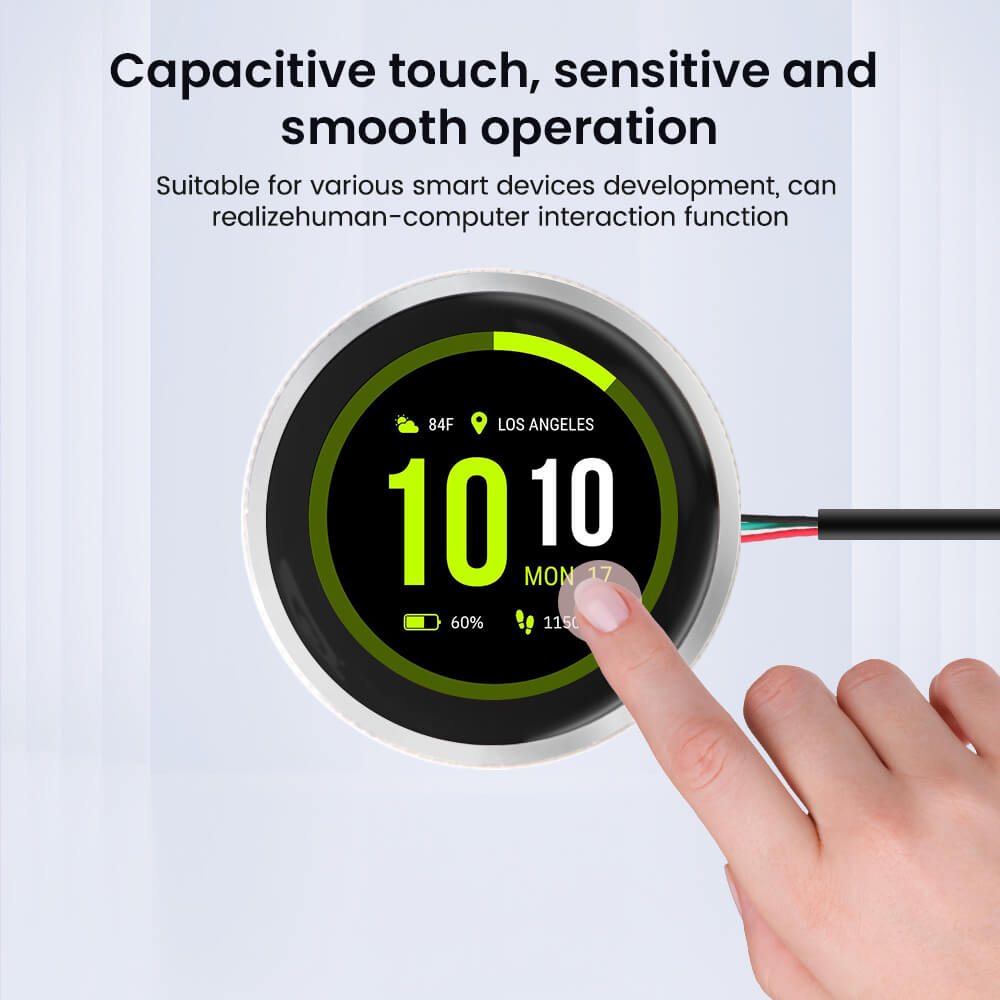

Capacitive touch, sensitive and smooth operation

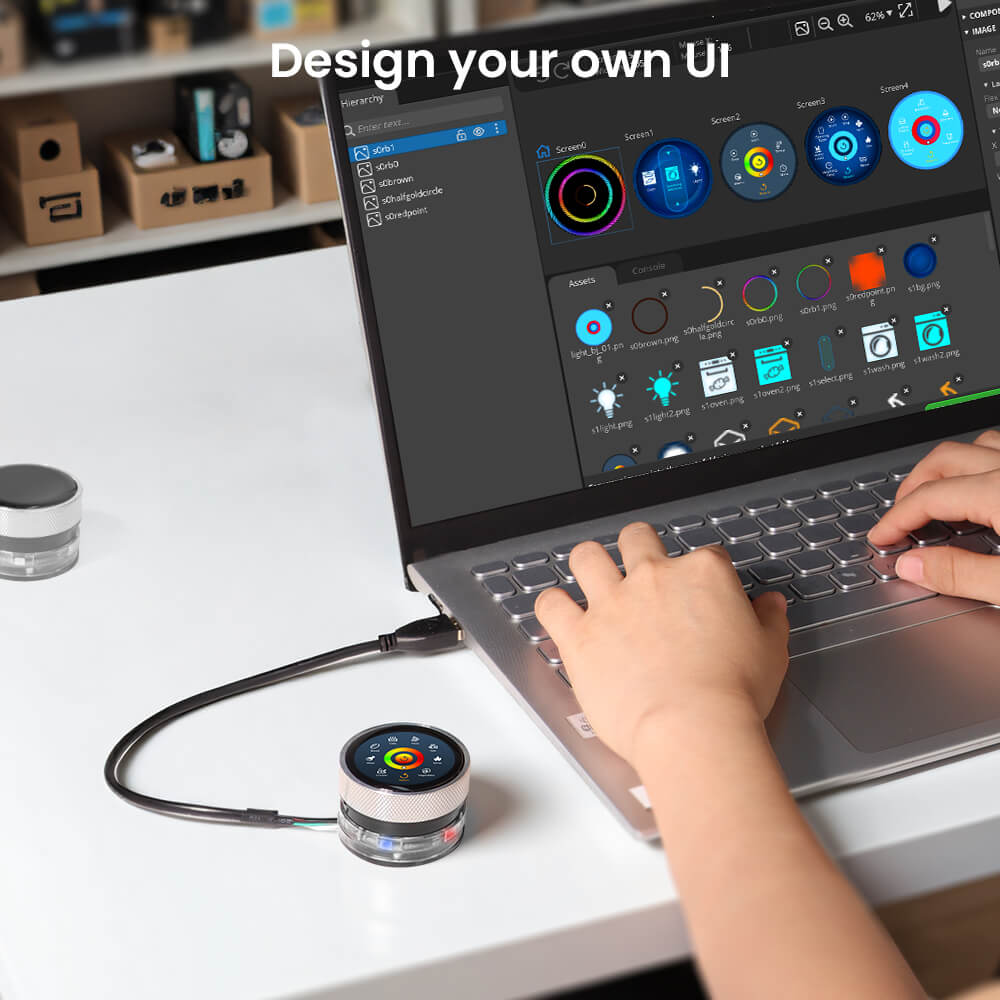

Compatible with LVGL graphics library

 Support multiple development environments

Application Scenarios

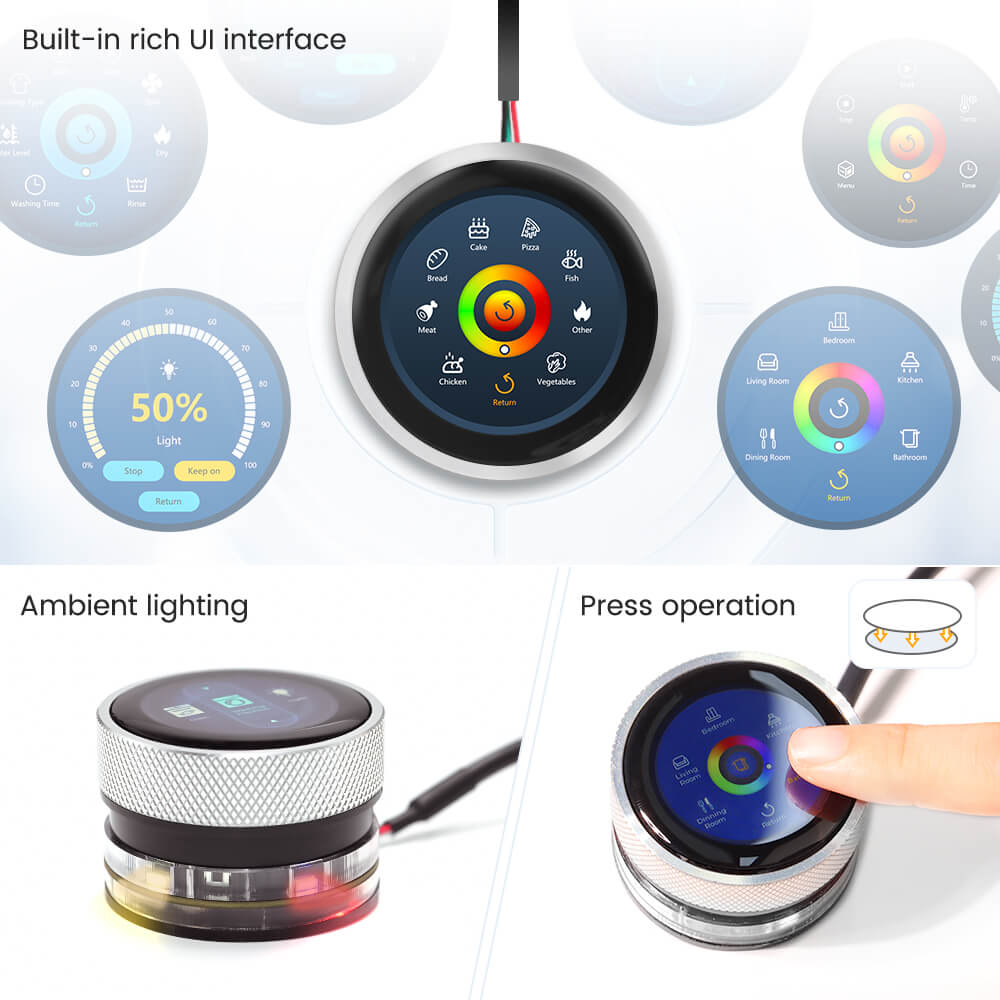

Details Overview

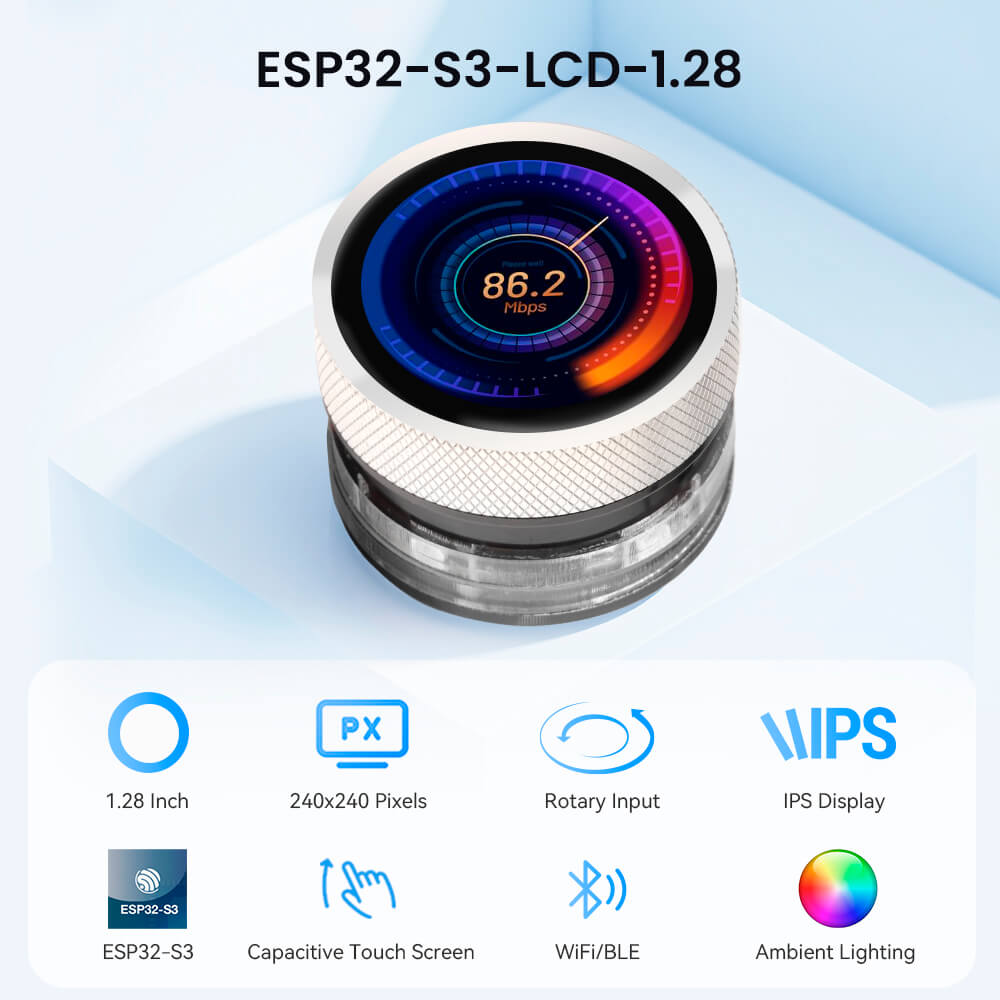

Feature

• Interaction mode: supports knob input, the knob supports clockwise, counterclockwise rotation and full press operation, and can adjust volume, brightness, etc.
• Touch function: supports capacitive touch, sensitive operation, and provides a smooth user experience.
• High-performance main control: equipped with a 32-bit dual-core ESP32-S3 chip, equipped with 8M PSRAM and 16M flash memory, and the maximum clock frequency is 240MHz.
• Wireless communication: supports 2.4G WiFi and BLE low-power Bluetooth to achieve data exchange and remote control between devices.
• Expansion interface: equipped with a 5V charging interface, supports power supply and program burning; provides three expansion interfaces: UART, I2C and FPC.
• Low power design: supports low power mode, suitable for smart home appliances and portable devices.
• Ambient light design: adds a cool feeling to the device and enhances the user experience.
• Multi-language development: supports Esphome-homeassistant/PlatformIO/Micro python, and also supports LVGL library.
• Application scenarios: suitable for smart home, industrial control, IoT projects, access control systems, Industrial control, portable devices and other scenarios.

Who Needs This?

Makers/open source hardware enthusiasts: DIY smart home controllers, light regulators, desktop instruments, custom input devices, etc.

Home appliance or IOT manufacturers: develop customized control equipment, shorten product design cycle, intend to mass produce, etc.

Education and training institutions: provide teaching kits for courses related to embedded systems, the Internet of Things, and UI design, which are easy for students to get started and intuitive to operate.

Specification

Why Choose Us?

As an industry-leading equipment manufacturer, we rely on our independently developed core technology and the production strength of our factories to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.

Package List

• 1x ESP32 Display-1.28 inch Rotary Display
• 1x 4pin Dupont Cable
• 1x 50 cm MS1.25 to USB Cable

Wiki & External links

• Wiki
• ESP32-C3 Datasheet
