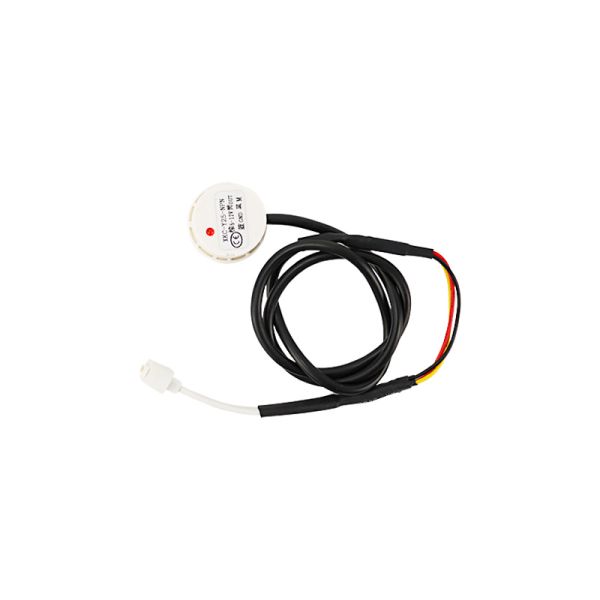

Crowbits-Non-Contact Liquid Level Sensor

What is the Crowbits-Non-Contact Liquid Level Sensor?

The Crowbits-Non-Contact Liquid Level module is a sensor that detects the liquid level without contacting liquid.

How does it work?

Through the powerful chip (XKC-Y25-T12V) and high-speed computing capabilities for advanced signal processing technology, so as to achieve non-contact liquid level detection. This Non-Contact Liquid Level Sensor is suitable for hazardous applications, such as detecting toxic substances, strong acids, strong bases and various liquids in airtight containers under high pressure.

Features

• No direct contact with liquid
• Working Voltage: 3.3V
• Induction distance can reach more than 12 mm
• Easy to use

Specification

• The thickness of the induction (sensitivity) 0 ～ 20 mm
• Humidity 5% ～ 100%
• The material ABS.
• Waterproof properties IP67
• Sensor dimensions(mm): 28.3(L)x28.3(W)x17.0(H)
• Cable length: 58.5cm
