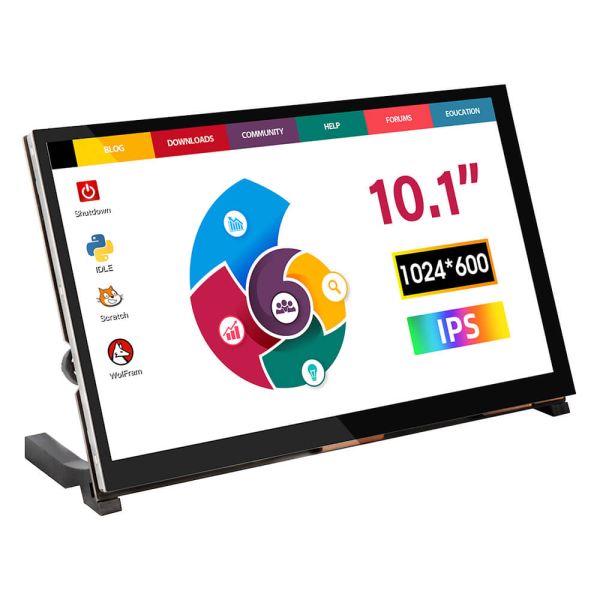

RC101S 10.1inch 1024*600 IPS Capacitive Touch Monitor with Speaker & Stand

Description

This 10.1 inch HD touch display with a capacitive USB touchscreen, simply power the USB touch port to achieve touch function, and no need to install the driver, just plug and play! Especially, with dual removable speakers to enhance your audiovisual experiences. Four corner holes let you mount the small monitor onto your DIY IoT projects that you’re working on. It can be used as a portable monitor for laptop, supports the win7 / win8 / win10 system, and is touch-free.

OEM customization requests can be discussed for projects.

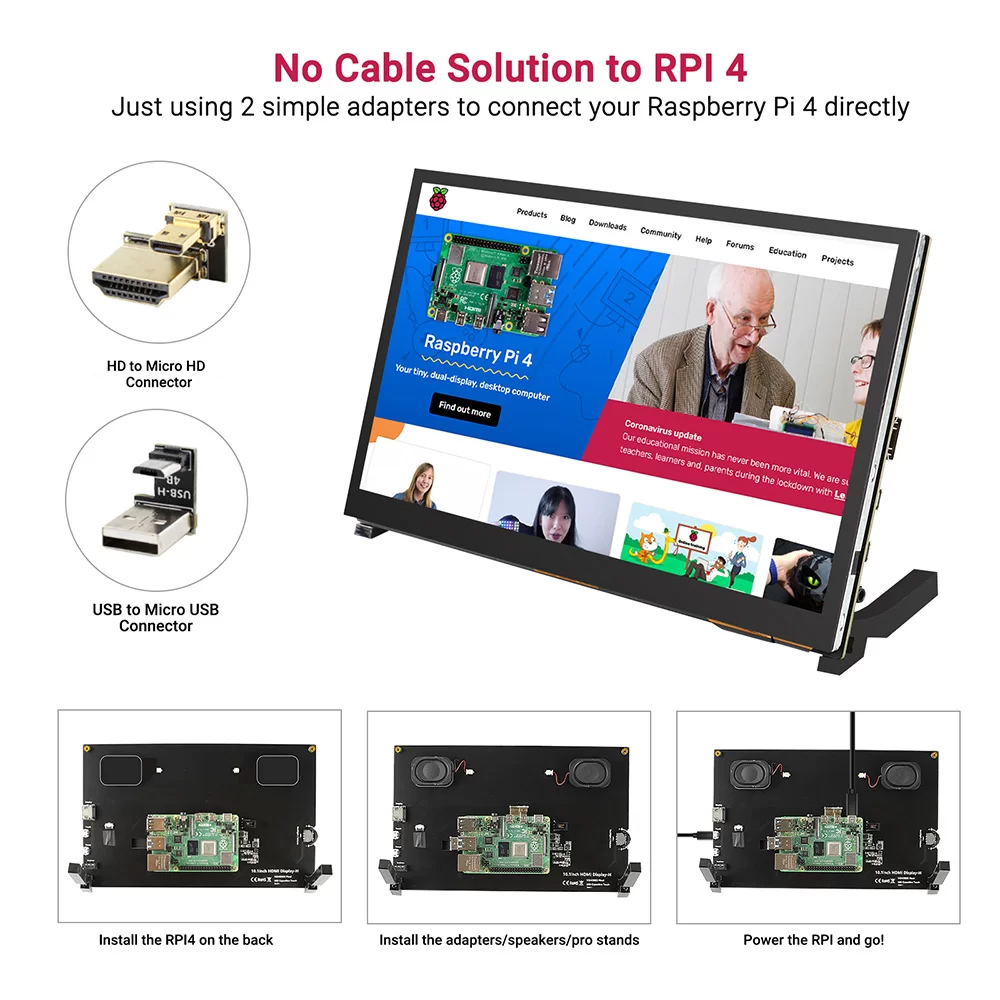

*When working with Raspberry Pi 4, for the system image of Raspberry Pi after 2021-10-30, for example on Bullseye, please modify "dtoverlay = vc4-kms-v3d" to "dtoverlay = vc4-fkms-v3d" in the config file, otherwise it may fail to start. But on Buster, please comment out "dtoverlay = vc4-fkms-V3D" by adding #.

Specification

• Screen Type: IPS screen
• Screen Size: 10.1 inch
• Resolution: 1024 x 600
• Touch IC: GT9271
• Power: MicroUSB（5V）
• Speakers Power: 8Ω 2W
• Aspect ratio：16：9
• Brightness 300 CD/M2
• Contrast Ratio： 800:1
• Response time: 200 ms
• Active display touch area： 222.72mm*125.28mm
• Video-Input Interface: HDMI-compatible interface

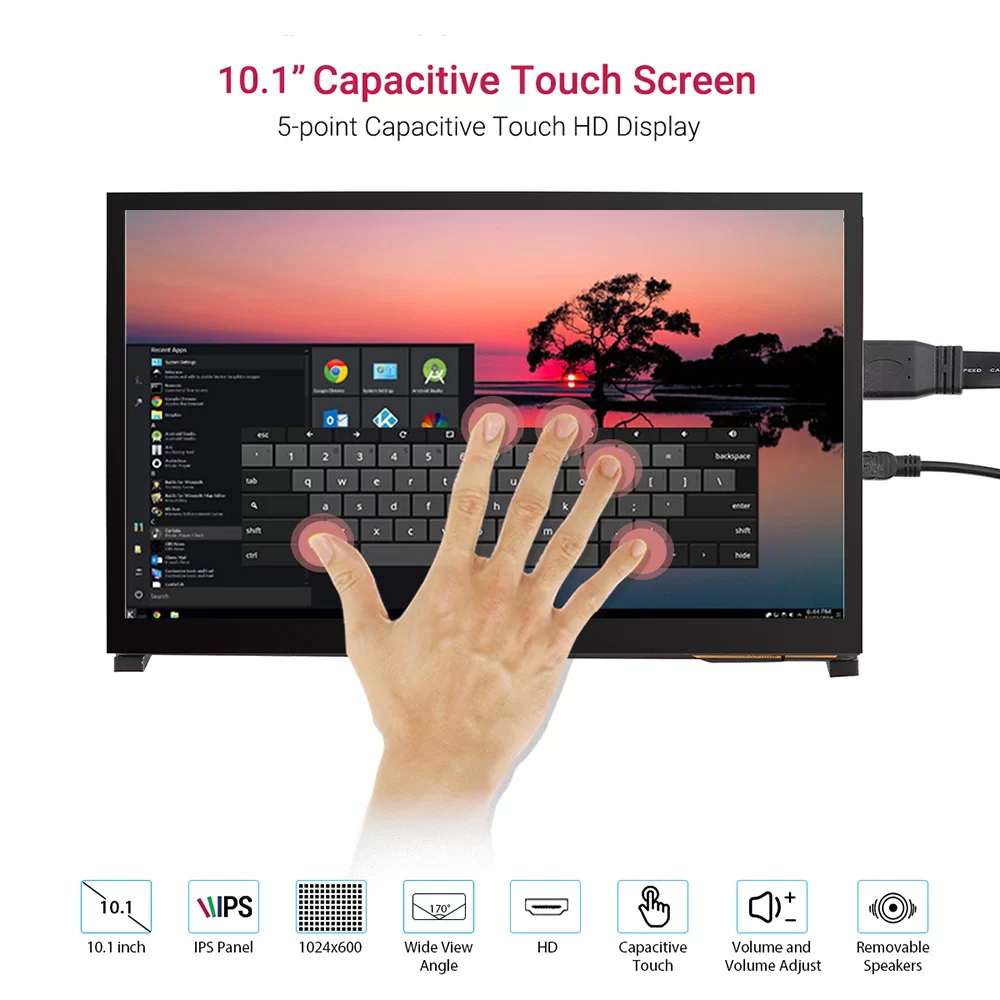

• Touch Screen Type: Capacitive Touch Screen
• Audio Output Interface: 3.5mm Audio Interface and Stereo speakers

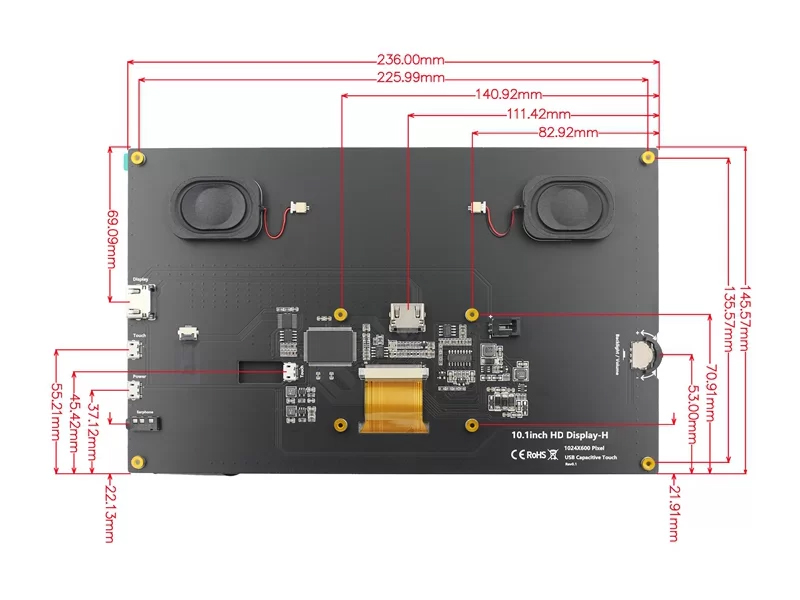

• Module Size: (L x W x H) 236.00 ×145.57 ×(16.60±0.2)mm
• Product Net weight: 520g
• Product weight: 900g
• Product longevity 3-6 years
• Certification: CE and ROHS

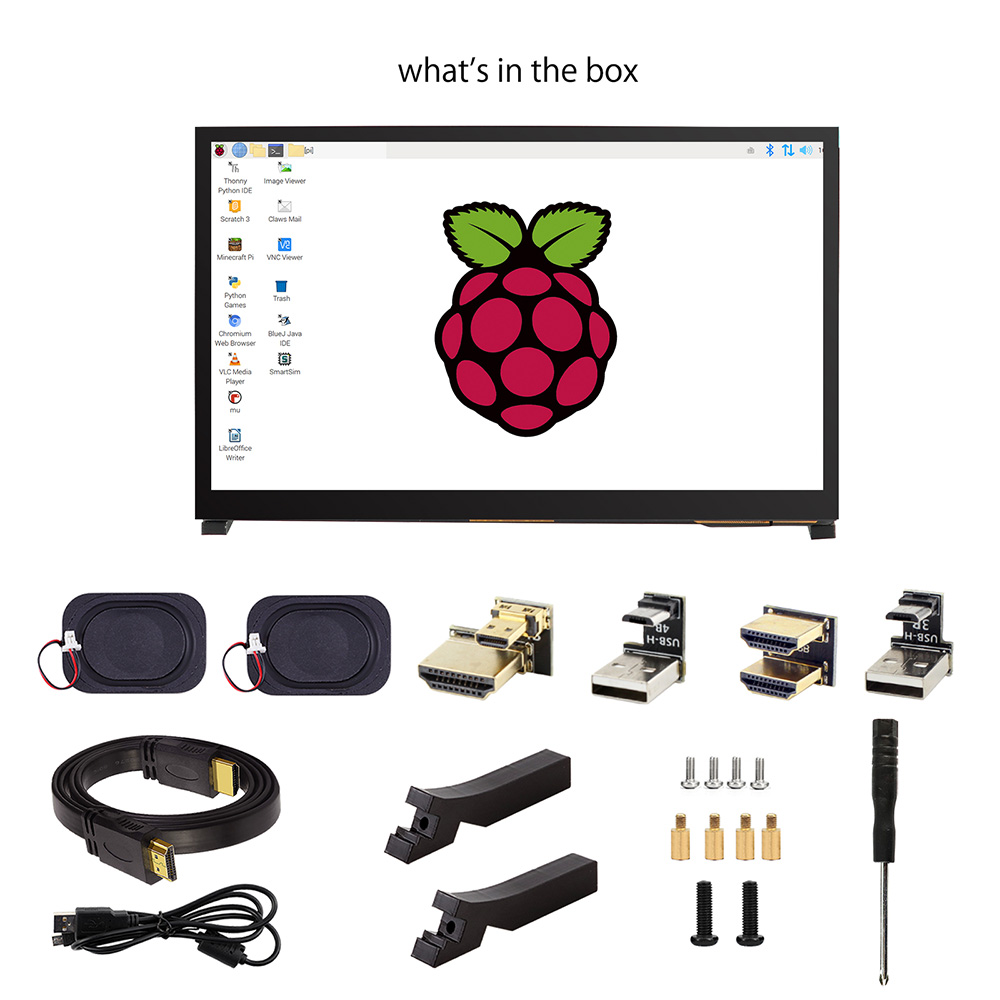

Package List

• 1 x 10.1-inch Touchscreen Monitor
• 2 x Stereo speakers
• 1 x HDMI-compatible Cable
• 1 x MicroUSB Cable
• 1 x HDMI-compatible to HDMI-compatible Adapter
• 1 x micro HDMI-compatible to HDMI-compatible Adapter
• 1 x MicroUSB to USB Adapter
• 1 x MicroUSB to USB Adapter
• 4 x Copper Posts and Screws(M2.5)
• 1 x Cross Screwdriver (small)
