Crowbits-One Wire Waterproof Temperature Sensor

SKU
CRB0088C
In stock
$2.30
Weight
35
-
+
With this product, you earn 3 loyalty points.
Overview

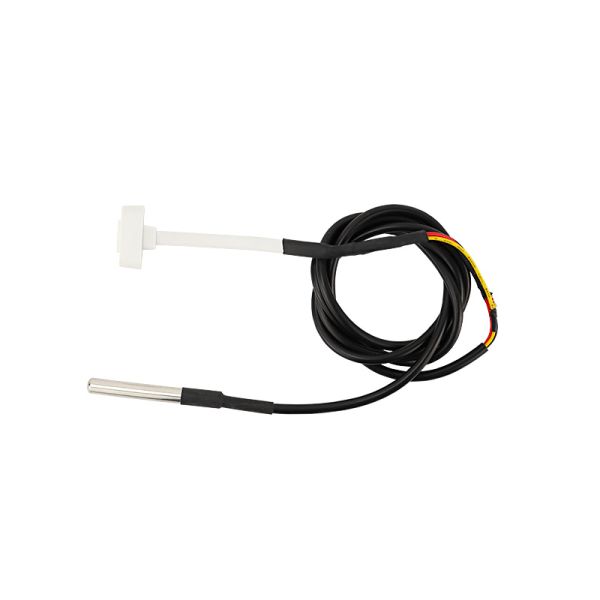

This is a waterproofed version of the DS18B20 Temperature sensor. Handy for when you need to measure something far away, or in wet conditions.

Description:

This is a waterproofed version of the DS18B20 Temperature sensor. Handy for when you need to measure something far away, or in wet conditions. While the sensor is good up to 125 degrees, the cable is jacketed in PVC so we suggest keeping it under 100 degrees. Because they are digital, you don't get any signal degradation even over long distances! The DS18B20 provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface so that only one wire (and ground) needs to be connected from a central microprocessor. It Usable with 3.0-5.5V systems. Because each DS18B20 contains a unique silicon serial number, multiple DS18B20s can exist on the same 1-Wire bus. This allows for placing temperature sensors in many different places. Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings, equipment or machinery, and process monitoring and control.





Features

9 to 12bit selectable resolution

one digital pin for communication

Multiple sensors can share one pin

Query time is less than 750ms





Specification

3.0V to 5.5V input

Temperature range: -55 to +125 degree

0.5degree Accuracy from -10 to +85 degree

Stainless steel tube 6mm diameter by 30mm long

Cable length: 90cm





Wiki & External links

Wiki
