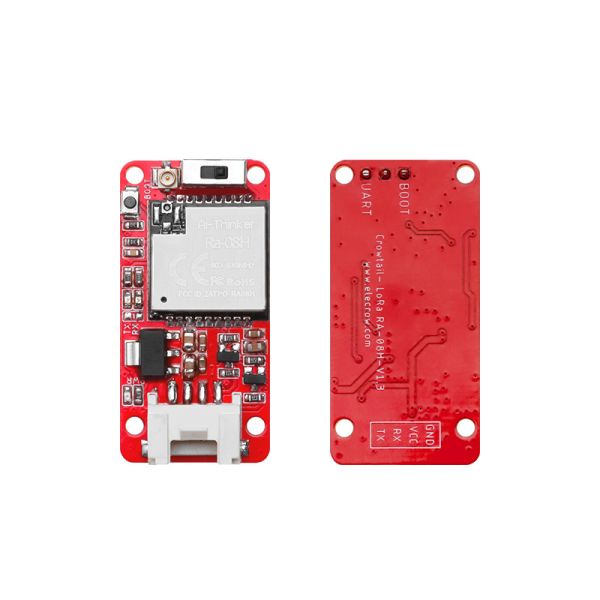

Crowtail- LoRaWAN Lora RA-08H/LR1262 Module for Long Range Communication (803-930Mhz)

Rating:
97 % of 100
$11.00
Availability: In stock
SKU
CRT01158H
Brand
elecrow
Weight
15g

【LoRa module】LoRa module with ultra-long-distance spread spectrum communication function
【High contrast】Supports -138dBm @125Kz
【Low power consumption】Supports multiple sleep modes, deep sleep current as low as 0.9uA
【Support spread spectrum frequency】Supports SF5/SF6/SF7/SF8/SF9/SF10/SF11/SF12

Description

Crowtail - LoRa RA-08H uses the Ra-08H (ASR6601) module, which has ultra long distance spread spectrum communication. Its chip ASR6601 is a general-purpose LPWAN wireless communication SoC integrated with RF transceiver, modem and a 32-bit RISC MCU. The Ra-08H module supports LoRa modulation and traditional (G) FSK modulation under the LPWAN use case; The transmitter also supports BPSK modulation and (G) MSK modulation.

The Ra-08H module provides ultra long range and ultra-low power consumption communication for LPWAN applications and can be widely used in intelligent instruments, supply chain and logistics, home building automation, security systems, remote irrigation systems and other scenarios.

Learn more about Crowtail Series, click here.

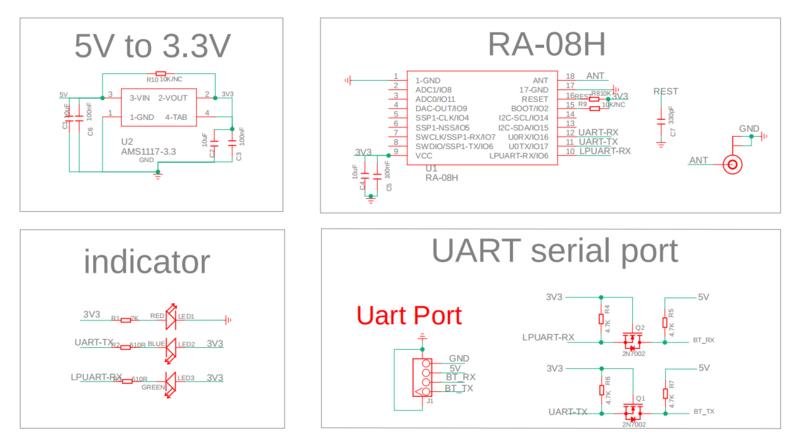

diagram of LoRaWAN module

Feature

  • High sensitivity: -138dBm @125Kz SF12
  • Support LoRa/(G)FSK/BPSK/(G)MSK modulation
  • Support multiple sleep modes: depth sleep current is low to 0.9uA
  • Support spread spectrum factor: SF5/SF6/SF7/SF8/SF9/SF10/SF11/SF12



Specifications

  • Voltage: 3.3~5V
  • Theoretical maximum transmission power+22dBm
  • Supported frequency band: 803~930MHZ
  • High sensitivity: -138dBm@125KzSF12
  • Support spread spectrum factor: SF5/SF6/SF7/SF8/SF9/SF10/SF11/SF12
  • Embedded memory: 128KB FLASH, 16KB SRAM
  • Support LoRa/(G) FSK/BPSK/(G) MSK modulation
  • Maximum transmission distance 1KM (ideal value for open space)
  • With download and communication switching functions, users can customize programming
  • Configure the first-generation IPEX seat
  • Dimension (mm): 40 (L) * 20 (W) * 7.5 (H)



Package List

  • 1x Crowtail Lora RA-08H/LR1262 Module(optional)
  • 1x Crowtail Cable
  • 1x Antenna
