Crowtail- Weight Sensor 2.0

In stock
With this product, you earn 10 loyalty points.

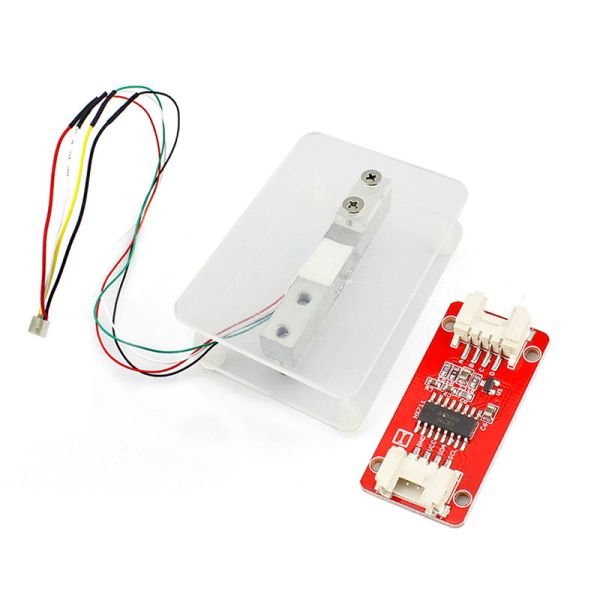

Crowtail- Weight Sensor
This is a crowtail series of load cell kits, by using it, you can DIY their own electronic scales, and it is compatible with arduino, it is also very convenient to use, in your arduino project, it can serve as a good Own role. It uses the HX711 amplifier, HX711 is a precision 24-bit analogto-digital converter (ADC) designed for weigh scales and industrial control applications to interface directly with a bridge sensorand the measurement range of weight sensor is 0-3000g


  • Crowtail interface
  • Low standby current
  • High accuracy


  • Working Voltage:DC 5V
  • Working Current:400mA
  • Standby current:200uA
  • Operation temperature range: -40 ~ +85℃
  • Weight sensor capacity: 3kg
  • Dimensions(mm):40.0(L)x20.0(W)x6.8(H)

Package list

  • Crowtail- Weight Sensor Kit x1
  • Crowtail cable x 1

Wiki & External links

  • Eagle files
