Elecrow 11.6 Inch Touchscreen 1920x1080 IPS Monitor compatible with Raspberry Pi, Jetson Nano, Beaglebone

Rating:
100% of 100
SKU
DISSF116P
Weight
1440 g
Availability
In stock
Brand
elecrow
$145.90
-
+
Overview

【1080p FHD Monitor】 ELECROW 11.6 in portable monitor displays great pictures with 1920x1080 resolution.

【10-point Capacitive Touch Monitor】 This 1080P touchscreen monitor supports capacitive touch for more accurate and sensitive touching functions.

【Adjustable stand and multiple display modes】 The portable monitor comes with a 90° adjustable stand and supports VESA mounting mode. Supports multiple display modes such as mirroring, expansion, and splitting.

Description

A different size from the SF101T, this 11.6" Full HD portable monitor supports resolutions up to 1920x1080 for vibrant, crystal clear images. IPS technology delivers a revolutionary colour experience.Supports 10-point touch, no additional driver required, just connect the USB cable to a signal output device such as PC/Raspberry Pi to realise the touch screen function.Equipped with HDMI-compatible/VGA port, built-in high quality speakers and 3.5mm headphone output jack.

It can be used with most devices with HDMI-compatible or VGA ports, and is compatible with Win 7 8 10 PC, Raspberry Pi, Jetson Nano, Beaglebone and other single-board computers, as well as industrial and medical equipment.

11.6-inch compact size, 75x75mm VESA wall mounting holes, making your space planning more flexible.

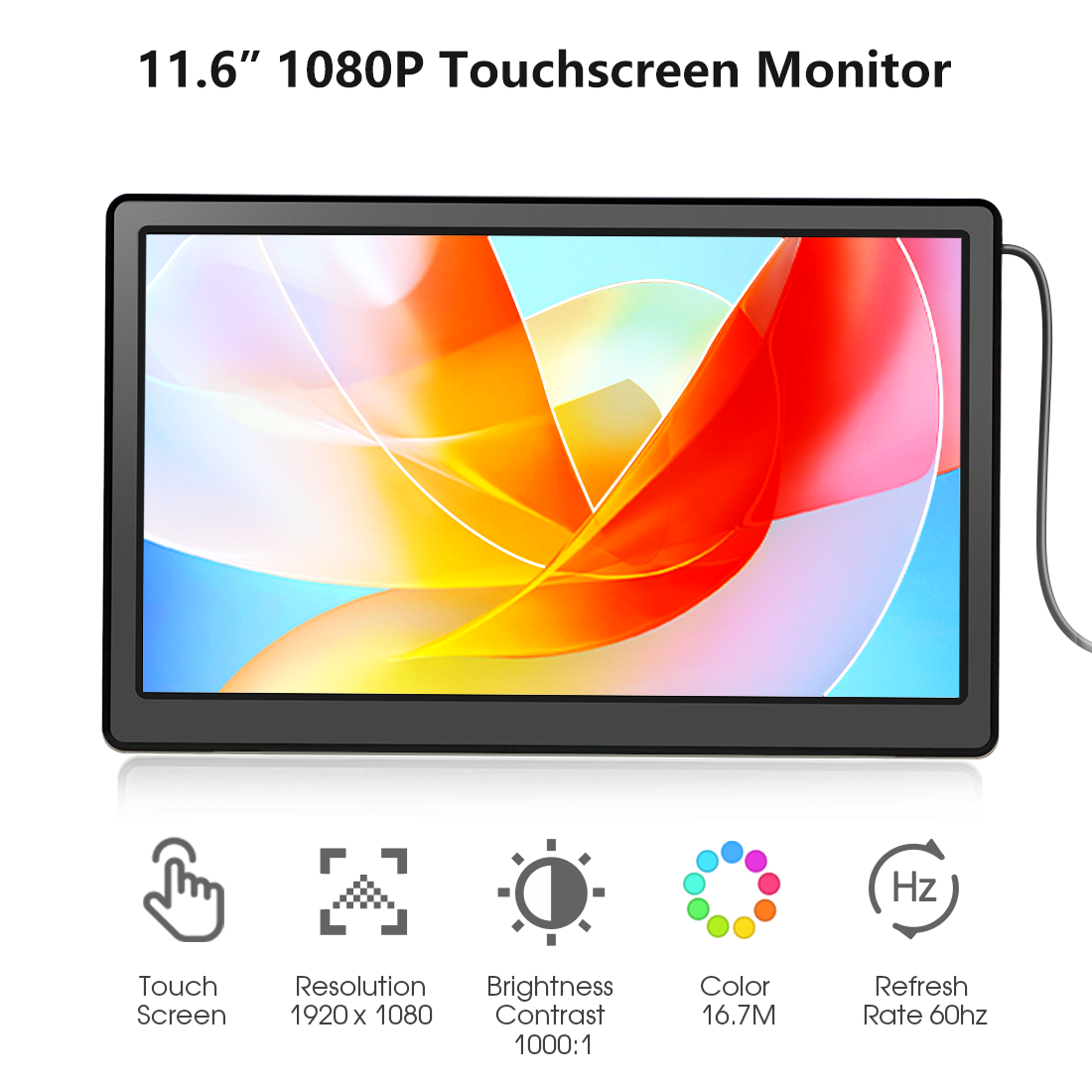

11.6 inch 1080P Touchscreen Monitor

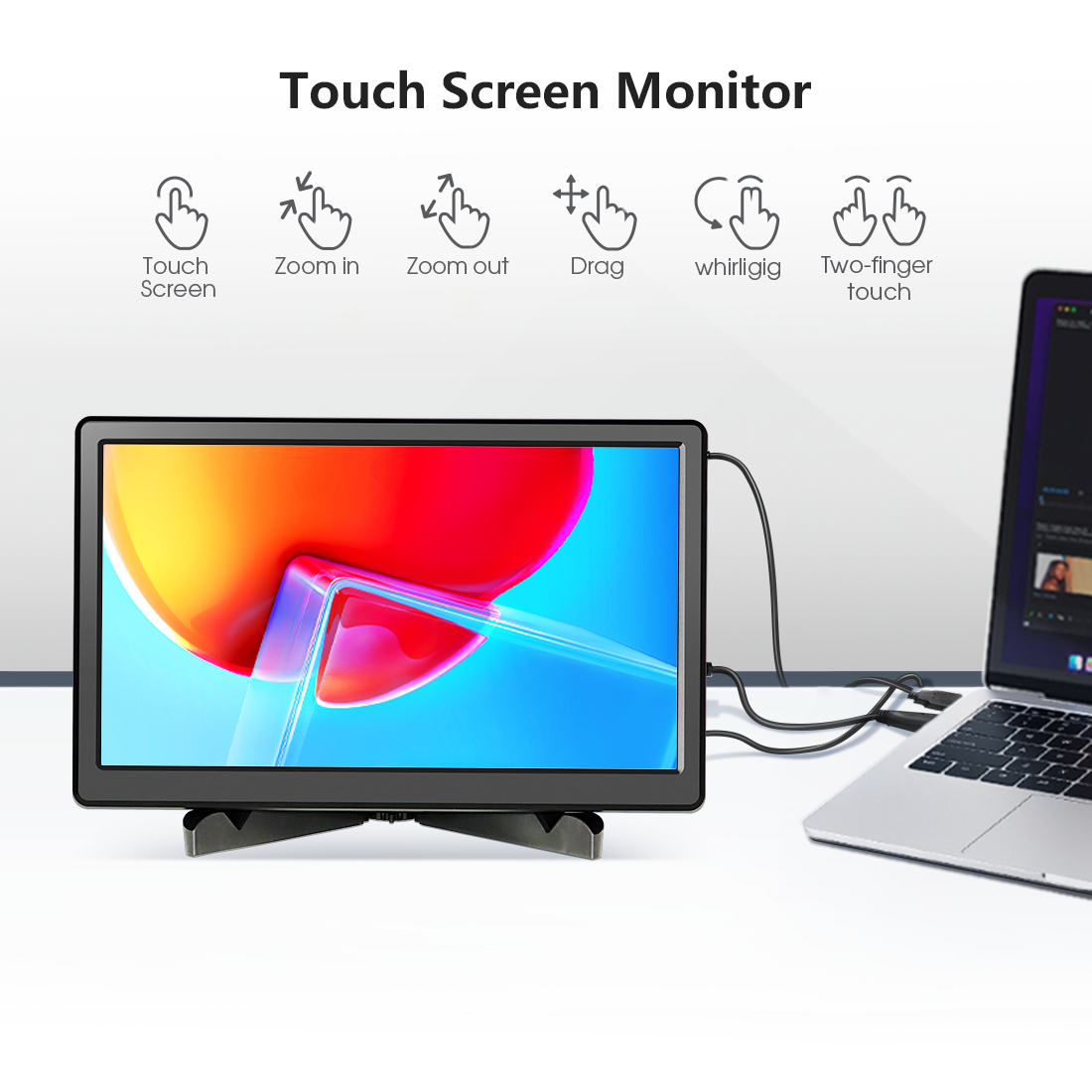

Capactive 10-point touch

Supports 10-point capacitive touch with excellent accuracy and sensitivity.

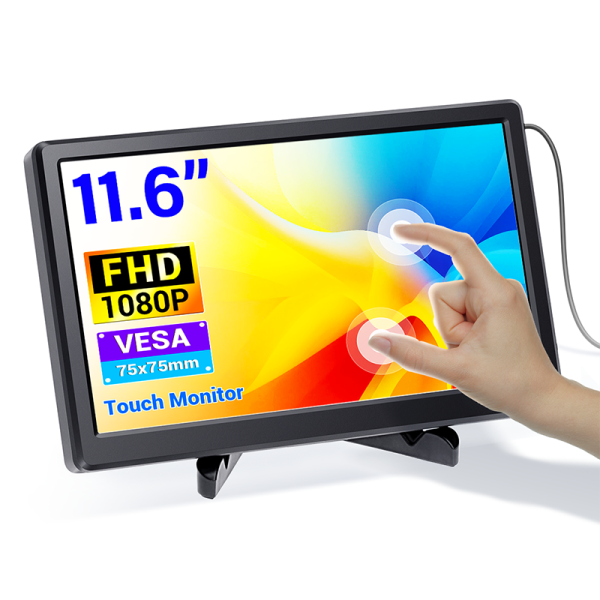

11.6 inch display with 10-point touch

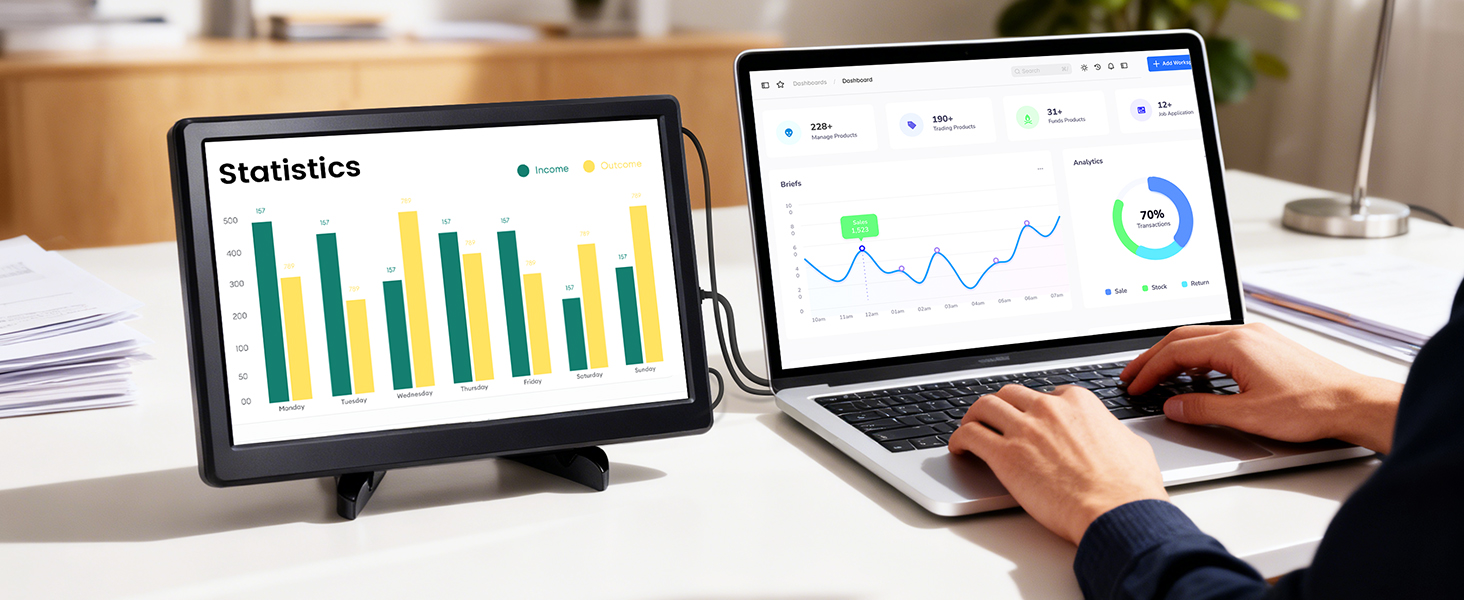

Pairs Perfectly with Your Notebook

Pairs Perfectly with Your Notebook, adjust to your needs.
11.6 inch 1080P pairs with your notebook

Multiple connection methods

Two connection methods, you can use HDMI-compatible connection or VGA connection.

11.6 inch with multiplt connection methods

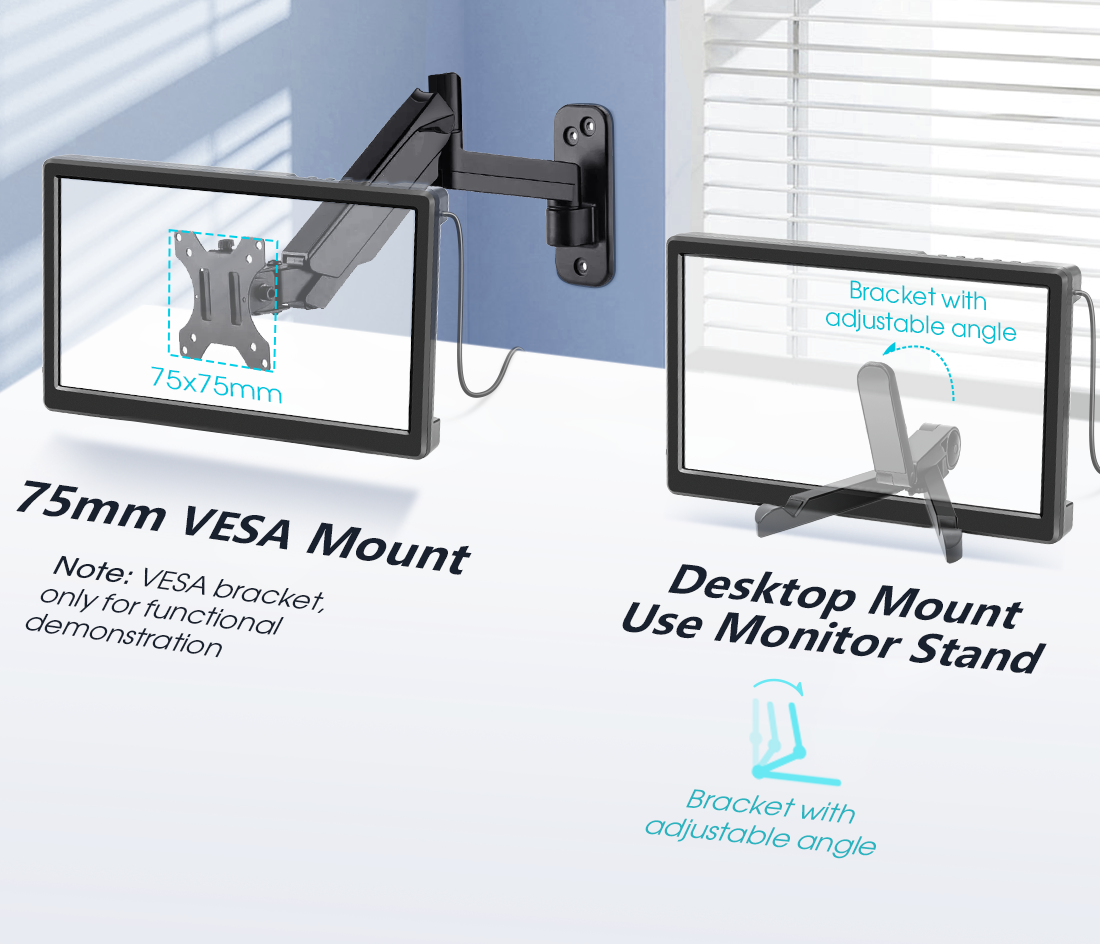

VESA mount supported

Supports VESA wall-mounted installation mode to save your space to the maximum extent.
11.6 inch Monitor supports VESA

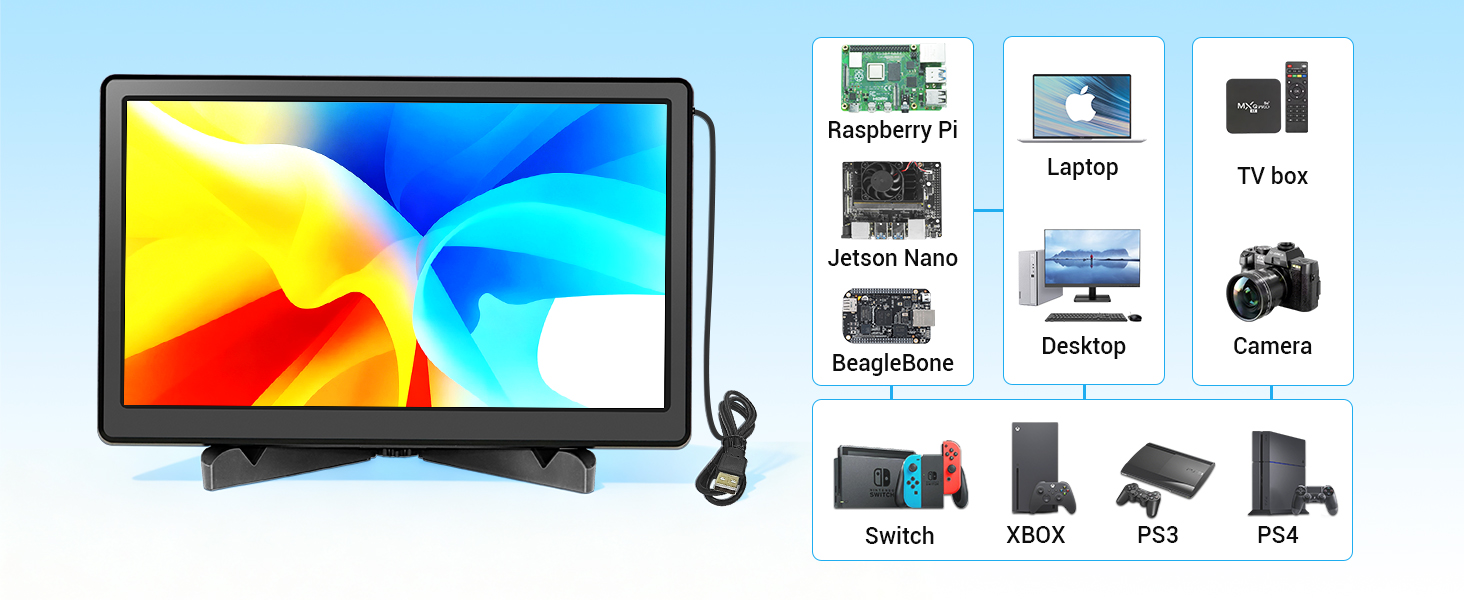

Wide compatibility

It can compatible with a variety of systems and devices such as Windows, Max, Linux, etc.

Wide compatibility with 11.6 inch display

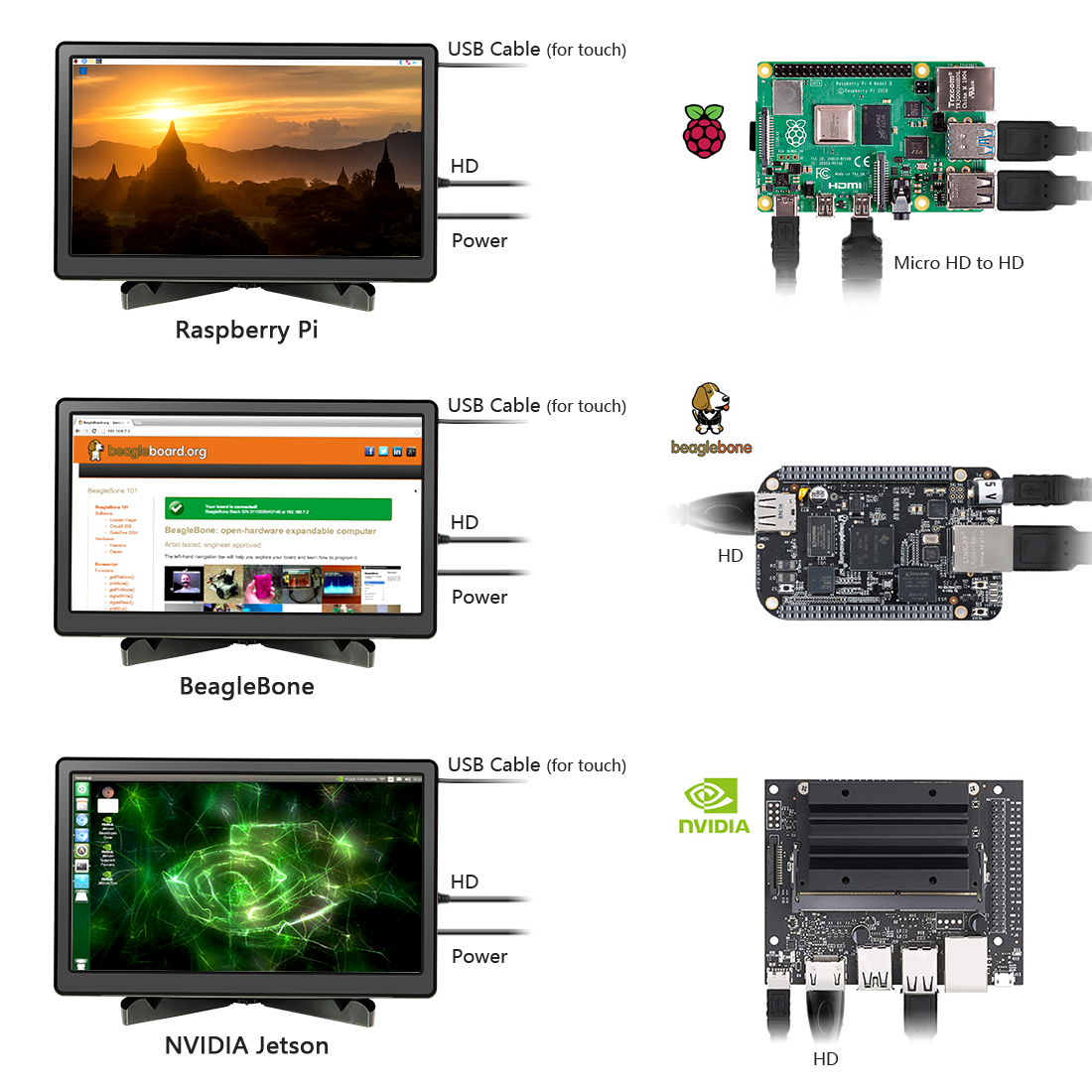

connect with Raspberry Pi

Multi-interface

11.6 inch touch screen with multi-interface

Feature

  • Full HD 1080P IPS Screen, up to 1920X1080 resolution,clear images and rich display colors.
  • Multiple display methods, to meet different usage needs.
  • Capacitive 10-point touch with excellent precision and sensitivity,no need to install the driver, just plug and play.
  • Built-in dual speakers deliver high-quality audio quality.
  • Flexible connectivity with HD and VGA ,compatible with PS4 XBOX360, Raspberry Pi, industrial equipment, car audio and video, car headrests, and medical equipment monitors.



Specification

  • Screen Size: 11.6 inch
  • Resolution: 1920*1080
  • Touch: capacitive 10-point touch
  • Color: 16.7M(bit)
  • Viewing angle(single-sided):85°
  • Backlight brightness: 220cd/m2
  • Backlight Life: 3000H
  • Brightness contrast: 1000/1
  • Response time: 35ms
  • Supported operating systems: Windows/MacOs/Linux
  • Supported interfaces: 3.5mm headphone/HDMI-compatible interface/VGA/3.5mm audio input
  • Operating environment range: -20-70℃
  • Storage temperature: -30~80℃
  • Overall dimensions: 282mmx177x30mm
  • Display/touch area: 256.3x144.2mm
  • Net Weight: 790g



Package List

  • 1x 11.6 inch Touch Monitor
  • 1x HDMI-compatible Cable
  • 1x Power Supply
  • 1x Stand
  • 1x User Manual



Wiki & External links
