5 Inch 800*480 Resolution Display for Raspberry Pi Compatible with Jetson Nano, Beaglebone

Rating:
80 % of 100
$31.90
Availability: In stock
SKU
DIS05490T
Brand
elecrow
Weight
240g

【5 Inch LCD Display】With 800*480 resolution, 5-point capacitive touch;

【Plug and Play】Use HD communication, no need to install drivers, easy to use;

【Wide Compatibility】Compatible with multiple systems (Raspbian、Ubuntu、Windows、Android、MAC OS and Chrome OS);

【Connect with Raspberry Pi】Four nut seats on the back, can easily install Raspberry Pi(5/4/4B/3/3B).

Description

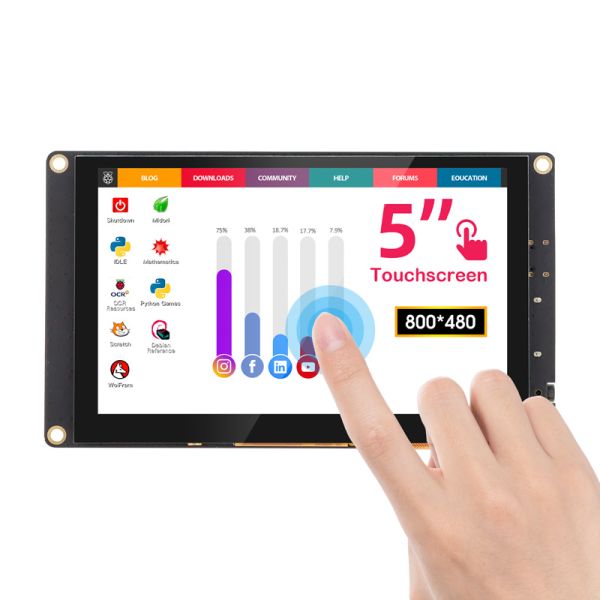

This is a 5-inch HDMI-Compatible capacitive touch monitor with 800*480 resolution.

It has a headphone port and speaker interface, users can choose the appropriate audio output method according to their own needs; it uses a capacitive USB touch screen, and the touch function can be realized by simply powering on the USB touch port. There is no need to install a driver, just plug and play. Very convenient to use.

The four corner holes on the back allow you to mount the monitor to other devices. The back of the monitor is equipped with 4 nut seats for mounting and fixing the Raspberry Pi. Using the HD port to transmit signals, it is compatible with a variety of systems such as Raspbian, Ubantu, Windows, Android, etc.

If you have screen customization needs, please contact us at service@elecrow.com.

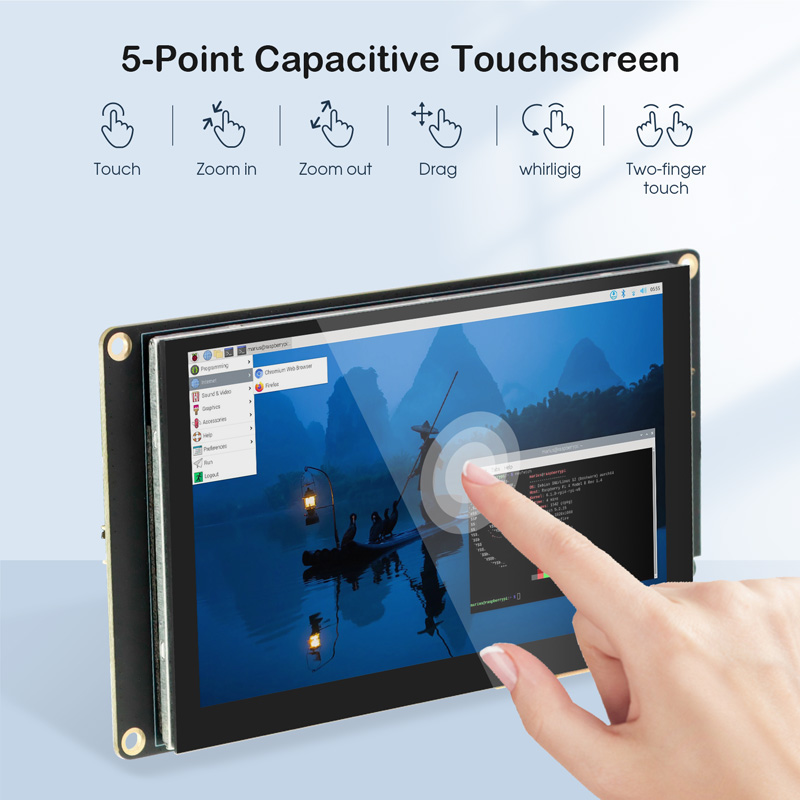

5-Point Capacitive Touch Screen, Smooth and Accurate.

5 inch display support 5 point capacitive touch

Support Multiple Systems, Plug and Play

5 inch monitor support multiple systems

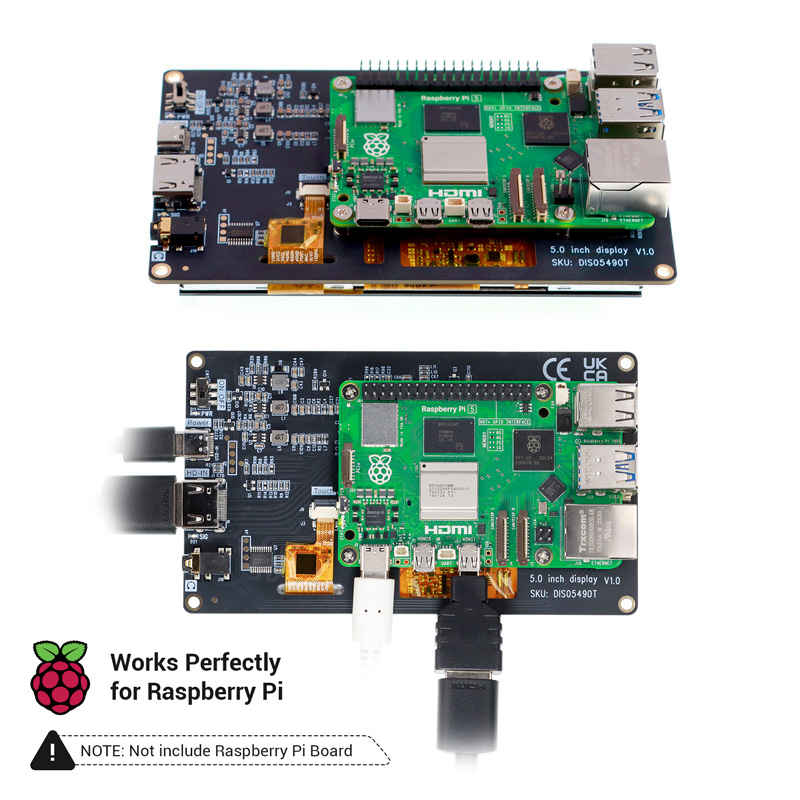

5 inch display works perfectly for Raspberry Pi

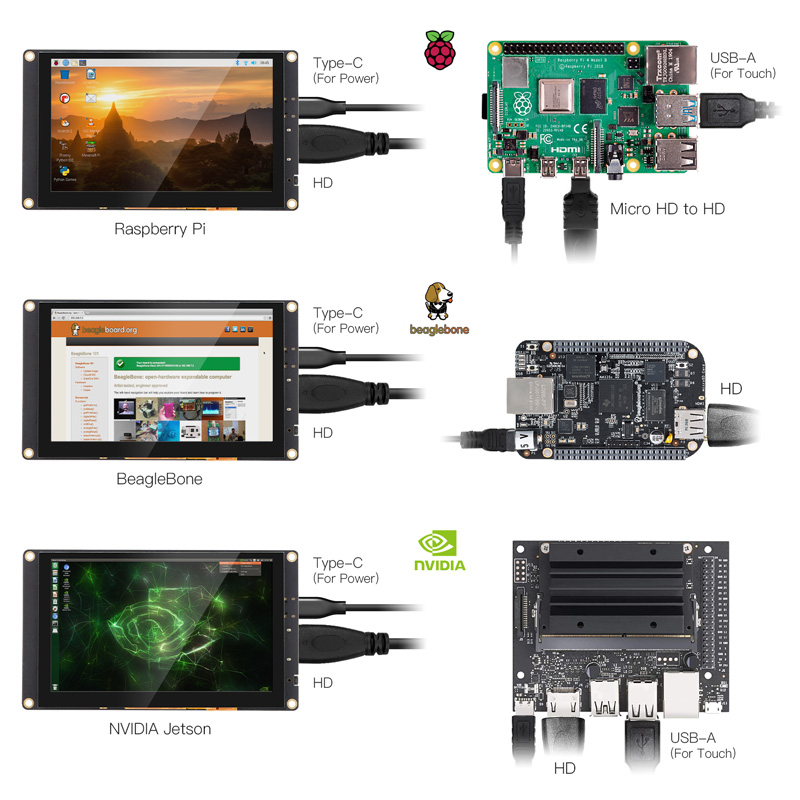

5 inch display connect with different SBCs

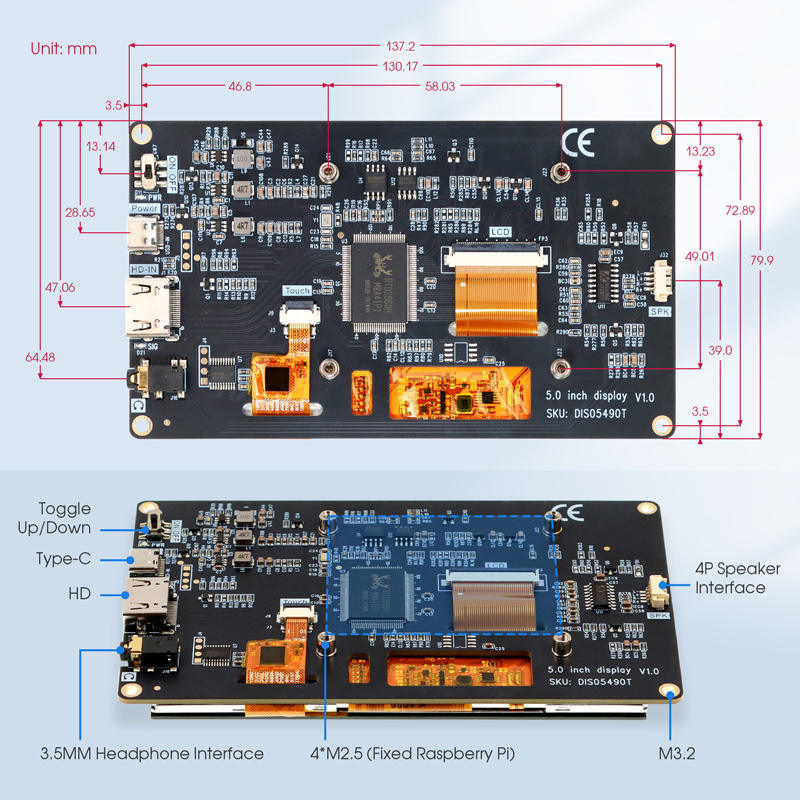

Interface Details

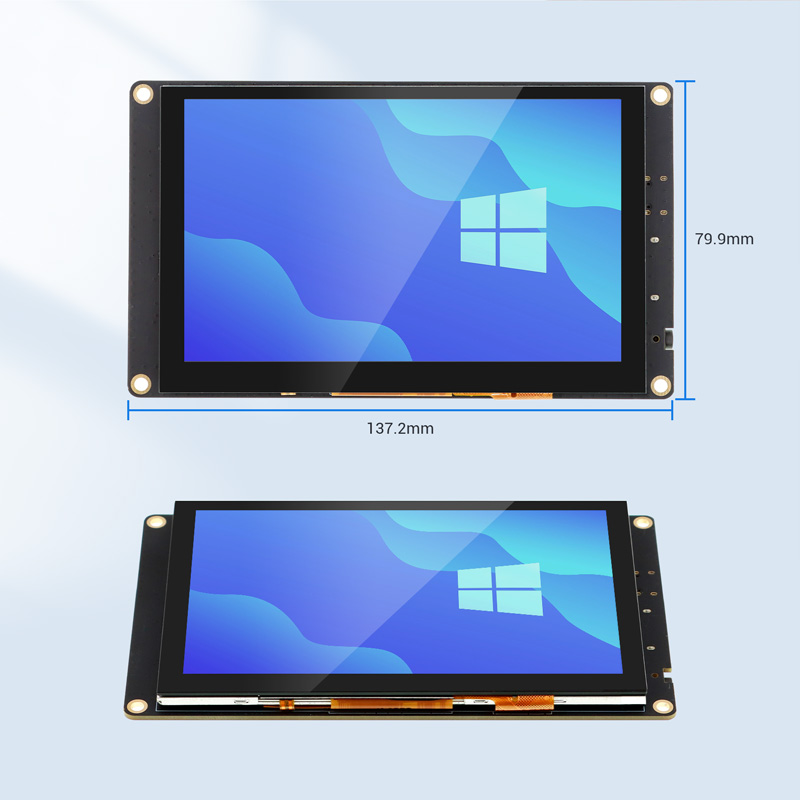

5 inch Raspberry Pi Monitor Interface Overview5 inch display dimension

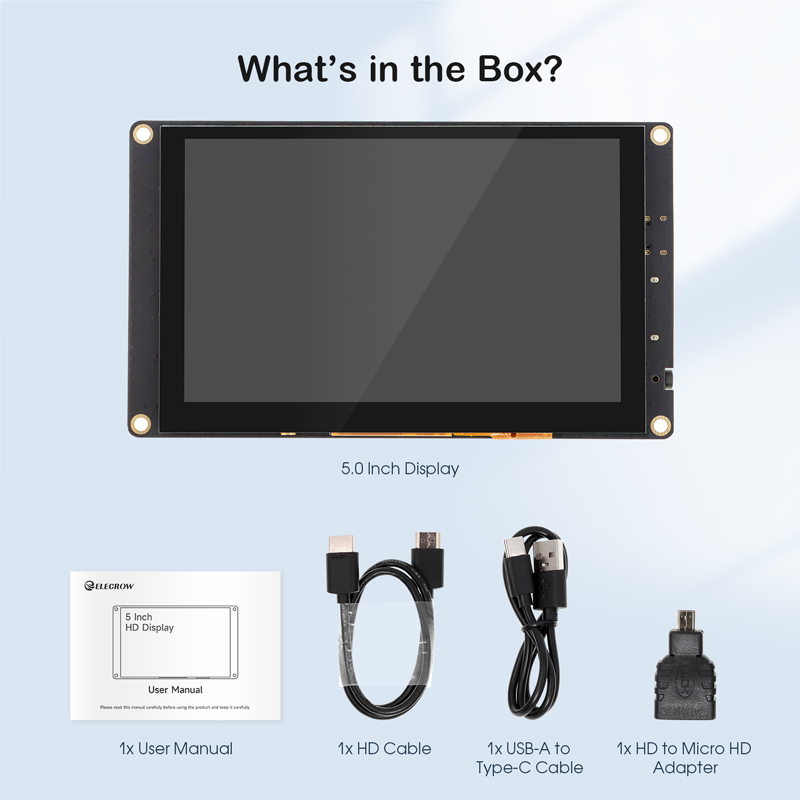

Package Details
Package list of 5 inch display

Feature

  • 5.0 Inch LCD Display with 800*480 resolution and 5 point capacitive touch;
  • Build-in speaker and headphone jack;
  • Compatible with multiple systems(Raspbian、Ubuntu、Windows、Android、MAC OS andChrome OS);
  • Plug and play, no need to install drivers;
  • Four nut seats on the back for easy installation of Raspberry Pi.

Specification

Screen Size

5.0 Inch

Screen Type

TN Panel

Display

TFT-LCD

Resolution

800 x 480

Brightness

300cd/m²

Touch Screen Type

5point Capacitive Touch

Driver IC

ILI6122 & ILI5960

External Power Supply

DC5V-2A

Backlight Switch

Toggle up/down

Interface

Power input & USB touch interface;

4P speaker interface ;

3.5MM headphone interface

Active Area (W x H)

108*65mm

Module Size (L x W x H)

137*80*14 (mm)

Net Weight

140g





Package List

  • 1x 5 Inch Display
  • 1x HD Cable
  • 1x USB-A to Type-C Cable
  • 1x HD to Mini HD Adapter
  • 1x User Manual
