Official Raspberry Pi 5 Case with Fan Red/White

Rating:
100 % of 100
$12.50
Availability: In stock
SKU
RPD08080C
Weight
100g

Description

The Raspberry Pi case for the Raspberry Pi 5 is a four-part case that clamps together and features an active cooling fan. It keeps your Raspberry Pi 5 at a comfortable operating temperature, even under heavy load. It is available in white and red color.

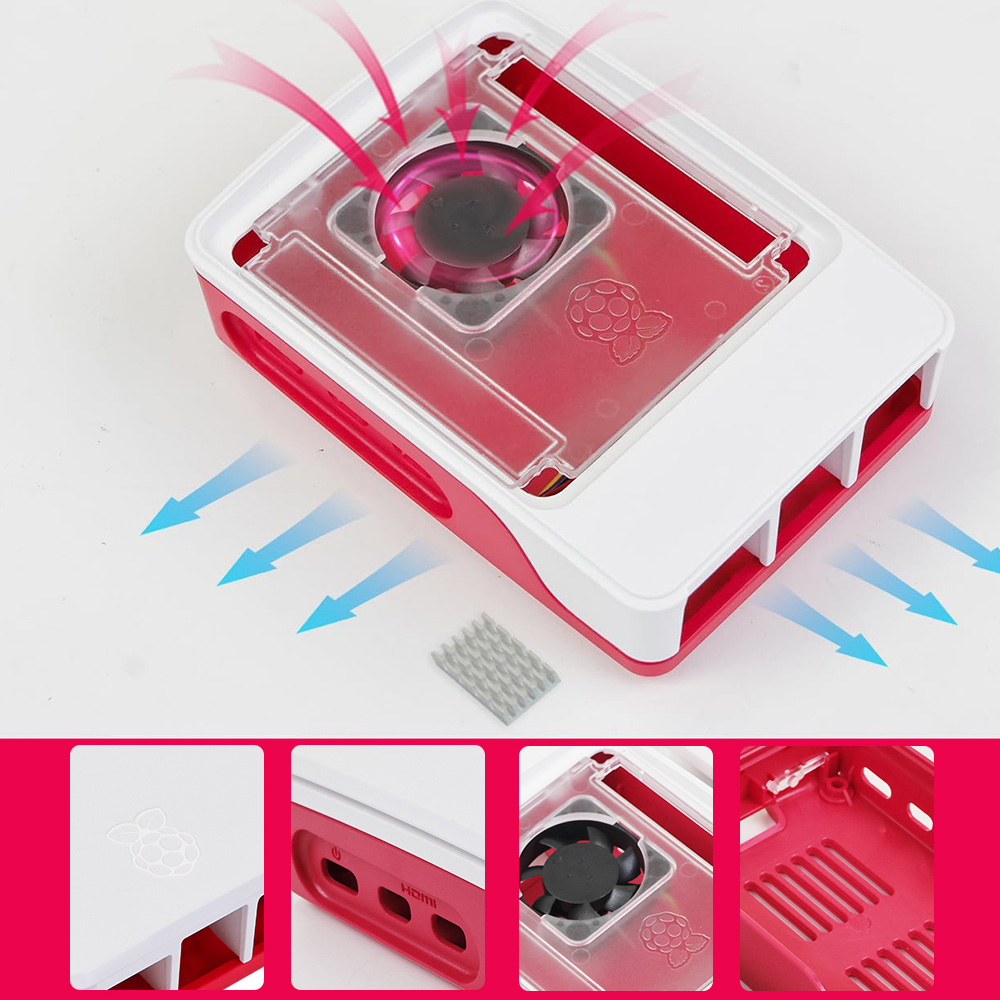

One of the standout features of this case is its improved thermal management system. With the Raspberry Pi 5's higher peak power consumption, to further enhance cooling capabilities, the case incorporates a variable-speed fan. This fan is intelligently powered and controlled through a dedicated connector on the Raspberry Pi 5 PCB. This refinement ensures that the Raspberry Pi 5 can operate at its full potential without overheating or performance degradation.

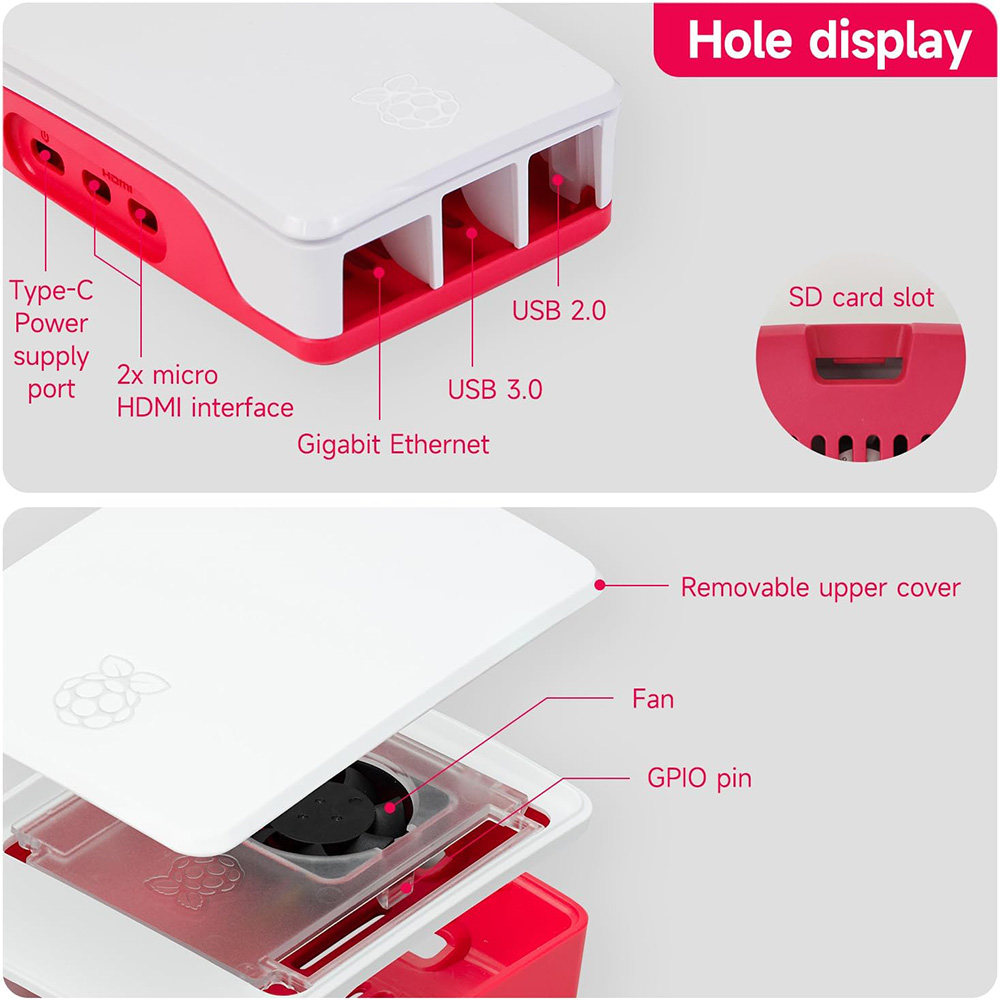

Raspberry Pi 5 case

Raspberry Pi 5 case

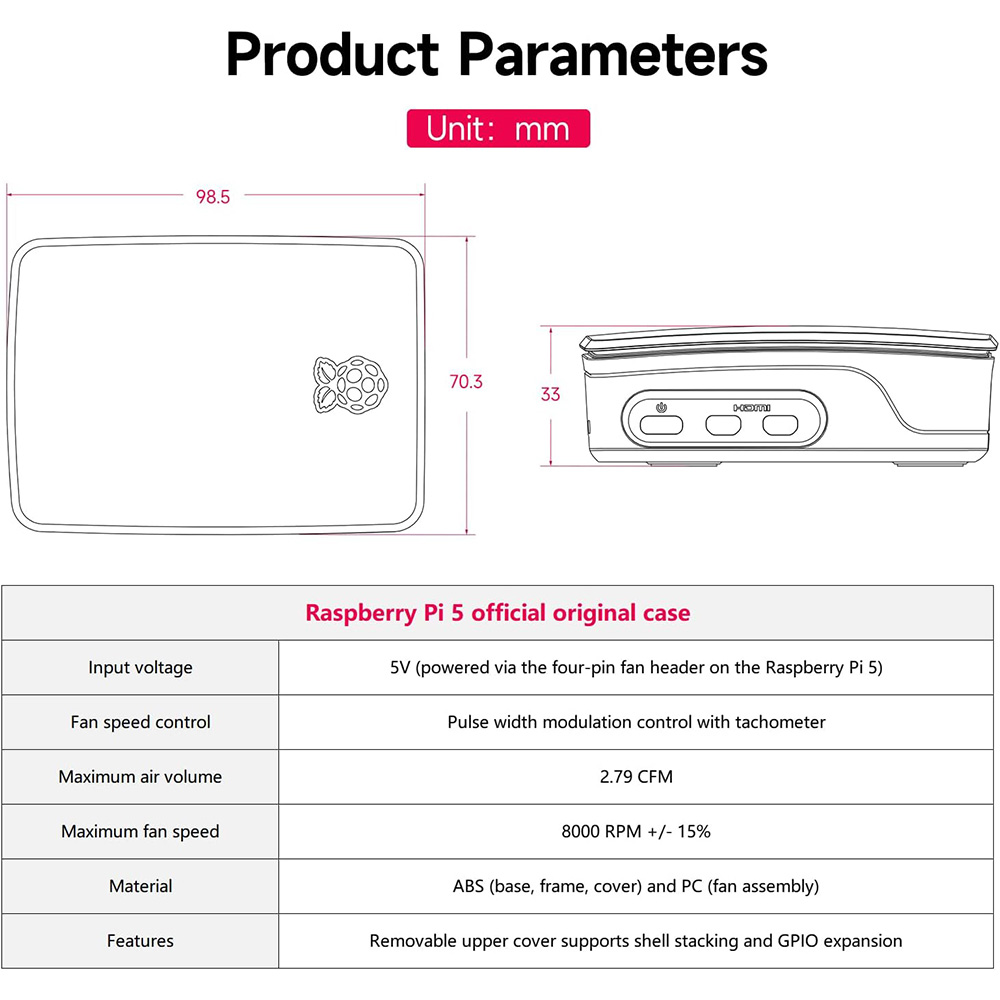

parameter of Raspberry Pi 5 case

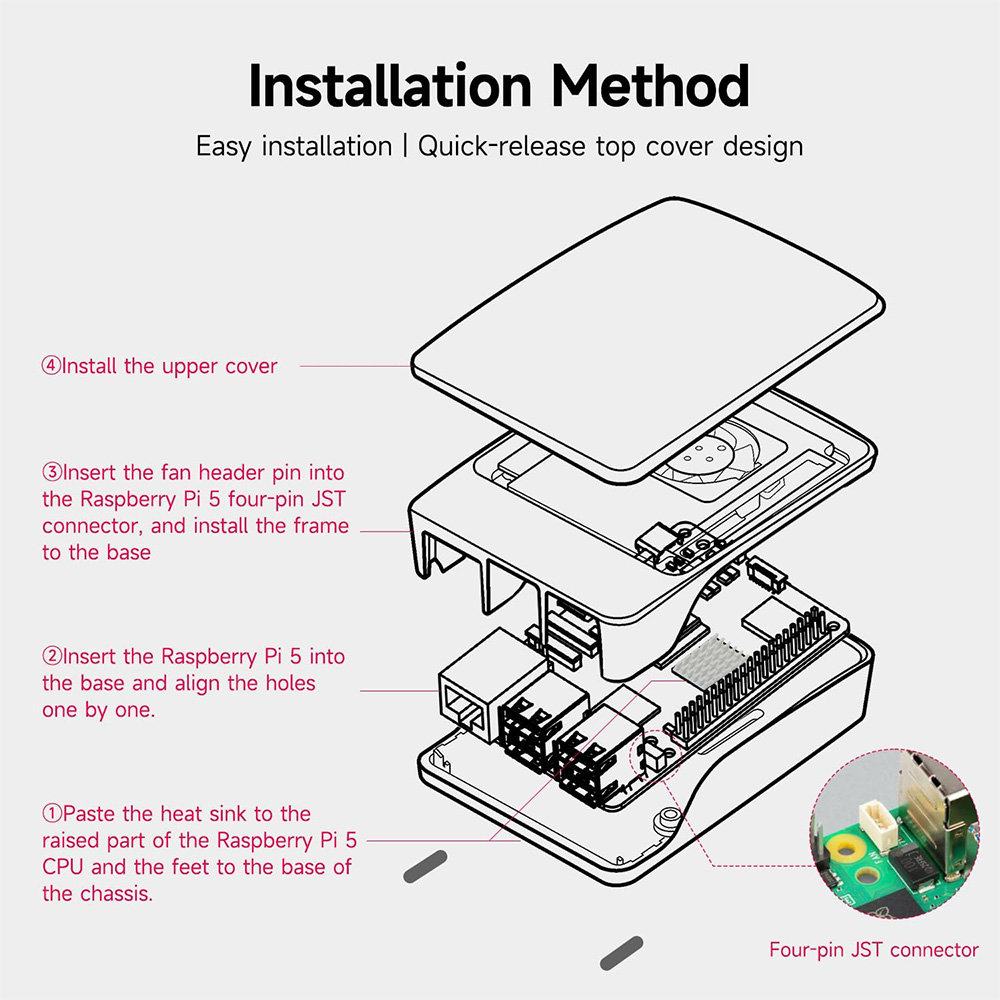

installation method of Raspberry Pi 5 case

Feature

  • Improved cooling performance: With a cooling pad, enhanced cooling performance ensures optimal performance with higher peak power consumption of Raspberry Pi 5;
  • Integrated variable speed fan: Contains a variable speed fan that can be conveniently powered and controlled via a dedicated connector on the Raspberry Pi 5 PCB for efficient temperature management;
  • Integrated mounting function: allows boxes to be stacked.



Specification

Input voltage

5V DC supplied via four-pin fan header on Raspberry Pi 5

Fan speed control

Pulse width modulation control with tachometer

Maximum airflow

2.79 CFM

Maximum fan speed

8000 RPM +/- 15%

Case material

ABS (base, frame, lid) and PC (fan assembly)

Color

Red/White





Package List

  • 1x Raspberry Pi 5 Case with Fan
