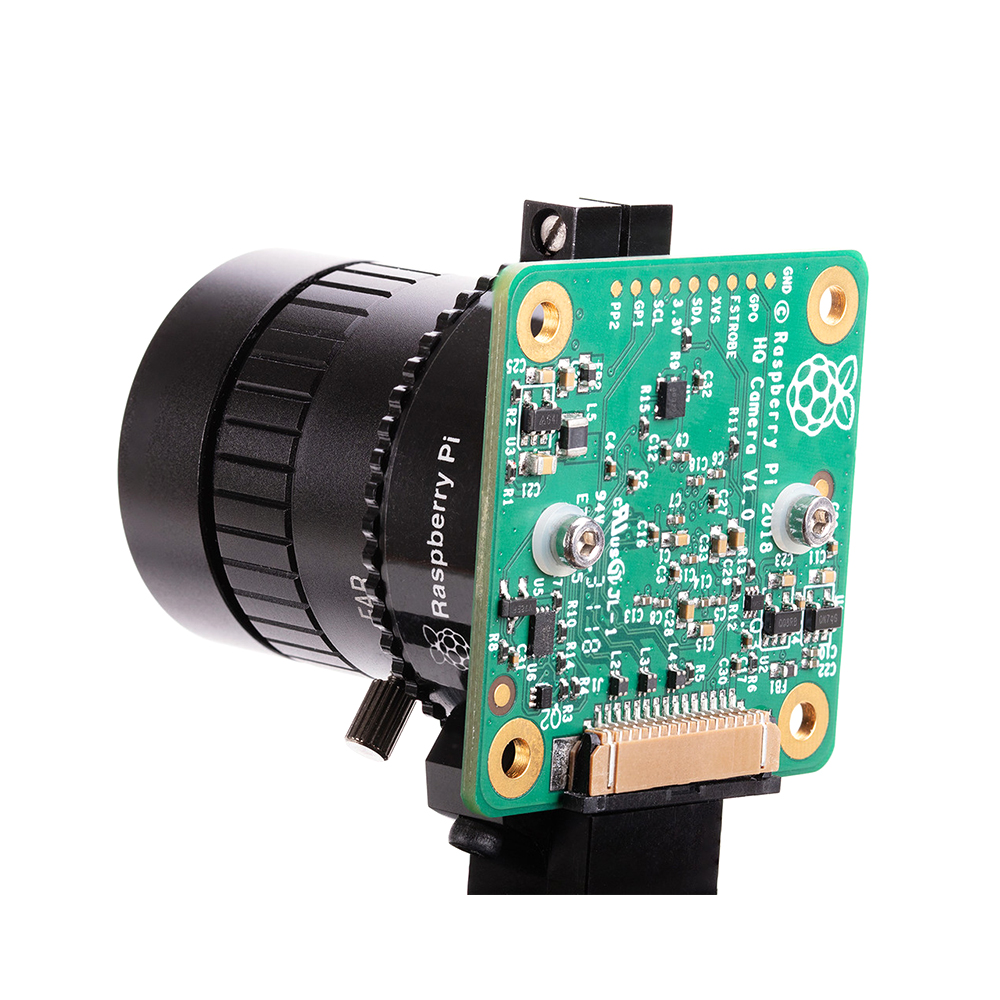

Raspberry Pi HQ Camera CS Mount Camera Module

Description

The Raspberry Pi high-quality camera is a camera accessory for the Raspberry Pi series. It is specially designed for use with CS-mount lenses. The C-mount lens can be used with a Raspberry Pi single-board computer through an adapter. It offers higher resolution (12 megapixels compared to 8 megapixels) and sensitivity (approximately 50% more area per pixel for improved low-light performance) than the existing camera module v2. 12.3-megapixel Sony IMX477 sensor, 7.9mm diagonal image size, back-illuminated sensor architecture, adjustable back focus. It is compatible with all models of Raspberry Pi computers from Raspberry Pi 1 Model B and above.

NOTE: This camera module requires a lens but is not included.

Feature

• Raspberry Pi high-quality camera sensor: 12.3-megapixel Sony IMX477R, blacklight CMOS with excellent sensitivity, 7.9mm diagonal sensor for impressive low-light performance
• Suitable for industrial and consumer applications: Provides the highest level of visual fidelity and integrates with professional optics
• Integrated infrared cut filter, compatible with all models of Raspberry Pi
• Compatible with C-mount and CS-mount lenses

Specification

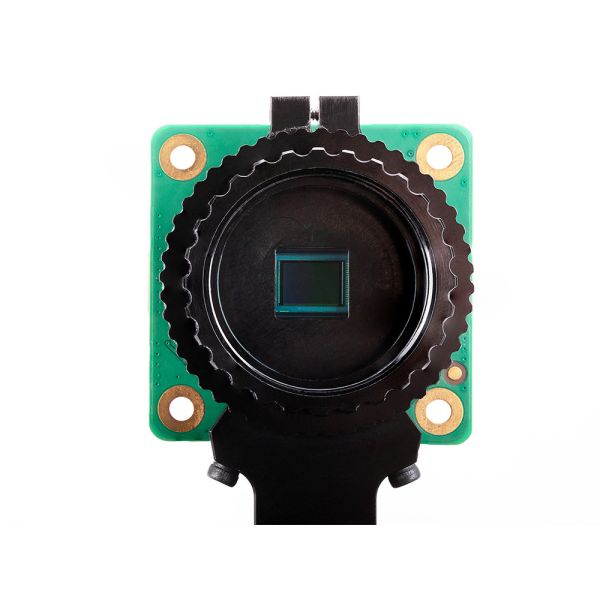

• Sensor: Sony IMX477R stacked back-illuminated sensor, 12.3 megapixels, sensor diagonal 7.9 mm, pixel size 1.55 μm × 55 μm
• Output: RAW12/10/8, COMP8
• Back focus: adjustable (12.5mm–4mm)
• Lens standard: C mount, CS mount
• IR Cut Filter: Integrated (Can be removed to enable IR sensitivity. Modification is irreversible.)
• Ribbon cable length: 200 mm
• Tripod mount: 1/4”-20

Package List

• 1x Raspberry Pi HQ Camera
• 1x Ribbon Cable

Wiki & Documents

• Datasheet
