CrowPanel -ESP32 Display-1.28inch(R) 240*240 Round IPS Display Capacitive Touch SPI Screen
$16.90
Availability:
In stock
SKU
DIS12824D
Brand
ELECROW
Weight
25g
Related Products:
×
Add to cart successfully!
Add to cart successfully!
Customers Who View This Item Also Bought
[Powered by ESP32] 32-bit dual-core chip, clock frequency up to 160 MHz, powerful performance.
[IPS Round Screen] IPS screen and 178°viewing range can enjoy more vivid and realistic images at any angle.
[UART Serial port] With custom buttons, the UART serial port supports power supply and firmware upgrades.

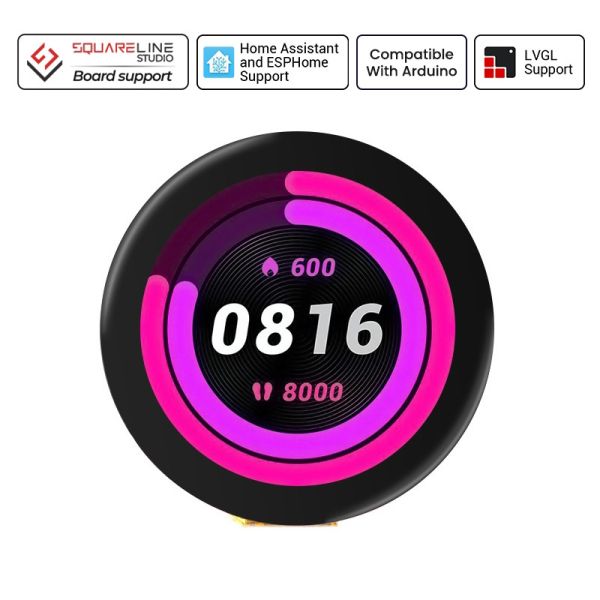

[Wide Compatibility] Supports Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro python, and supports LVGL library.
[❤️What you get] 24H Friendly Customer Service and 1 Year warranty.1x CrowPanel 1.28" (R) display,1x Charging Cable, WiKi Tutorials.
Frequently Bought Together
1.28-inch Round Capacitive Touchscreen with Integrated ESP32-S3
CrowPanel ESP32 Display1.28 inch round screen uses ESP32-C3 as the main control, equipped with a 32-bit dual-core chip, and the highest clock frequency reaches 160 MHz. Supports 2.4G WiFi and BLE low-power Bluetooth, making it suitable for IoT, smart home, and other fields.
This 1.28-inch round screen has a resolution of 240*240, an IPS screen, and a 178° viewing angle, which allows you to enjoy more vivid and realistic images at any angle. It supports capacitive touch and is responsive; it has custom buttons, REST, and BOOST buttons, and the UART serial port can upgrade the firmware. It supports Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro Python, and supports the LVGL library. It can design the UI interface by yourself, which is an ideal platform for DIY projects.
Quick Click to where you are interested: #Feature, #Specification, #Documents, #Review
Designed and manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.
If you want to know the reviewer's feedback, please click here.

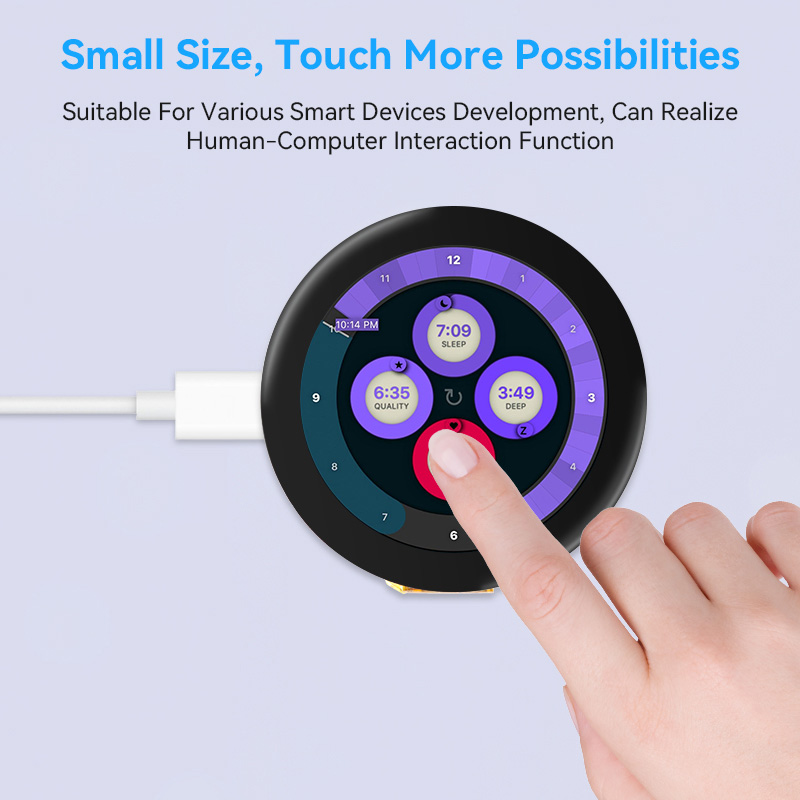

Small Size, Touch More Possibilities

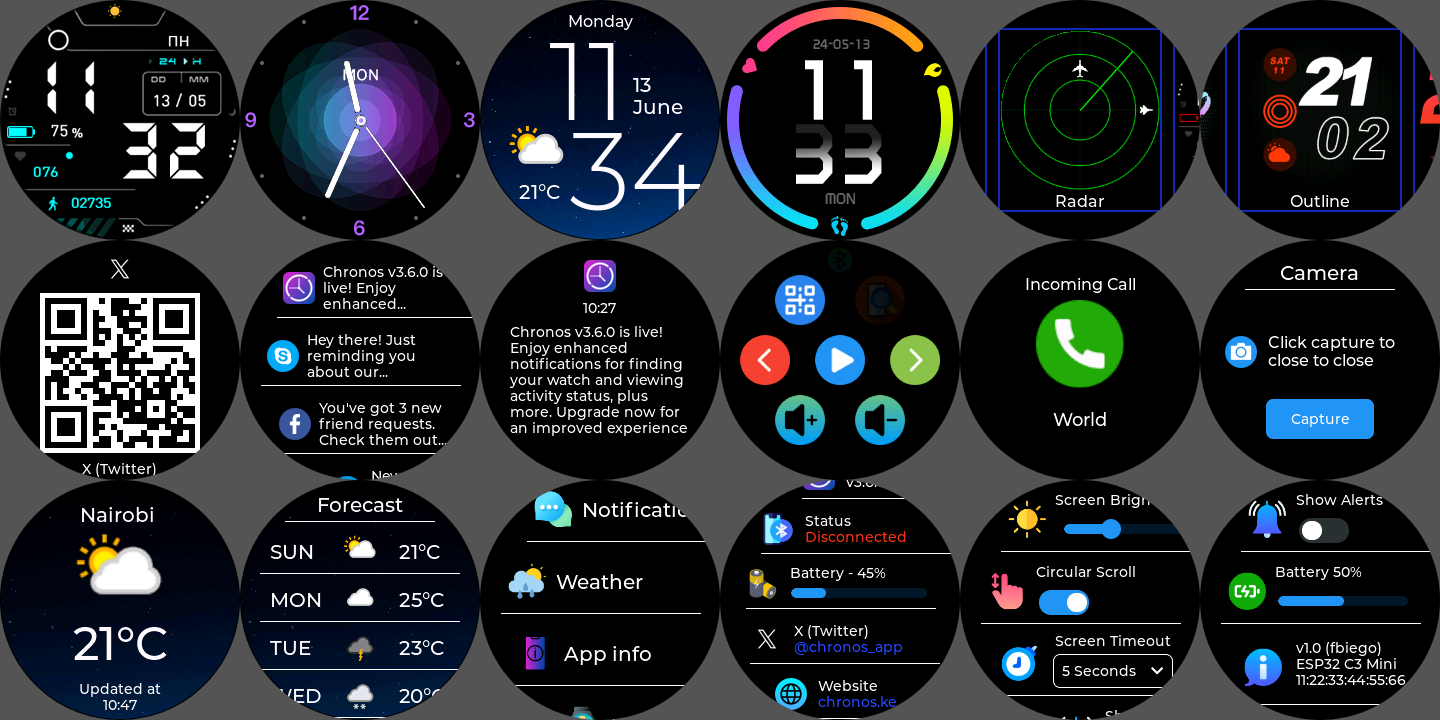

Different UI Demos (Designed By Felix Biego)

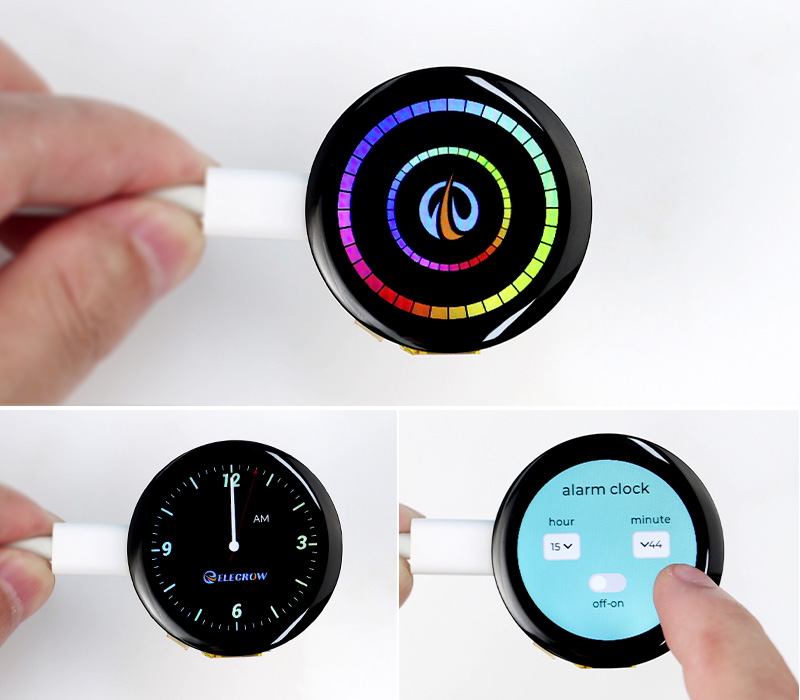

Applications Examples

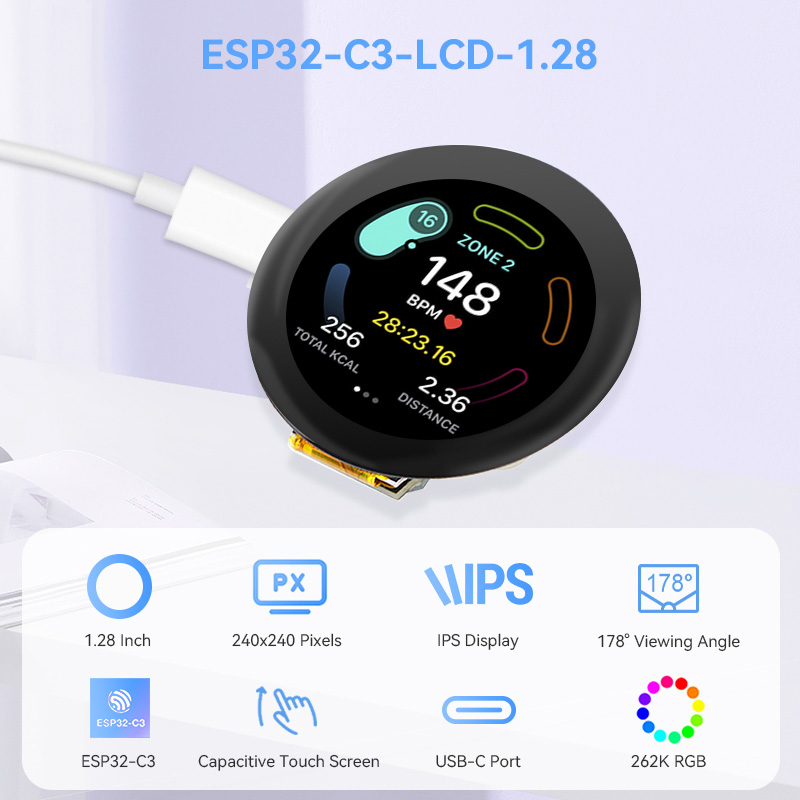

Feature
- ESP32-C3 master control, equipped with a 32-bit dual-core chip, a highest clock frequency reaches 160 MHz.
- IPS screen, 178° visual range, and more vivid images.
- Capacitive touch, fast response.
- With custom buttons and REST and BOOT buttons, the UART serial port supports power supply and firmware upgrades.
- Supports multiple development environments, Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro Python, and supports the LVGL library.

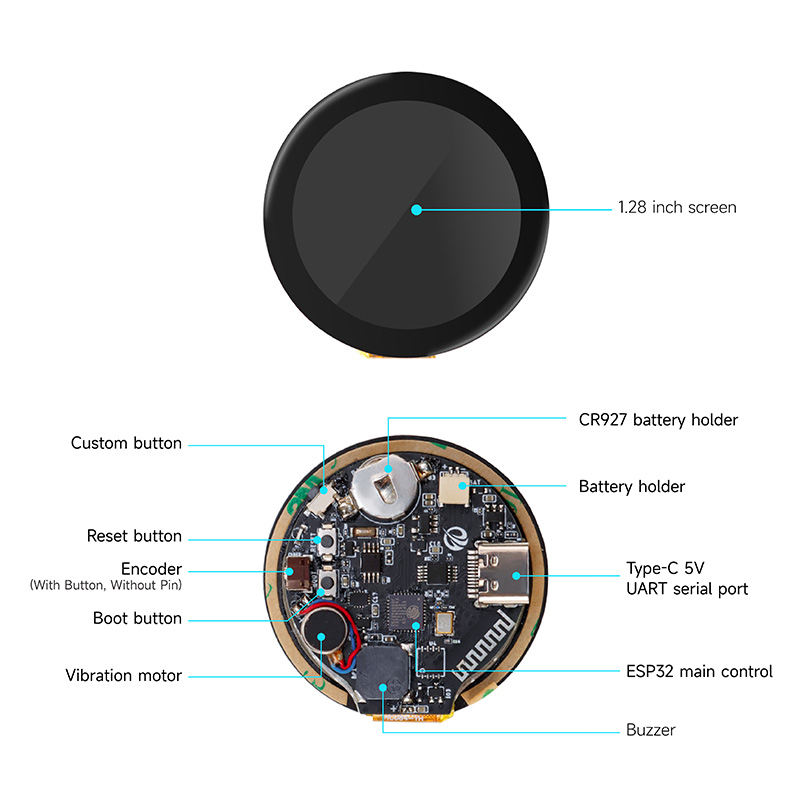

Hardware Overview

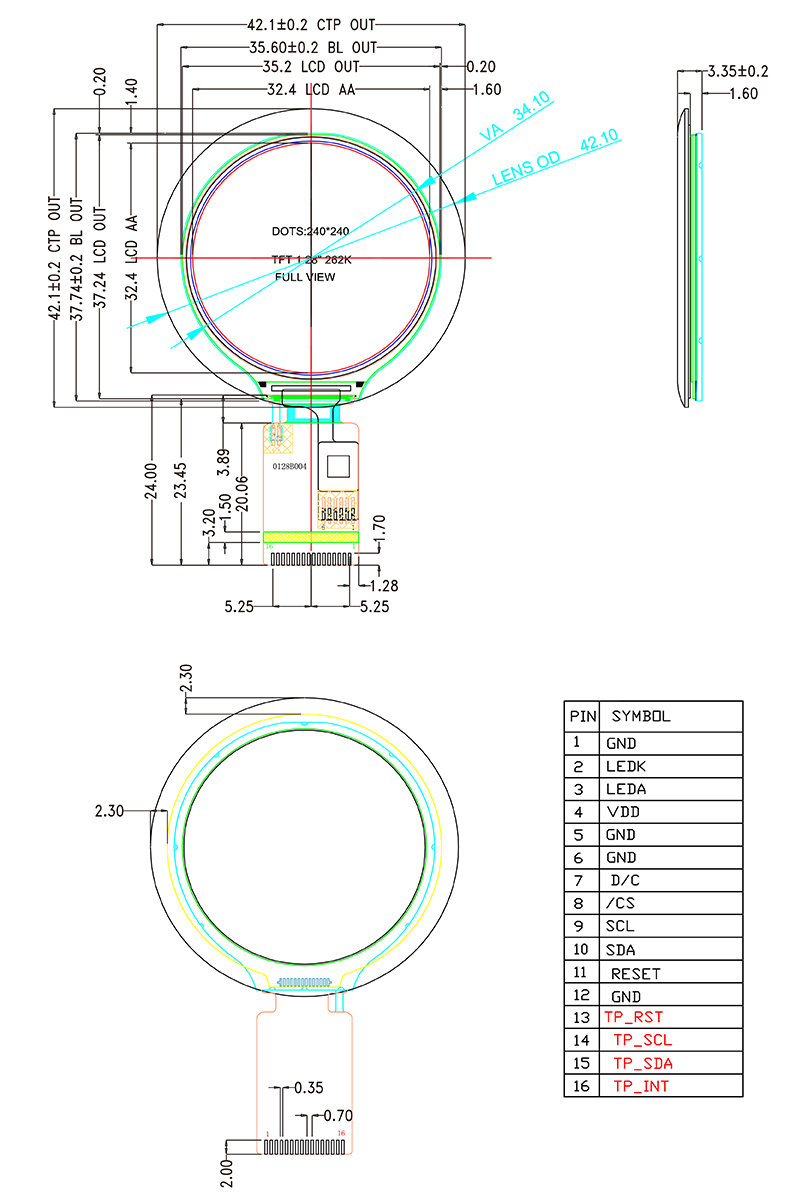

Outline Dimension
Specification
|
Main Chip |
ESP32-C3 |
|
Processor |
32-bit RISC-V single-core processor, up to 160 MHz |
|
Memory |
384 KB ROM 400 KB SRAM (16 KB for cache) 8 KB SRAM in RTC |
|
Size |
1.28 inch |
|
Resolution |
240*240 |
|
Signal Interface |
SPI |
|
Touch Type |
Capacitive Touch |
|
Panel Type |
TFT LCD, IPS Panel |
|
Color Depth |
262K |
|
Brightness |
350 cd/m² |
|
Viewing Angle |
178° |
|
Button |
Rest Butto, Boot Button, Custom Button |
|
Interface |
Type-C Interface, Battery Interface |
|
Encoder |
With Button Function, Without Pin (Pin Size: 0.8mm*0.8mm) |
|
Operation Power |
Module: DC5V Main Chip: 3.3V |
|
Active Area |
32.51*32.51mm |
|
Dimensions |
42*42*9.8mm |
|
Net Weight |
15g |
Package List
- 1x ESP32 Display-1.28 inch Round Display (With Battery)
- 1x USB-A to USB-C Cable
Wiki & External links
- Wiki of CrowPanel 1.28" Round Display
- Specific LVGL UI Designed By Felix Biego
- ESP32-C3 Datasheet
- Post your tech questions in the forum
