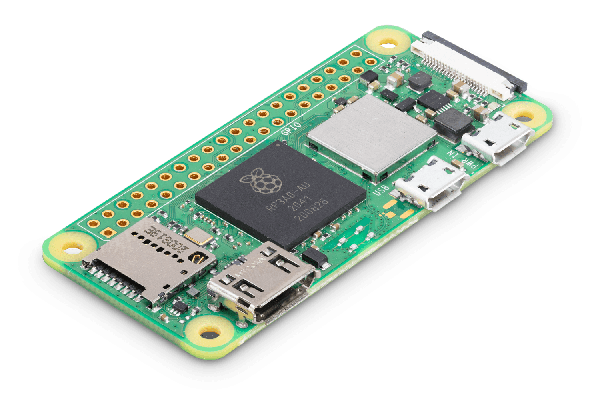

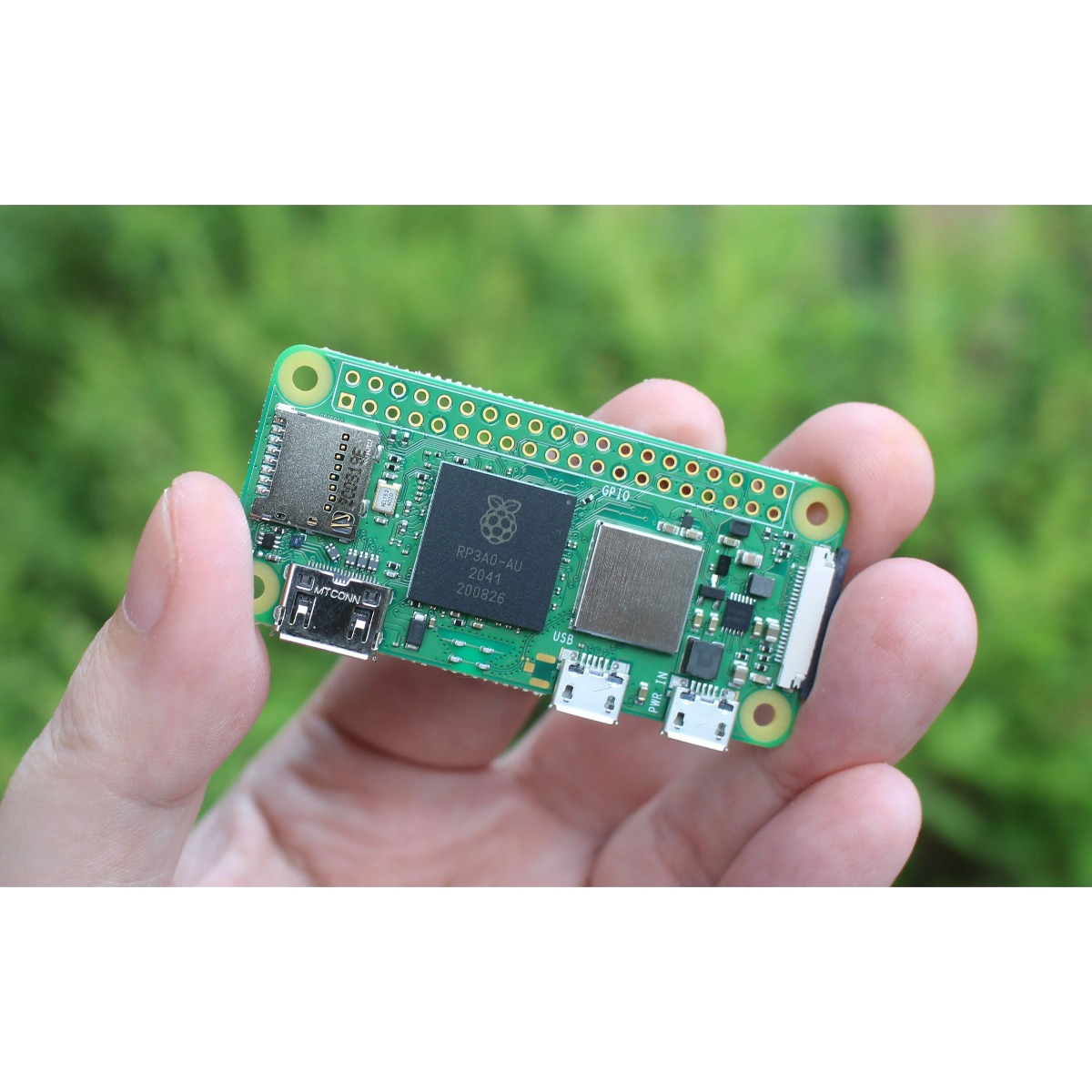

Raspberry Pi Zero 2W

Description

The Raspberry Pi Zero 2 W is the latest iteration in the Pi Zero line that remains as one of the most affordable single-board computers on the market. The successor to the breakthrough Raspberry Pi Zero W, Raspberry Pi Zero 2 W is a form factor–compatible drop-in replacement for the original board.

The board features a quad-core 64-bit Arm Cortex-A53 CPU clocked at 1GHz. At its heart is a Raspberry Pi RP3A0 system-in-package (SiP) integrating a Broadcom BCM2710A1 chip and 512MB of LPDDR2 SDRAM. The upgraded processor provides the Raspberry Pi Zero 2 W with a 40 percent increase in single-threaded performance and a five-fold increase in multi-threaded performance over the original single-core Raspberry Pi Zero. The Raspberry Pi Zero 2 W offers 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth-compatibility 4.2, and supports Bluetooth-compatibility Low Energy (BLE) and modular compliance certification.

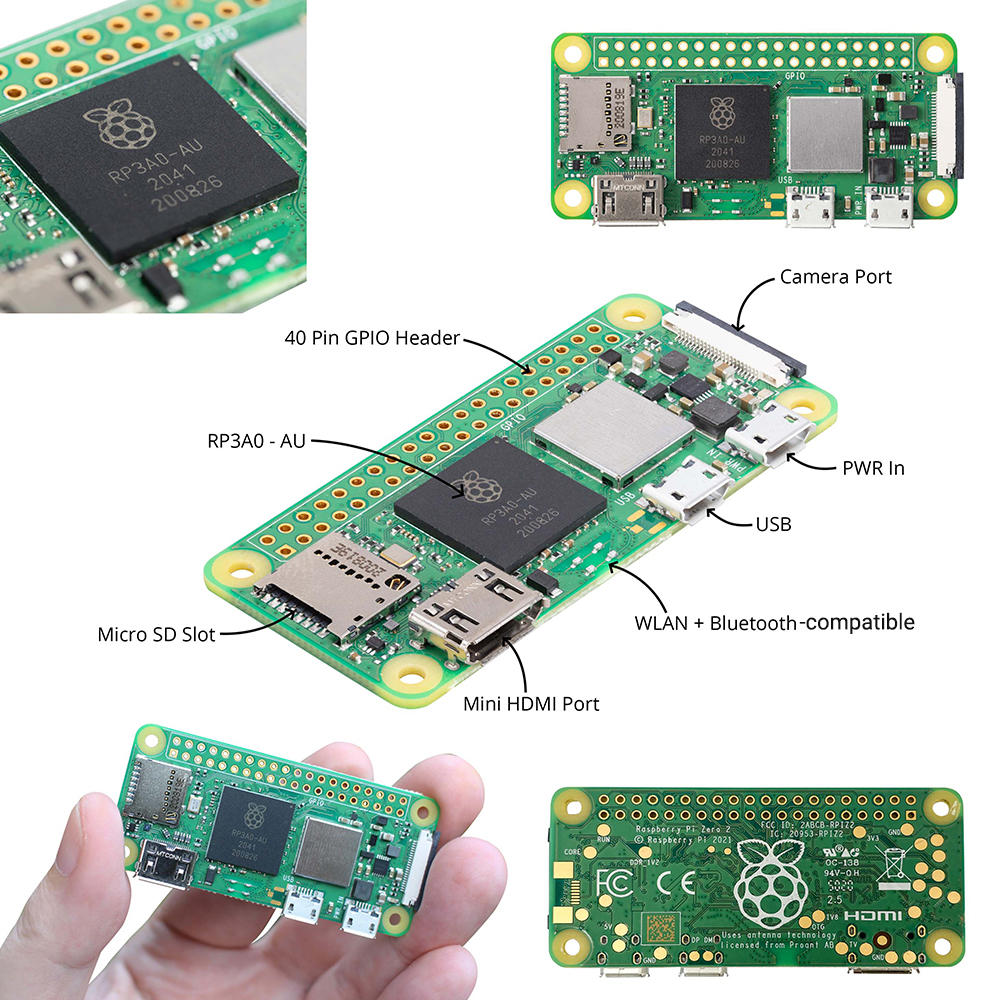

The board features a microSD card slot, a CSI-2 camera connector, a USB On-The-Go (OTG) port, and a dead space for a HAT-compatible 40-pin GPIO header. It is powered via a micro USB socket. Video output is via the mini HDMI port; composite video output is easily provided via test points if desired. The Raspberry Pi Zero 2 W has the same form factor as the original Raspberry Pi Zero and fits in most existing Raspberry Pi Zero cases.

FEATURES

• 1GHz quad-core, 64-bit ARM Cortex-A53 CPU
• VideoCore IV GPU
• 512MB LPDDR2 DRAM
• 802.11b/g/n wireless LAN
• Bluetooth-compatibility 4.2 / Bluetooth-compatibility Low Energy (BLE)
• MicroSD card slot
• Mini HDMI and USB 2.0 OTG ports
• Micro USB power
• HAT-compatible 40-pin header
• Composite video and reset pins via solder test points
• CSI camera connector

Package List

• 1* Raspberry Pi Zero 2w

Wiki & External links

• Getting started guide

• Brief Datasheet
