0.96inch IPS ST7789 Module Round LCD Display

Rating:
100 % of 100
$3.20
Availability: In stock
SKU
DIS96115D
Brand
elecrow
Weight
25g

【0.96inch round display】0.96inch color screen with 240x198 resolution of 65K colors and rich display colors

【IPS panel】IPS full view panel, support visual experience

【Special round appearance】Unique circular display screen suitable for making watches, clocks, or measuring instruments;

【Wide Application】Can be connected to ESP32, Raspberry Pi or Arduino for use.

Description



This 0.96 inch circular display boasts a 240x198 resolution and displays an impressive 65K colors, delivering a rich visual experience with its vibrant IPS wide-viewing angle panel. Connection is streamlined with a 4-wire SPI serial bus, minimizing the need for numerous I/O pins. It seamlessly integrates with both 5V and 3.3V microcontrollers (MCUs) via a convenient on-board level conversion circuit. The unique raised round display is impressive. The 1.25mm pitch socket interface and 2 M2.5 screw holes on the back ensure simple integration and more convenient installation.

For developers and learners, the module supports multiple platforms such as ESP32, STM32, Arduino UNO & Mega2560, C51, CH32 and Raspberry Pi, lowering the development threshold. This accessibility lowers the barrier to entry and makes it ideal for professional projects and personal electronics endeavors. Whether tackling a complex development or pursuing a personal electronics passion, this high-performance display module proves an ideal choice.

0.96 inch TFT LCD round display features

0.96 inch LCD round module front and backside



0.96 inch circular module clcok application

0.96 inch LCD module car gear display application

Feature



  • 0.96inch color screen with 240x198 resolution of 65K colors and rich display colors
  • IPS panel with good visual angle
  • Driven by ST7789, unique raised circular display screen
  • Adopting a 4-wire SPI serial bus to save I/O pins
  • Can be compatible with ESP32/STM32/Arduino UNO&Mage2560/C51/CH32/RaspberryPi



Interface Definition

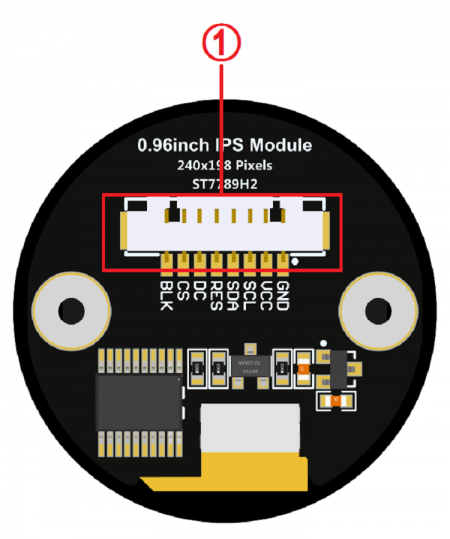

0.96 inch display interface

Interface Function Description

Number

Interface

Function Description

8P slot

1.25mm spacing slot, module signal input pins



Pin Function Description

Number

Pin Label

Description

1

GNDVCC

LCD Power ground

2

VCC

LCD power positive(It is recommended to connect to 5V. When connected to 3.3V, the backlight brightness will be slightly dim)

3

CL

LCD SPI bus clock signal

4

SDA

LCD SPI bus write data signal

5

RES

LCD reset control signal, Low level reset

6

DC

LCD command / data selection control signal

High level: data, low level: command

7

CS

LCD selection control signal, Low level active

8

BLK

LCD backlight control signal (If you need control, please connect the pins. If you don't need control, you can skip it)

 0.96 inch LCD round module outline dimension



Specification



LCD Parameters

Screen Size

0.96inch

Screen Type

IPS

Resolution

240xRGBx198(pixels)

Active Area (AA area)

24.408(W)x20.137(H)(mm)

Number of Colors(Max)

65K

Driver IC

ST7789H2

Display Interface

4-Line SPI

Pixel Size

0.1017(H)x0.1017(V)(mm)

View Angle

ALL 0’CLOCK

Brightness(TYP)

300(cd/m2)

Backlight Type

White LED*2

Operation Temperature

-10~60(℃)

Storage Temperature

-20~70(℃)

Size Parameters

TFT Outline Size

27.4±0.2(W)x27.0±0.2(H)x1.31±0.15(D)(mm)(Excluding adhesive backing)

Module Outline Size

Plate:31.88(W)x31.88(H)x9.65(D)(mm)

Electrical Parameters

Working Voltage

5.0 V/3.3V

Backlight Current

40 mA

Power

0.09 W

Other Parameters

Interface

8P 1.25mm slot interface

Weight(including package)

25g



Package List



  • 1x 0.96 inch IPS Module
  • 1x Cable

Wiki&External Links



Write Your Own Review
You're reviewing:0.96inch IPS ST7789 Module Round LCD Display
