1.3 inch 240x240 IPS TFT LCD 7Pin SPI Display Module for ESP32/Arduino

Rating:
87 % of 100
$6.20
Availability: In stock
SKU
DIS13268P
Brand
ELECROW
Weight
20g

【1.3-inch IPS screen】IPS full-viewing angle LCD panel with a resolution of 240(RGB)x240.

【Driver IC】The driver IC is ST7789, using a universal 7-pin SPI interface.

【SD Card Slot】There is an SD card slot at the bottom, which can easily load full-color bitmaps in FAT16/FAT32 format from MicroSD cards

【Supports Multiple MCUs】Supports ESP32/ESP8266/Arduino/STM32 and other main control MCUs.

Description

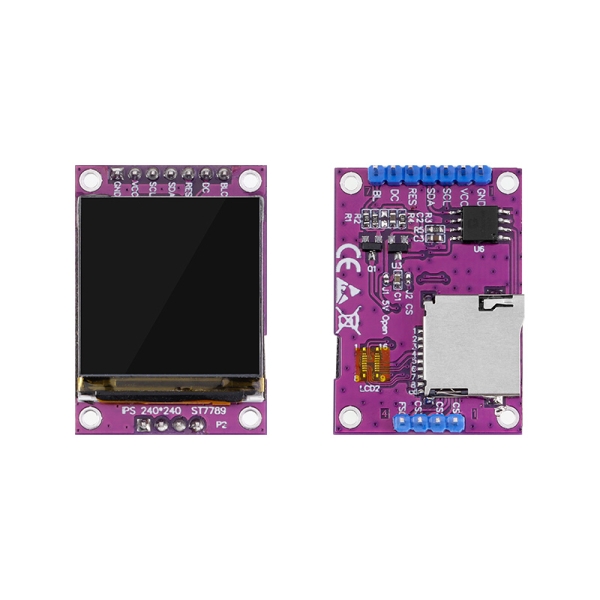

This is a 1.3 inch display screen with a resolution of 240 (RGB) x240. It is an IPS full view LCD display panel so the color looks great in any direction. The drive IC is ST7789, and the universal 7-pin SPI interface is used.

The bottom has an SD card slot, which makes it easy to load full-color bitmaps from the MicroSD card in FAT16/FAT32 format.

Support the main control MCU such as ESP32/ESP8266/Arduino/STM32.

 1.3 inch display dimension size

Specification

  • 1.3 inch TFT LCD Display
  • Built-in microSD slot
  • Operating Voltage: 3.3V
  • Backlight: 2-Chip white LED, Vf=3.2V(If=20mA)
  • Resolution: 240 (RGB) x240
  • Interface: SPI serial
  • Drive IC: ST7789
  • Operating Temperature: -20℃~+70℃
  • Storage Temperature: -30℃~+80℃
  • Dimension: 35.8mm x 35.8mm x 5.3mm
  • Weight: 7.6g

Pin Description

No.

Symbol

Description

01

GND

GND

02

VCC

Power Supply

3.3V: U3 disconnected, J1 short circuited

5V: U3 welding, J1 disconnected

03

SCL

SPI Clock Signal

04

SDA

SPI Data Signal

05

RESET

Reset Control Signal

06

A0

Data/Command Selection Pin

0: Command

1: Data

07

BL

Backlight Control Pin

High level: enable backlight

Low level: disable backlight



No.

Symbol

Description

01

CS1

LCD Chip Selection Pin

J2 is short circuited to ground: not in use

J2 is disconnected: in use

02

CS2

Character Library Chip Selection Pin

03

CS3

SD Card Selection Pin

04

FSD

Character Library Chip and SD Card Data Output Pin



Package List

  • 1x 1.3 inch TFT LCD Display
